IC107L6Cxx - ICC, CAT 6 Module, RJ45, EZ 25 PK

IC107L6Cxx - ICC, CAT 6 Module, RJ45, EZ 25 PK

Item#:
IC107L6CBL
List Price: $83.15
$75.14
(You save $8.01 )
UPC:
633758022095
Weight:
0.39 LBS
Customer Service

Need Help?

Speak to one of our experts.

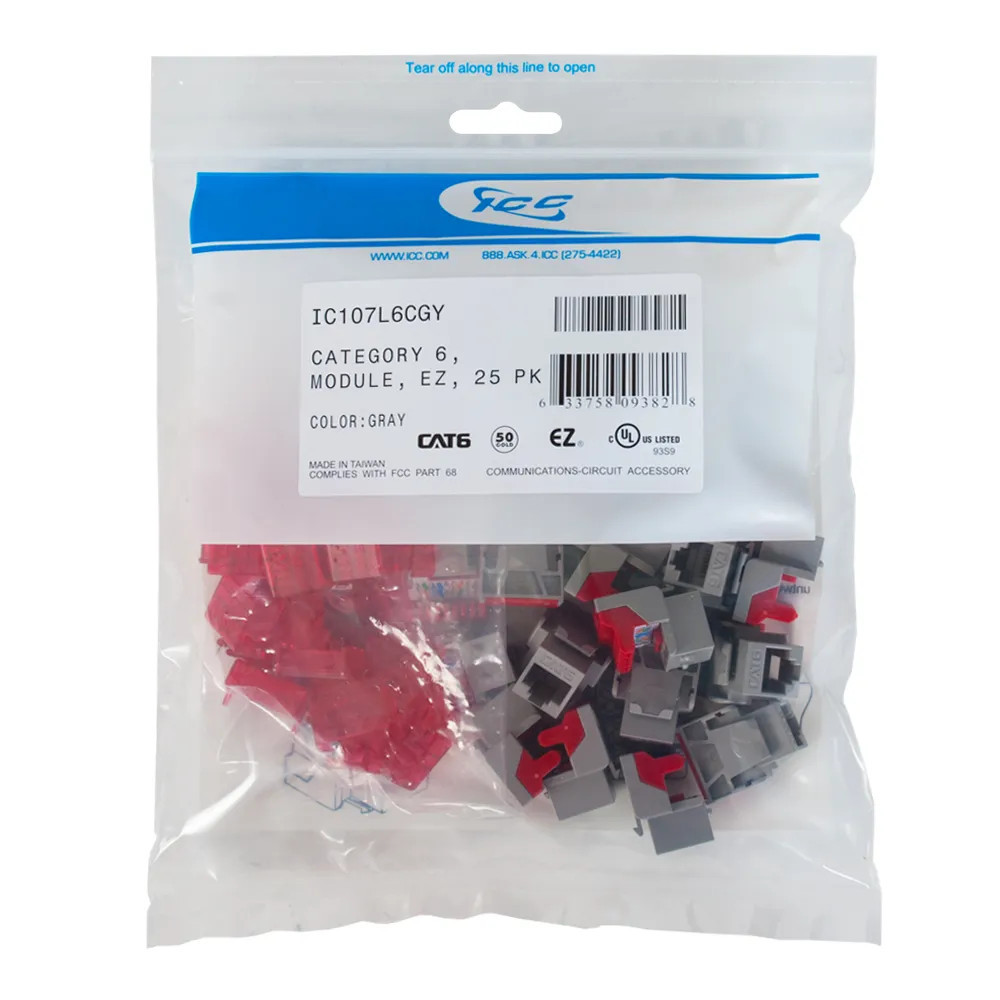

IC107L6CGY - ICC, CAT 6 Module, RJ45, EZ 25 PK

IC107L6Cxx - ICC, CAT 6 Module, RJ45, EZ 25 PK

List Price: $83.15
$75.14
(You save $8.01 )

IC107L6Cxx - ICC, CAT 6 Module, RJ45, EZ 25 PK

List Price: $83.15
$75.14
(You save $8.01 )

The 25-pack Category 6 modular jacks, RJ-45 keystone jacks, are 8-position 8-conductor (8P8C) and are packaged in bags with a reseal able strip allowing the bags to be reused multiple times preventing loss or mixing of colors or types of connectors. The bags have a clear lower area allowing for easy part identification.

Product Features

  • CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
  • PCB technology provides maximum performance and superior signal quality
  • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
  • Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
  • Designed with in-line 110 IDC, in-sequence termination reducing termination time
  • Terminate with 110 punch down tool ICACSPDT00
  • One piece termination cap allows for a quick and easy termination
  • Includes an integrated TIA-568A/B color wiring diagram
  • Backwards compatible to all lower rated category components
  • Compatible with all ICC configurable faceplates, inserts, surface mount boxes, and blank patch panels
  • Compatible with all ICC furniture faceplates, Elite bezels, and Elite surface mount boxes
  • Used with all Category 6 patch cords
  • Available in blue, green, ivory, white, and yellow
  • Installation instructions included
  • UL listed

Specifications

CAT 6 Module:

  • Electrical:
    • Current rating: 1.5 amps
    • Insulation resistance: 500 mohms min.
    • Contact resistance: 20 mohms max.
    • DC resistance: 0.1 ohm max.
    • Transmission performance exceeds Category 6 connecting hardware requirements specified in TIA/EIA-568-B.2-1 when used with compatible horizontal cable
  • Mechanical:
    • Plug insertion life: 750 cycles min.
    • Plug and jack contact force: 100 grams min. using FCC approved plug
    • Plug retention force: 30 lbs min.
    • Temperature: -40o to 150o F (-40o to 68o C)
  • Physicals:
    • Housing: ABS, UL 94V-0
    • Jack wiring: 50 micro inches of gold over 100 inches of nickel
    • Connector: insulation displacement connector (IDC); accepts 23~24 AWG solid wire
  • Colors: XX:
    • BL-Blue, GN-Green, IV-Ivory, WH-White, YL-Yellow
Termination cap:
  • Material: PC, UL 94V-0
  • Color: Clear
