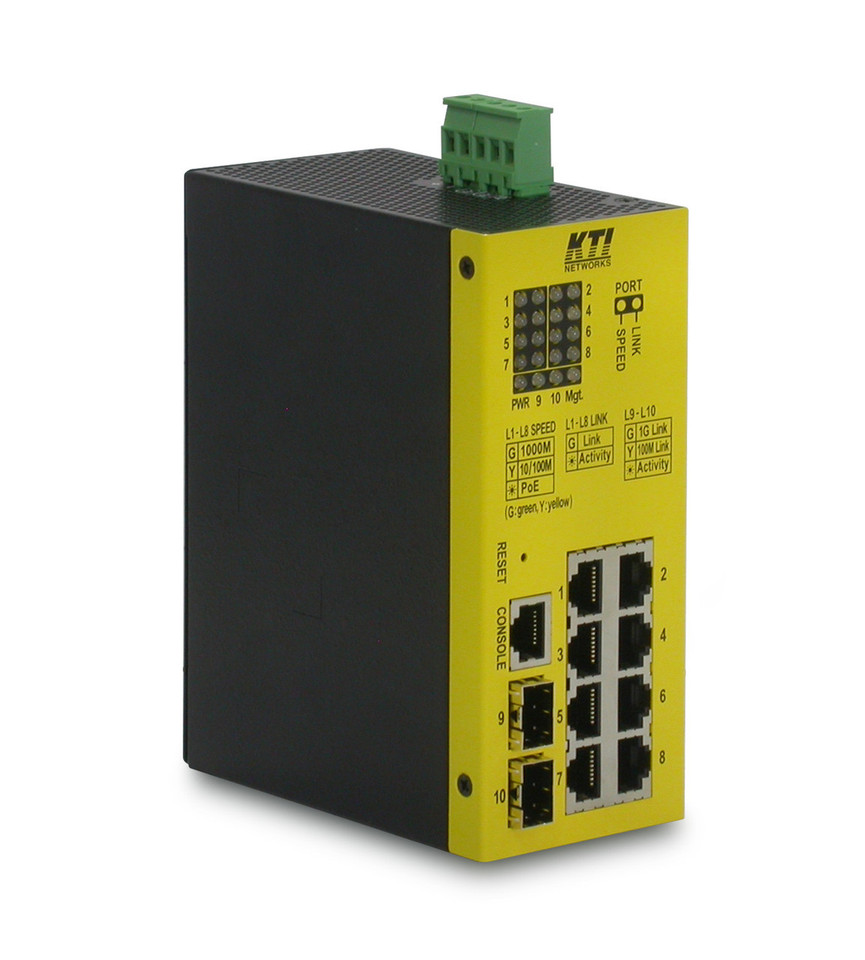

Industrial Managed 10-Port L2 Gigabit Ethernet Switches with 2 dual-speed SFP Slots and 4 PoE+ PSE Ports

• The KGS-1064-HP is an 10-ports industrial managed Gigabit Ethernet switch which is featured with the following communication ports:
• Eight 10/100/1000Mbps Gigabit copper ports with PoE function
• Two dual-speed SFP slots for 100Base-FX 1000Base-X
• One RS-232 console port

Product highlights :

• Eight 10/100/1000Mbps RJ-45 and two dual-speed SFP slots
• All copper ports support auto-negotiation and auto-MDI/MDI-X detection
• All copper ports are equipped with 802.3at-compliant PoE PSE
• Two SFP slots support dual speed for 100BASE-FX and 1000BASE-X SFP transceivers
• Full wire speed forwarding
• Supports 802.3x flow control for full-duplex and backpressure for half-duplex
• Supports SFP with Digital Diagnostic Monitoring (DDM)
• Provides PoE PSE redundancy function
• Provides fiber optical power alarm function
• Provides Automatic Laser Shutdown function
• Powered via typical industrial power voltage DC 12V-30V
• Web, telnet, SNMP managed
• IPv6 support
• SFP dual speed support
• RSTP, STP, MSTP support
• Multi redundant ring support
• IGMP & MLD snooping

Network ports :

• 8 10/100/1000Mbps Gigabit copper ports
• 2 1G/100Mbps SFP slots

Power :

• DC Power Input :  Flange terminal block: 2 pairs of +/- contacts
                            Operating voltage range: +12 ~ +30VDC

Power Consumption :

• 14W max. @24V (Full load with no PoE support)
• 113W max. @24V (with PoE function)

Dimension :

• 60 x 106 x 140 mm (WxDxH)
