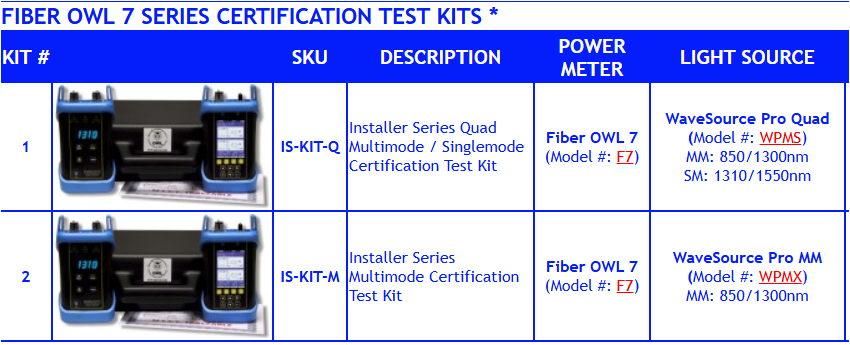

Installer Series Certification Test Kits
The Installer Series Certification Test Kits contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification.
Each Installer Series test kit comes with a N.I.S.T. Traceable Fiber OWL 7 optical power meter and a WaveSource Pro fiber optic light source, based upon fiber type and wavelength.
Included with each test kit are a hard-shell carrying case, protective rubber boots, certificate of NIST-traceability, USB battery chargers and cables, and a USB flash drive with free OWLView software and operation manual.
Fiber OWL 7 optical power meters come standard with a state-of-the-art UNIVERSAL adapter port system.
Two adapter cap options are available, based on the two most common ferrule diameters used in the fiber optics industry:
2.5mm: ST, SC, and FC
1.25mm: LC, MU, and other SFF connectors
Installer Series Quad Multimode / Singlemode Certification Test Kit

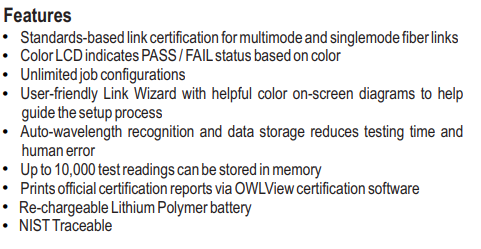

The Installer Series Quad MM/SM Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification. Comes with:

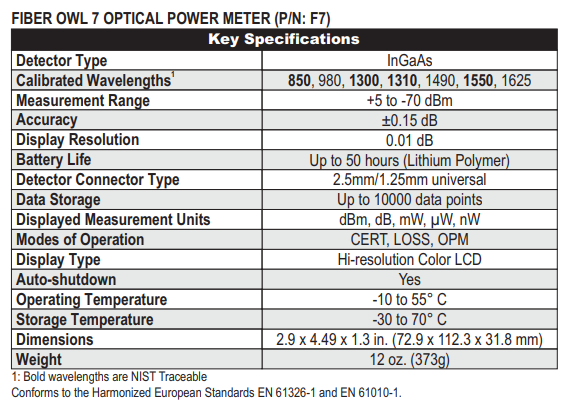

The Fiber OWL 7 (p/n: F7) optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard with color diagrams to guide the setup process, calculate the link budget, and set the optical reference. Up to 10000 fiber runs may be stored in internal memory, and can be downloaded to a PC for report generation with OWLView software. Intelligent automated testing functions include automatic dual wavelength storage and auto-wavelength recognition which reduce testing time and human error. The universal detector port on the F7 comes with 2 adapter caps,
one for 2.5mm connectors such as SC, ST, and FC, and the other for 1.25mm connectors such as LC.

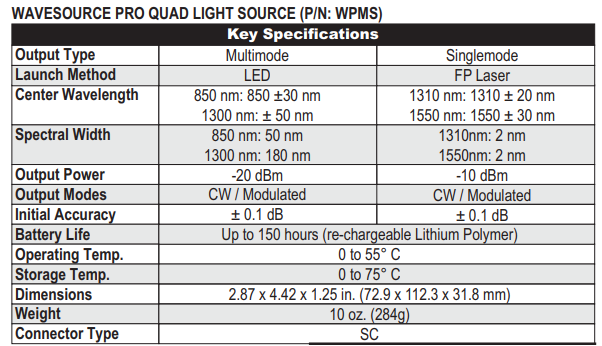

The WaveSource Pro Quad (p/n: WPMS) fiber optic light source is designed for accurate testing and certification of multimode (850nm & 1300nm) and singlemode (1310nm & 1550nm) networks. Its dual wavelength outputs are temperature-stabilized for accurate measurements.
The WPMS has a built-in auto-wavelength switching protocol designed to synchronize the wavelength of the F7 with the current output wavelength. The light source comes configured with SC connector ports.
Installer Series Multimode Certification Test Kit

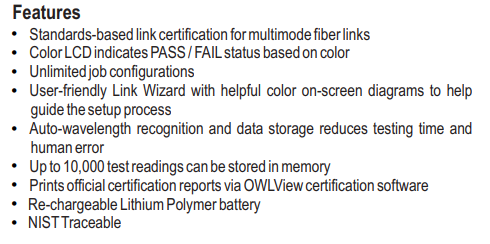

The Installer Series Multimode Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in multimode networks, commonly referred to in the industry as Tier 1 certification.
Comes with:

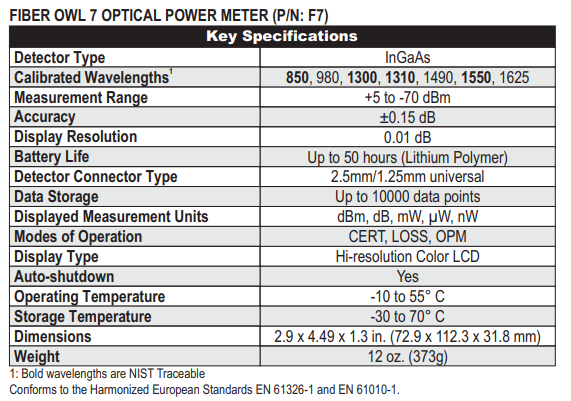

The Fiber OWL 7 (p/n: F7) optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard with color diagrams to guide the setup process, calculate the link budget, and set the optical reference. Up to 10,000 fiber runs may be stored in internal memory, and can be downloaded to a PC for report generation with OWLView software. Intelligent automated testing functions include automatic dual wavelength storage and auto-wavelength recognition which reduce testing time and human error. The universal detector port on the F7 comes with 2 adapter caps,
one for 2.5mm connectors such as SC, ST, and FC, and the other for 1.25mm connectors such as LC.

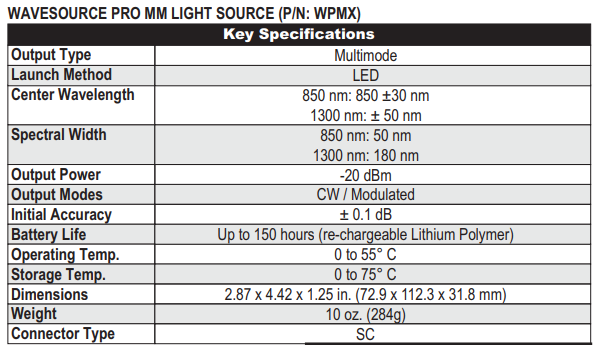

The WaveSource Pro MM (p/n: WPMX) fiber optic light source is designed for accurate testing and certification of multimode (850nm & 1300nm) networks. Its dual-wavelength outputs are temperaturestabilized for accurate measurements. The WPMX has a built-in auto-wavelength switching protocol designed to synchronize the wavelength of the F7 with the current output wavelength. The light source comes configured with SC connector ports.
