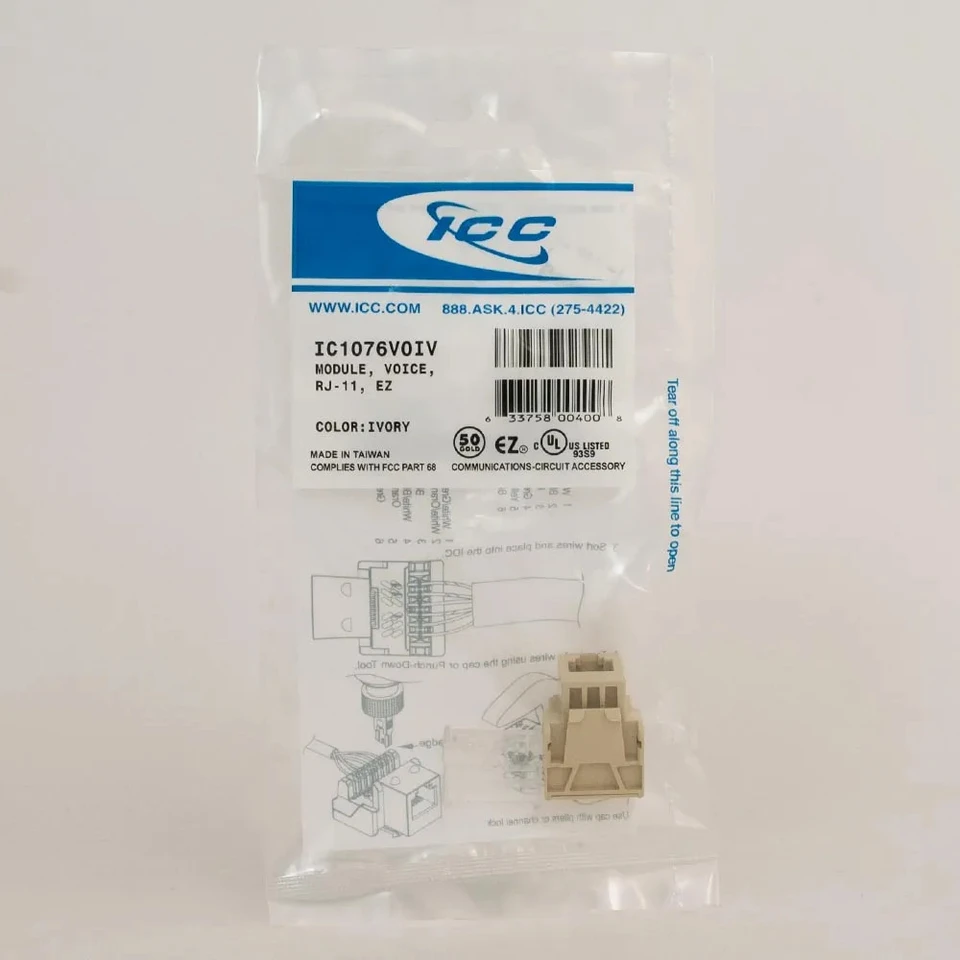

Voice RJ11 Keystone Jack for EZ® Style

Description

The EZ voice modular jacks, RJ-11 keystone jacks 6-position 6-conductor (6P6C), is designed for business system applications. The modular jacks utilize IDC termination, accepts 22-24 AWG solid wire. Termination can be done using 110 punch down tool, or by using the Jackeasy termination tool for fast and easy termination. For use with applications: Apple Talk, Voice, and Arcnet. Compatible with RJ11/14 and 25 keystone jacks and plugs.

Product Features

Features:

• Designed for all voice connectivity applications.
• Lead frame technology provides maximum performance.
• Terminate with 110 punch down tool.
• Includes an integrated USOC/UTP color wiring diagram.
• Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
• Works with all telephone line cords.
• Installation instructions included.
• UL listed.

Colors:

• XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, WH-White, YL-Yellow

Termination Cap:

• Material: PC, UL 94V-0
• Color: Light Gray
• Designed for all voice connectivity applications
• Lead frame technology provides maximum performance and superior signal quality
• Engineered to provide 110 IDC termination reducing installation time

Specifications

RJ-11 Voice Module:

Electrical:

• Current rating: 1.5 amps max.
• Voltage rating: 150 volts alternating
• Dielectric withstanding voltage: 1000 volts rms, 60Hz
• Insulation resistance: >10 mohms

Mechanical:

• Mated force: 5 lbs max.
• Unmated force: 5 lbs max.
• Plug retention force: 20 lbs min.
• Durability: 750 cycles

Physicals:

• Housing: ABS, UL 94V-0
• Contact: Phosphor bronze gold plating over 100 inches of nickel
• Gold plating: 1.27 micron/50 micro inch min.
• Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wire
