Small Single Mode & Multimode Testing Kit KI-TK076
Typical applications
Single mode & multimode testing kit with an optical power meter and light source for low to medium test volume on SM and MM systems.
- Power at 24 calibrated wavelengths, -60 to +15 dBm range.
- Loss on SM fiber 1310 / 1550 nm, 60 dB range.
- Loss on MM fiber 850 / 1300 nm, 40 dB (@ 62.5um) range, EF compliant.
- Loss testing automation & reporting with AutoTest and KITS™ software.
- 12 fiber Multi-Fiber ID continuity / tone, 50 dB range.
- Generally meets safety regulations & standards based test procedures.
Connector & battery summary
This kit has SC connectors, the power meter also accepts APC polish connectors.
Source and meter use 2 x AA batteries with selectable re-charging via micro USB port. Minimum run time is 80 hours for the source.
We gladly adjust kits to meet your exact needs.
Additional:
interchangeable connector adapters
general test leads
cleaning materials
*EAR99 restricted product
Kit contents
Optical light sources
KI2824
- Versatile productivity source
- Quad source for SM & MM testing
- ISO 17025 traceable
KI2824 accessories:
- Mandrel Wrap Filters, 50 & 62.5 um OPT701
- SC Through Connector OPT046
- Wrist Strap / Lanyard for KI Products
- USB Cable (Micro)
- Instrument User Manual
- Quality Assurance Certificate
- Calibration Certificate ILAC/NATA Compliant

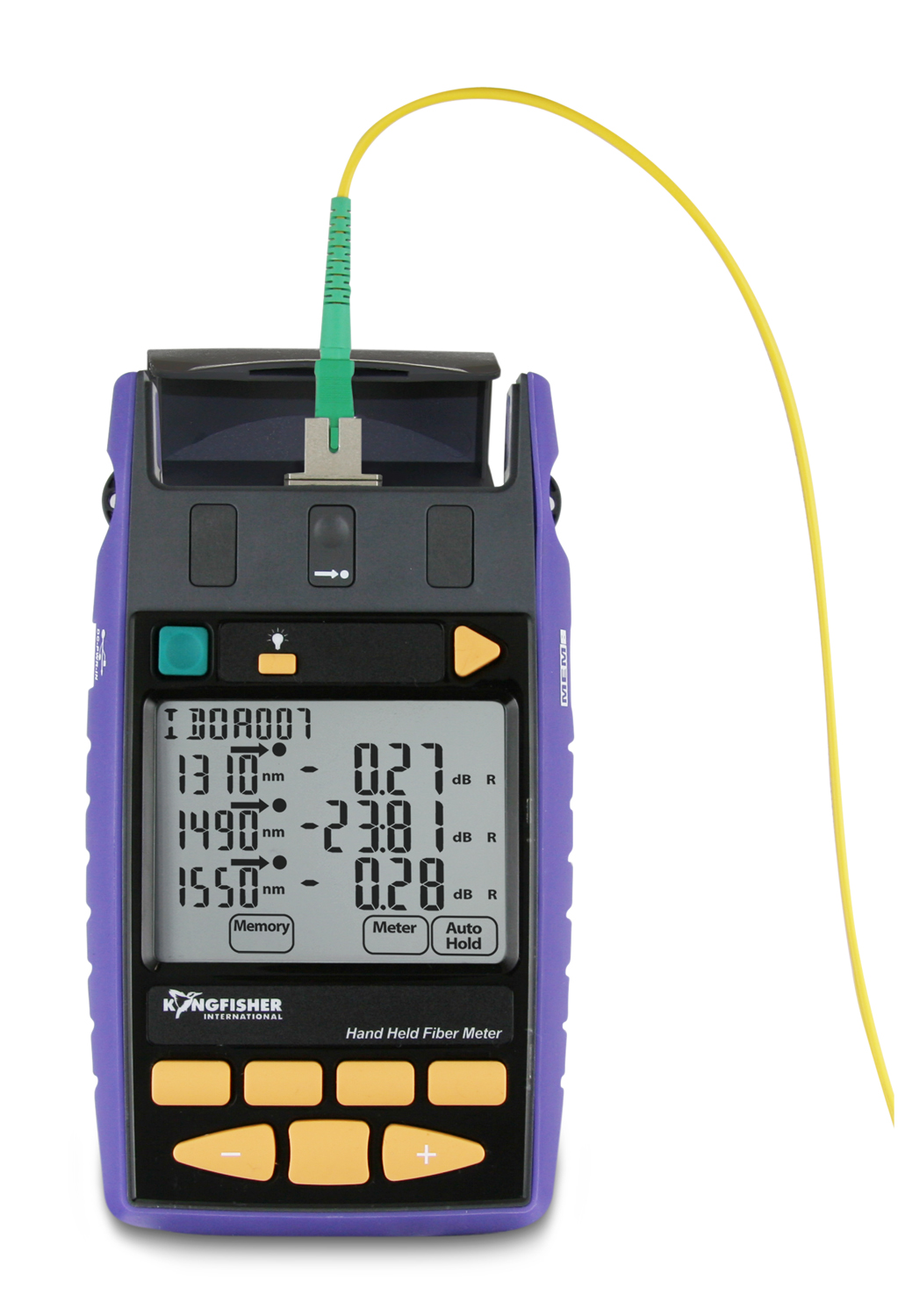

Optical power meters
KI2600-GE
- Productivity power meter
- Ge detector for SM & MM testing
- Ideal for cable installers
- Powerful reporting capability
KI2600-GE accessories:
- SC Through Connector OPT046
- USB Cable (Micro)
- Wrist Strap / Lanyard for KI Products
- Software (KITS)
- Instrument User Manual
- Quality Assurance Certificate
- Calibration Certificate ILAC/NATA Compliant
Accessories
OPT149
- Pocket padded pouch, splash resistant cloth outer covering with zipper, carry strap.
- Accommodates any two KI2000 style instruments.
- Space for additional (not supplied): batteries, connector adaptors, additional documentation.
