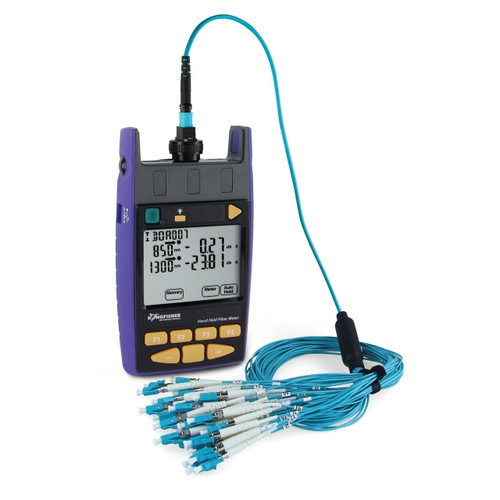

The KI 9600XL-Ge7 Power Meter is a simple and reliable optical power meter with a 7 x 3 mm Ge detector for testing power and loss on all MPO styles eg 16 -32 fiber, 12 to 72 fiber, SM & MM, and other connector styles, also general single mode and multimode fiber optic systems up to +10 dBm. It provides high accuracy and simplicity of use.
KI9600XL-GE5 specifications
|
Detector type |
GE (7 mm) |
|
Response wavelength |
600 ~ 1650 nm |
|
Calibration wavelengths |
635, 650, 660, 780, 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm |
|
Power range |
+10 ~ -30 dBm (for 635,650,660,780,1610,1625 nm) / +10 ~ -40 dBm (for 850,1300,1310,1390,1490,1550 nm) |
|
Mid-range linearity |
0.06 dB (typical) |
|
Total uncertainty |
0.5 dB (max) |
|
Wavelength sensitivity (± 30 nm) |
0.04 dB (typical) |
|
Response uniformity across detector |
2 % (0.09 dB) |
|
ID tone detection sensitivity |
-37 dBm |
General KI 9600A Pocket Power Meter specifications
|
Accuracy |
±2 % |
|
Calibration validity |
3 Years (ISO17025) |
|
Resolution |
0.01 dB |
|
Polarization sensitivity |
< 0.05 dB (typical) |
|
Tone detection |
200 ~ 2500 Hz ± 2 % |
|
Power |
2 x AAA (LR-03) Alkaline |
|
Battery life |
300 Hours |
|
Auto-off |
Selectable |
|
Size |
124 x 81 x 25 mm |
|
Unit weight |
0.15 kg |
|
Shipping weight |
0.5 kg |
|
Operating / storage temperatures |
-15 to 55 / -25 to 70 °C |
|
Relative humidity |
0 ~ 95 % |
|
Warranty |
3 Years |
