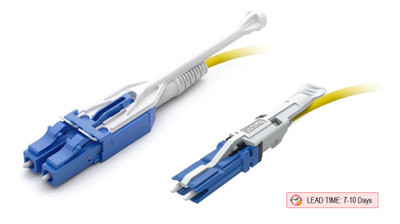

891818OS2DXXXMR2 - TAA Compliant Fiber Patch Cable, LC-LC, UPC, Singlemode 9/125 Micron OS2 Fiber, Senko Uniboot & 3 sets of Pull Tabs (44mm, 64mm, 84mm)2.0mm OFNR Rated

Item#:
891818OS2D001MR2
Bulk Pricing:
  • Buy 10 - 49 and get 3% off
  • Buy 50 - 99 and get 5% off
  • Buy 100 - 199 and get 10% off
  • Buy 200 or above and get 12% off

Weight:

0.15 LBS

$14.78
Customer Service
Need Help?

Speak to one of our experts.

Inspection DataThe LightWave Senko Uniboot LC-LC Uni-boot Singlemode OS2 Fiber Optic Patch Cable is a perfect combination of high performance, low data loss and cost efficiency. Now featuring a rigid Push-Pull Tab that allows for connector insertion as well as diconnect. When it comes to telecommunications applications, this is a cable that can easily match the demands of your business and budget.

Technical Drawing - LC to LC Fiber Optic Patch Cable

The LC-LC fiber optic cable features a UPC polish and can send data over a 9/125 micron glass fiber 1Gbps link a distance of up to 10,000 meters at a wavelength of 1310nm. For a 10Gbps link, you can transfer data a distance of up to 5,000 meters at a 1310nm wavelength or up to 30,000 meters at a 1550nm wavelength.

Inspection DataThis LC-LC singlemode cable, along with all other LightWave brand fiber patch cables, is assembled to meet and exceed industry performance standards, and each product is individually tested to make sure you receive the highest possible quality, and those test results will be included with your cable.

Product Specification:

Connector Side A
LC/UPC Uiboot Connector Side B
LC/UPC Uniboot
Ferrule Type Side A
1.25mm Ferrule Type Side B
1.25mm
Insertion Loss Maximum Side A
≤0.20dB Insertion Loss Maximum Side B
≤0.20dB
Insertion Loss Typical
0.08dB Insertion Loss Typical
0.08dB
Return Loss ≥60dB Return Loss ≥60dB
===============
==================== ==================
==================
Cable Type
OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 2 Fiber Grade G.657.A1 (Compatible with G.652.D)
Polarity Flipped (Type C) Cable Outer Diameter 2.0mm Simplex
Cable Jacket OFNR Riser Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
Wavelength
1 Gb Distance Max.
Wavelength
10 Gb Distance Max.
1310nm > 25,000 Meters 1310nm 10,000 - 25,000 Meters
1550nm > 40,000 Meters 1550nm 40,000 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)

Features

  • LC Uniboot Push-Pull Tab
  • Excellent for High Density Data Center appications
  • Singlemode OS2 9/125 micron glass
  • Easy disengagement in dense spaces
  • 2.0mm Simplex assembly
  • UPC Finish
