Loopback, CS Connector, MM, OM3, UPC Polish, (0 dB to 10dB)

List Price: $49.80

$45.00

(You save $4.80 )

Description
Downloads
Video

Description

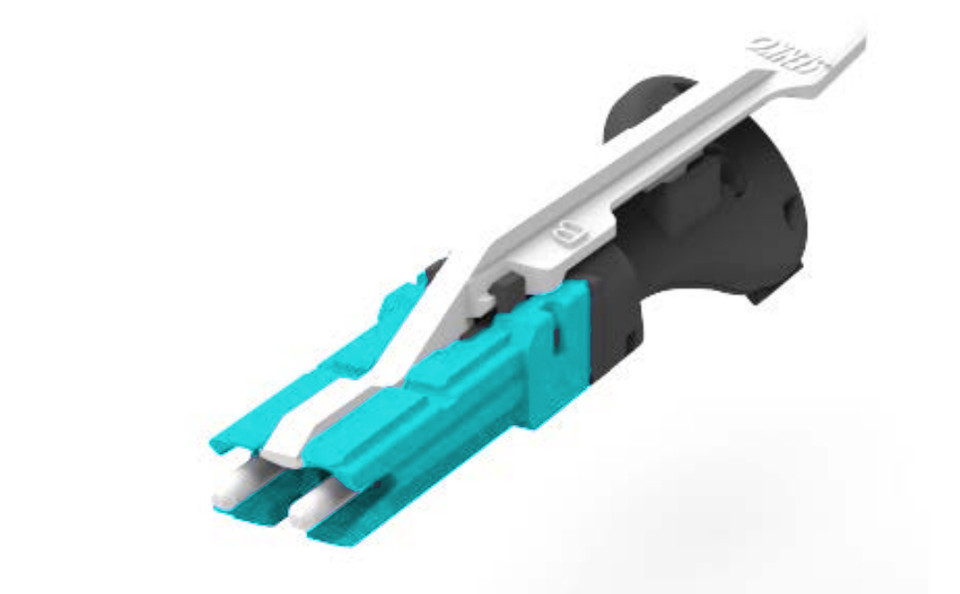

Loopback, CS Connector, MM OM3, UPC Polish, (0 dB to 10dB)

SENKO’S CS® Loopback is designed to provide a media of return patch for a fiber optic signal. Commonly used for burn-in testing and network troubleshooting, the high density push-pull tab design will fit into may applications.

High Density Design
UPC and APC polish
Attenuation levels from 1-10dB
Push-Pull tab for easy installation

Part Number	Attenuation Level	Attenuation Range
LPB-CS-OM3-00	0 dB	-0/+0.5 dB
LPB-CS-OM3-03	3 dB	+/- 0.5 dB
LPB-CS-OM3-05	5 dB	+/- 0.5 dB
LPB-CS-OM3-06	6 dB	+/- 1 dB
LPB-CS-OM3-07	7 dB	+/- 1 dB
LPB-CS-OM3-08	8 dB	+/- 1 dB
LPB-CS-OM3-09	9 dB	+/- 1 dB
LPB-CS-OM3-10	10 dB	+/- 1 dB
