Low Loss MTP Cassette, 12 Fiber, SC to Male MTP, Multimode OM3

Our Low Loss Multimode 50/125 OM3 MTP® Optical Cassette delivers reliable, high-performance connectivity with a maximum insertion loss of just 0.35 dB. This ensures compliance with the strict power budgets required in modern networks, especially for 10 Gigabit applications.

Each cassette comes pre-terminated and pre-tested, with fiber adapter panels and harnesses fully loaded for quick, hassle-free installation. It easily snaps into our standard WAC and RAC fiber enclosures—three cassettes fit into a RAC-1X, providing up to 72 active LC connections while minimizing clutter by using only three to six MTP® brand cables.

Cassette Construction:

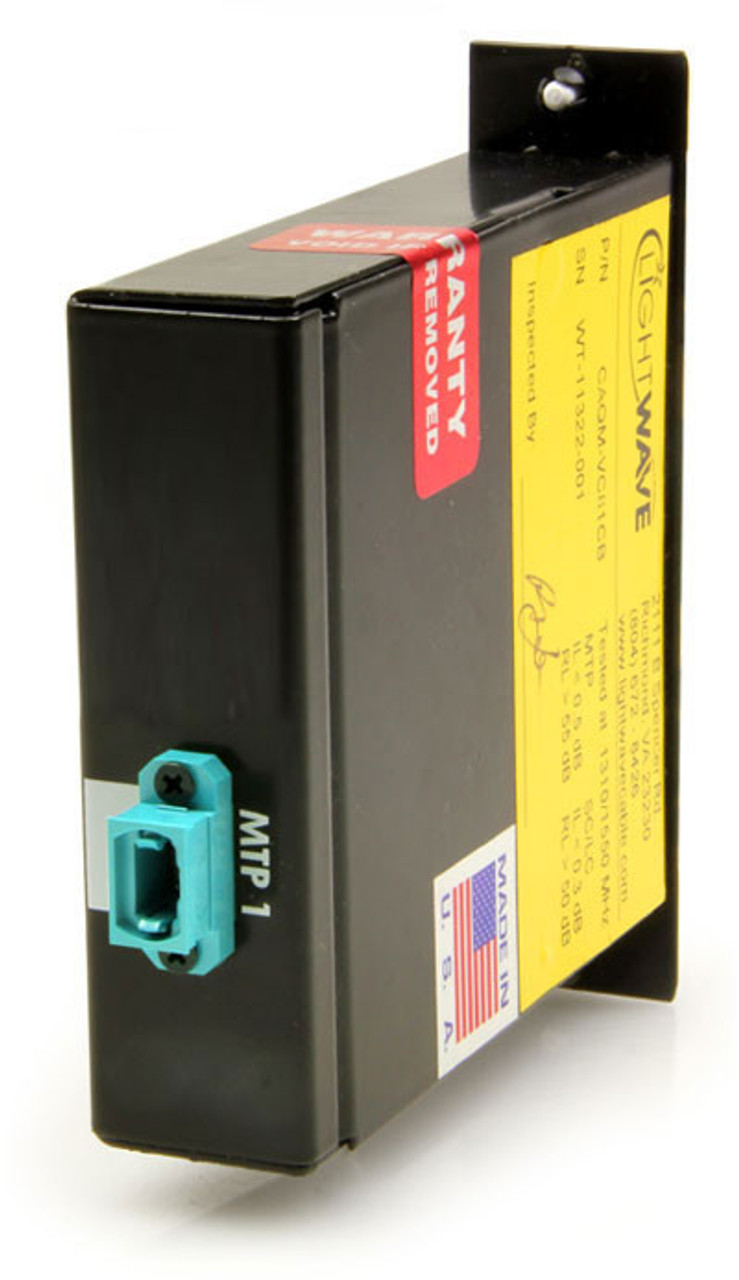

• Rear: MTP® brand adaptor(s)

• Internal: Fan-out assembly

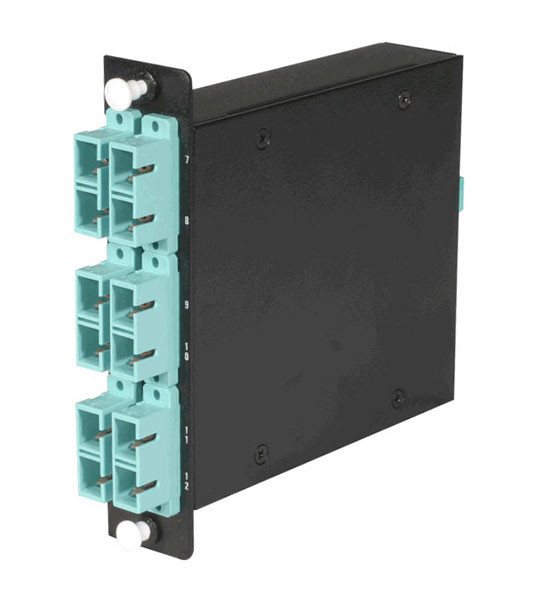

• Front: SC adaptors

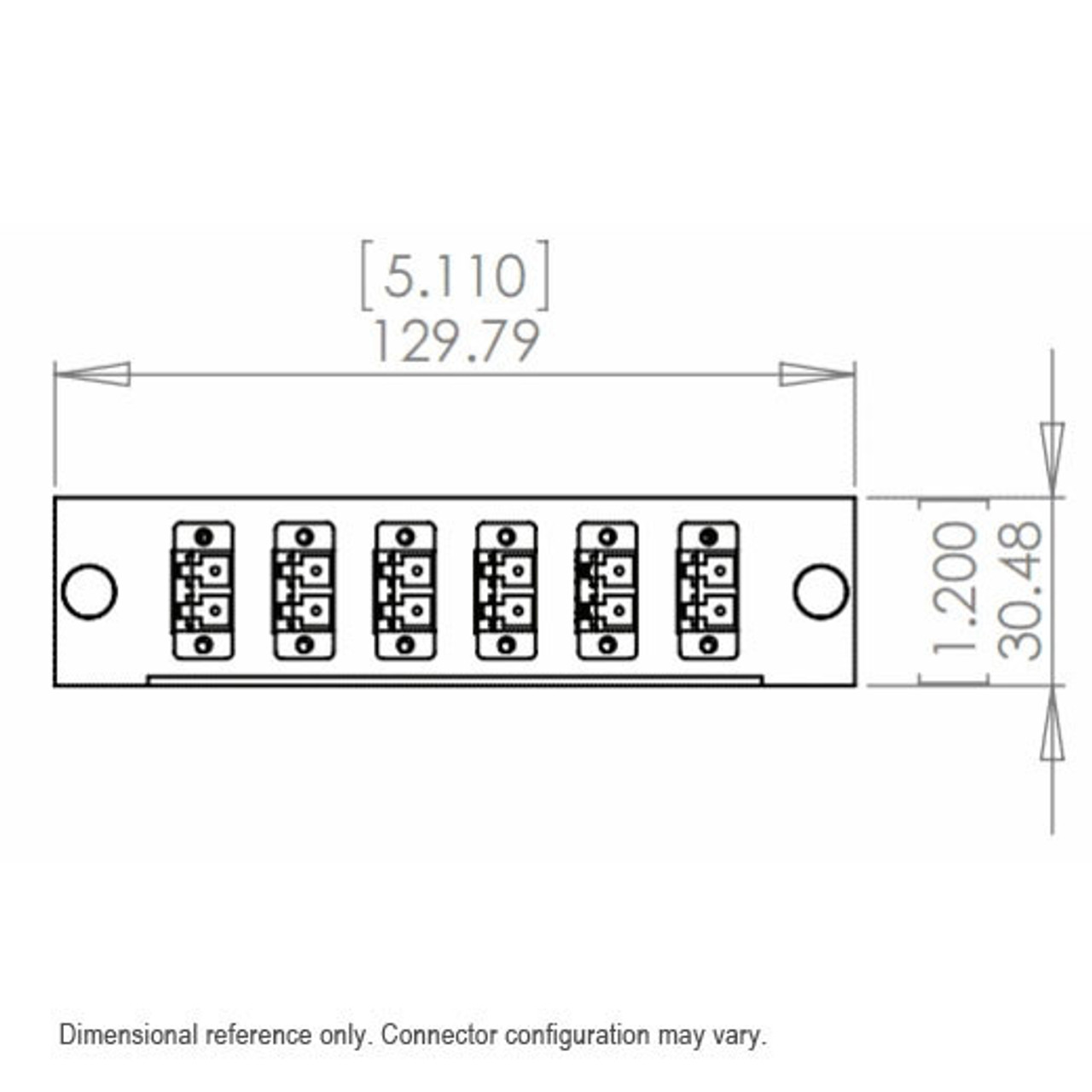

• Housing: Configurable to match multiple manufacturer fit and form factors

By simply connecting an MTP® cable to the rear, the cassette activates 12 fibers, which are fanned out to six duplex SC ports on the front panel.

12-Fiber OM3 MTP to SC Cassette Features:

• Optical Return Loss: > 20 dB
• Operating Temperature: -40° C to + 80° C
• Durability: < 0.2 dB change (per EIA-455-21A), 1000 remates

Specifications:

MTP Elite® Performance Insertion Loss

• 0.10 dB Typical (all fibers)
• 0.35 dB Maximum (single fiber) 1
• As tested per ANSI/EIA 455-171 Method D1
