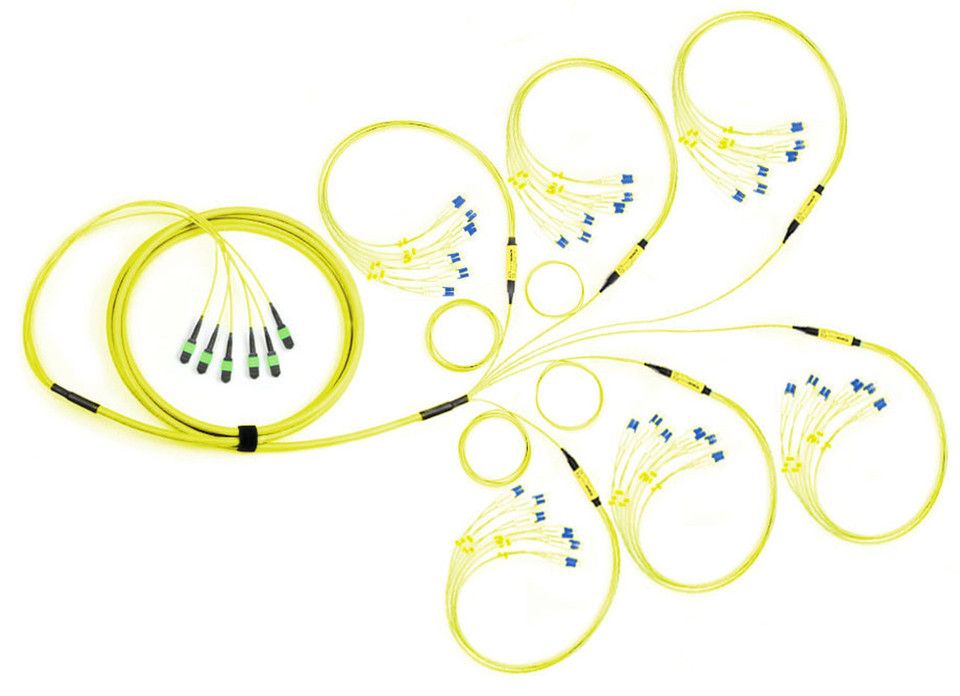

Tackle the ever-growing need for more data bandwidth, transfer speeds and work space with the LightWave MTP Elite 72-Strand, OS2 Singlemode Fiber Optic Cable. As the MTP® Elite Pro brand connector becomes the standard, more and more data-centric telecommunications and electronics operations are upgrading their existing, outdated infrastructure to meet requirements for higher throughput.
With the MTP® Elite Pro brand connector, you get more features and flexibility over generic MPO-style connectors, which gives you more control to optimize the performance of your fiber optic cable. One of these advantages is removable house, which allows you to re-polish and re-work the MT ferrule for the best possible accuracy. Another benefit lies in the MTP brand connectors spring design, which maximizes ribbon clearance for multifiber ribbon applications, preventing fiber damage.
With Singlemode OS2 fiber optics, experience data transmissions over a 1Gbps link with a 9/125 micron glass fiber over a distance of up to 10,000 meters at a wavelength of 1310nm. For a 10Gbps link, you can transfer data over a distance of up to 5,000 meters at 1310nm, and 30,000 meters at 1550nm.
Each cable is assembled in the USA, and tested for interferometry and insertion loss, so you can enjoy the American-made quality and high performance that LightWave cables provide.
The HD8² brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.
| & Type | Typical Attenuation (dB/km)) | 1 Gbps Ethernet Distance (Meters) | 10 Gbps Ethernet Distance (Meters) | ||||
| Singlemode, Tight Buffer | 1310nm | 1383nm | 1550nm | 1625nm | 1310nm | 1310nm | 1550nm |
| 900 Micron | 0.65 | --- | 0.65 | --- | 10,000 | 5,000 | 30,000 |
| 2mm/3mm Breakout | 1.00 | --- | 1.00 | --- | 10,000 | 5,000 | 30,000 |
MTP® is a registered trademark of US Conec Ltd.
