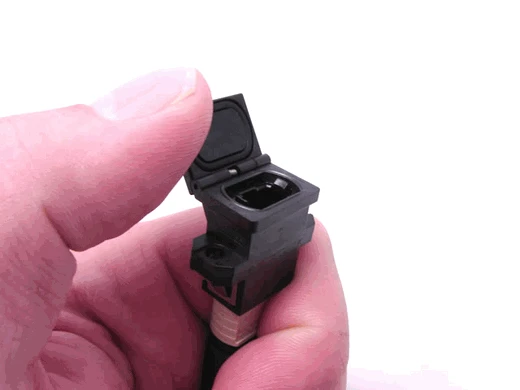

MTP/MPO Fiber Coupler, Standard Footprint, Shuttered

Durable MTP/MPO brand couplers that provide quick connection for up to 72 optical fibers. Connection integrity is provided by adapter latches which are locked into place by a spring loaded sliding mechanism on the MTP/MPO brand connector plug.

Precision alignment is achieved with patented MTP/MPO brand connector guide pins combined with the tightly controlled guide pin holes on MT ferrules. Numerous single port and ganged configurations are available to satisfy a variety of applications. These MTP/MPO brand couplers are fully compliant with IEC Standard 61754-7 and TIA 604-5 Type MPO.

Black Shuttered Standard Footprint MTP/MPO Feed-Through Coupler Features

• One piece coupler design maximizes coupling strength while minimizing debris generation
• All coupler compatible with MTP Elite® brand connectors and standard grade MTP® brand connectors

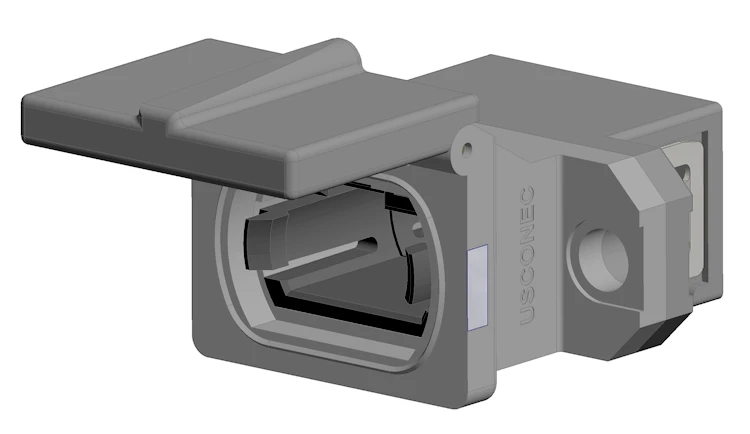

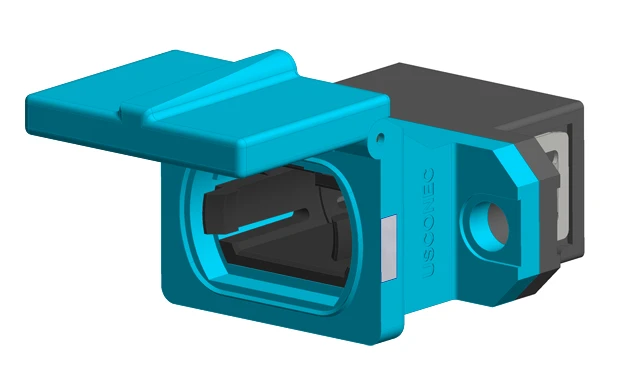

• Available in black, aqua, and gray
• Supplied with either one or two thermoplastic non-debris generating dust plugs
• Compatible with all US Conec MTP® brand connectors in fiber counts ranging from 4 to 72
• Optimal coarse alignment to minimize pin to ferrule debris generation

Specifications

• Array trunk cabling
• Array fiber to single fiber cassettes
• High fiber density card edge access
• Optical switching interframe connections
• Meets IEC Standard 61754-7
• Meets TIA/EIA 604-5 Type MPO
• Structured cabling per TIA-568-C
• Parallel Optics
• Optical Internetworking Forum (OIF) Compliant
• Infiniband Compliant
• 10G Fiber Channel Compliant
• 40G and 100G IEEE 802.3
• SNAP 12
• POP 4
• QSFP
• CXP
