B-Series Breakout – Plenum Rated Cables

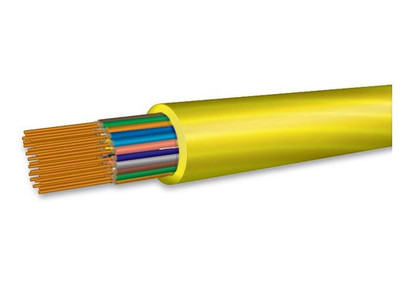

OCC, BX, 2-Strand, 2.5mm, Tight Buffd, In/Out, OFNP, OS2, 9/125, SM, Yellow
Note: This item may require 24 hours for cut and prep before shipping.
- Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are required
- Installed in ducts, plenums, and air-handling spaces
- Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired
- Direct termination to subcable may eliminate the need for patch panels and patch cords and reduce connector loss
- 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
- High crush resistance may eliminate the need for innerduct
Applications
- Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are required
- Installed in ducts, plenums, and air handling spaces
- Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired
COST SAVINGS
- Direct termination to subcable may eliminate the need for patch panels and patch cords and reduce connector loss
- 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
- High crush resistance may eliminate the need for innerduct
Features
- High performance components and construction
- UL Listed in accordance with NEC sections 770.179(a) for use in ducts, plenums and air-handling spaces
- Most rugged and easy to install cable design for enterprise cabling applications
- Standard 2.0mm subcables can be directly terminated with standard connectors. 2.5mm and 2.9mm subcable sizes are also available
- Subcabled fiber is environmentally and mechanically protected
- Ideal for use in point-to-point runs in adverse environments
- Direct termination to subcable provides additional strain relief for better connector retention during moves, adds, and changes
- Design is ideal for direct pulling with mesh grips
- Cable materials are Indoor/Outdoor - UV, water and fungus resistant

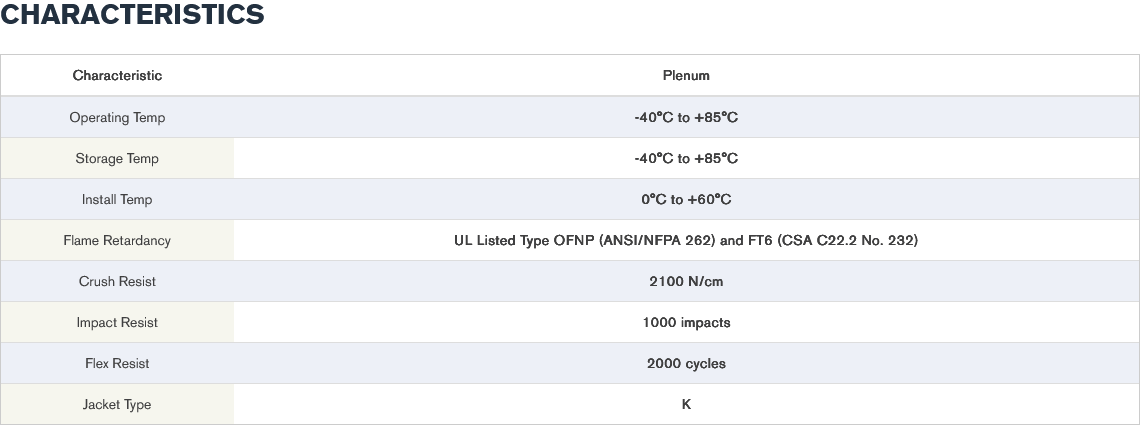

- Wide operating temperature range of -40°C to +85°C

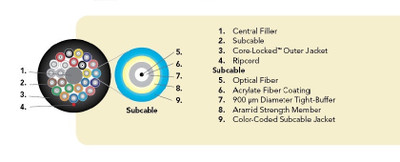

- High performance 900 µm tight-buffered coating on each optical fiber for environmental and mechanical protection
- Jacket highly chemical resistant for installation in harsh industrial environments
- Interlocking armor can be applied to cables as an alternative to conduit installation
- 2 to 48 fibers

Standards
Optical Cable Corporation Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirement of the following standards:
- UL 1651
- ANSI/NFPA 262
- GR-409-CORE
- ICEA-S-104-696
- ICEA-S-83-596
- TIA-568
- TIA-598
