OCC, BX, Breakout Series, 12-Strand, 2.5mm, Tight Buffered, Indoor/Outdoor, OFNP Rated, OM1, 62.5/125, Multimode, Orange Jacket (Priced Per Foot)

Sale
click to zoom in

OCC, BX, Breakout Series, 12-Strand, 2.5mm, Tight Buffered, Indoor/Outdoor, OFNP Rated, OM1, 62.5/125, Multimode, Orange Jacket (Priced Per Foot)

Item#:
BX012KWLS9OP
$2.96
$2.57
Weight:
0.08 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

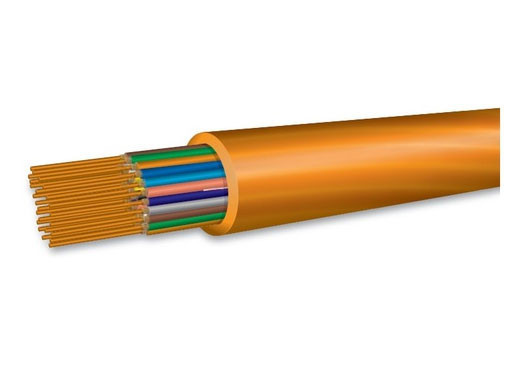

OCC, BX, layer image, orange, Cables Plus USA

OCC, BX, Breakout Series, 12-Strand, 2.5mm, Tight Buffered, Indoor/Outdoor, OFNP Rated, OM1, 62.5/125, Multimode, Orange Jacket (Priced Per Foot)

$2.96
$2.57

2 Strand OCC DX Series 900 µm Tight Buffered, Indoor/Outdoor Distribution, OFNR Riser, Multimode 62.5/125

Reference Previous Part Number:BX12-100K-WLS/900-OFNP

Note: This item may require 24 hours for cut and prep before shipping.



Cable Charecteristics: B-Series Breakout Plenum Cables (with 2.0mm subcables)

  Tensile Load Menimum Bend Radius
  Diameter Weight Installation Operational Installation Long Term
Fiber Count Part Number mm/(in) kg/km (lbs/1,000) N (lbs) N (lbs) cm (in) cm (in)
12 BX012KWLS9OP 9.2 / (0.36) 94 / (63) 4800 / (1080) 1200 / (270) 13.9 / (5.5) 13.9 / (5.5)







Breakout Series Fiber Optic Cable Type OFNP plenum Product Specifications

Applications:

  • Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are required
  • Installed in ducts, plenums, and air handling spaces
  • Easiest cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired

Features:

  • High performance components and construction
  • UL Listed in accordance with NEC sections 770.179(a) for use in ducts, plenums and air-handling spaces
  • Most rugged and easy to install cable design for enterprise cabling applications
  • Standard 2.0mm subcables can be directly terminated with standard connectors. 2.5mm and 2.9mm subcable sizes are also available
  • Subcabled fiber is environmentally and mechanically protected
  • Ideal for use in point-to-point runs in adverse environments
  • Direct termination to subcable provides additional strain relief for better connector retention during moves, adds, and changes
  • Design is ideal for direct pulling with mesh grips
  • Cable materials are Indoor/Outdoor - UV, water and fungus resistant
  • Wide operating temperature range of -40°C to +85°C
  • High performance 900 micron tight buffered coating on each optical fiber for environmental and mechanical protection
  • Jacket highly chemical resistant for installation in harsh industrial environments
  • Interlocking armor can be applied to cables as an alternative to conduit installation
  • 2 to 60 fibers

Cost Savings:

  • Direct termination to subcable may eliminate the need for patch panels and patch cords and reduce connector loss
  • 900 µm eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
  • High crush resistance may eliminate the need for innerduct

Mechanical and Environmental Performance

Note:Optical Cable Corporation reserves the right to Change This specifications without prior notification.

  Indoor/Outdoor (K)
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Installation Temperature (cable temp.) -0°C to +60°C
Flame Retardancy UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Impact Resistance 1,000 impacts
Crush Resistance 2,100 N/cm
Flex Resistance 2,000 Cycles
