OCC, DX, Distribution Series, 12-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, OFNR Rated, OM2, 50/125, Multimode, Orange Jacket (Priced Per Foot)

Sale
click to zoom in

OCC, DX, Distribution Series, 12-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, OFNR Rated, OM2, 50/125, Multimode, Orange Jacket (Priced Per Foot)

Item#:
DX012DALS9ORI2
$3.55
$3.21
Weight:
0.19 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

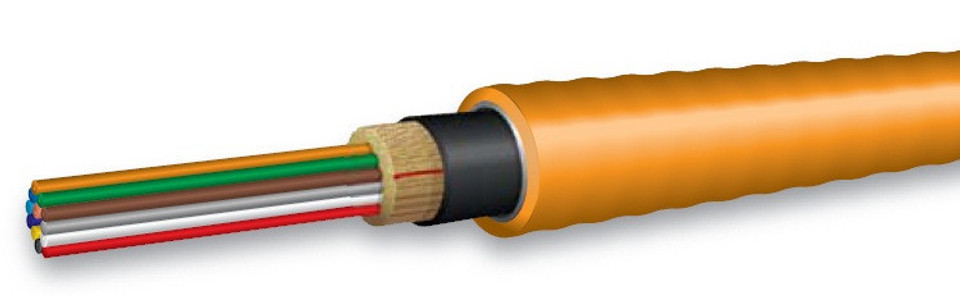

OCC, DX cable, orange jacket, layer image, Cables Plus USA

OCC, DX, Distribution Series, 12-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, OFNR Rated, OM2, 50/125, Multimode, Orange Jacket (Priced Per Foot)

$3.55
$3.21

OCC, DX, Distribution Series, 12-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, OFNR Rated, OM2, 50/125, Multimode, Orange Jacket

Reference Previous Part Number:DX12-065D-ALS/900-OFCR-IAD

Note: This item may require 24 hours for cut and prep before shipping.

DX-Series Distribution – Aluminum Interlocking Armored (ILA) – Riser Rated Cables

Installation zone RECOMMENDATION

  • Ideal for industrial and other installations requiring a metallic conduit
  • Interlocking pre-loaded armor may eliminate the need for conduit, reducing installation costs

Features

  • Cable materials are Indoor/Outdoor – UL-listed OFCR and UV, water and fungus resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
  • Aluminum interlocking armor with PVC overjacket
  • Interlocking armor can be easily removed leaving an intact inner cable
  • Greater flexibility than standard corrugated steel armored (CST) cables
  • Ideal for locations that require conduit for cable protection
  • Wide operating temperature of -40°C to +85°C

Characteristics

Characteristic Riser
Operating Temp -40°C to +85°C
Storage Temp -55°C to +85°C
Install Temp 0°C to +60°C
Flame Retardancy UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
Crush Resist 650 N/cm
Impact Resist 20 impacts
Flex Resist 25 cycles
Jacket Type D

Standards

Optical Cable Corporation's Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1666
  • UL 1651
  • ICEA-S-83-596

Specifications -Riser

  Tensile Load Minimum Bend Radius
Fiber Count Part Number Diameter mm
(in)
Weight kg/km
(lbs/1,000ft)
Installation N
(lbs)
Operation N
(lbs)
Installation cm
(in)
Longer Term cm
(in)

2 DX002D***9*RI2 13.1
(0.52)
158.0
(106.0)
1,350
(300)
400
(90)
26.2
(10.3)
19.7
(7.8)

4 DX004D***9*RI2 13.1
(0.52)
158.0
(106.0)
1,350
(300)
400
(90)
26.2
(10.3)
19.7
(7.8)

6 DX006D***9*RI2 13.1
(0.52)
158.0
(106.0)
1,350
(300)
400
(90)
26.2
(10.3)
19.7
(7.8)

8 DX008D***9*RI2 13.6
(0.54)
167.0
(112.0)
1,350
(300)
400
(90)
27.2
(10.7)
20.4
(8.0)

12 DX012DALS9ORI2 15.1
(0.59)
212.0
(143.0)
1,350
(300)
400
(90)
30.2
(11.9)
22.7
(8.9)

18 DX018D***9*RI2 15.1
(0.59)
207.0
(139.0)
1,350
(300)
400
(90)
30.2
(11.9)
22.7
(8.9)

24 DX024D***9*RI2 16.7
(0.66)
239.0
(161.0)
1,350
(300)
400
(90)
33.4
(13.1)
25.1
(9.9)

30 DX030D***9*RI2 17.2
(0.68)
255.0
(171.0)
1,350
(300)
400
(90)
34.4
(13.5)
25.8
(10.2)

36 DX036D***9*RI2 17.2
(0.68)
253.0
(170.0)
1,350
(300)
400
(90)
34.4
(13.5)
25.8
(10.2)

48 DX048D***9*RI2 18.2
(0.72)
284.0
(191.0)
1,350
(300)
400
(90)
36.4
(14.3)
27.3
(10.7)


Fiber Performance chart
