OCC, DX, Distribution Series, 24-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNR Rated, OM1, 62.5/125, Multimode, Black Jacket
Reference Previous Part Number: DX24-085D-WLS/900-OFNR
Note: This item may require 24 hours for cut and prep before shipping.
DX-Series Distribution – Riser Rated Cables
Installation zone RECOMMENDATION
- Indoor/Outdoor tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types
- Ideal configuration for a single termination point requiring multiple fibers
- 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
- No need to splice outdoor cable to indoor cable at building entrance
- High crush resistance may eliminate the need for innerduct
Applications
- Indoor/Outdoor tight-bound tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types
- Ideal configuration for a single termination point requiring multiple fibers
COST SAVINGS
- 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
- No need to splice outdoor cable to indoor cable at building entrance
- High crush resistance may eliminate the need for innerduct
Features
- High performance components and construction
- Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus resistant
- UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
- Wide operating temperature range of -40°C to +85°C

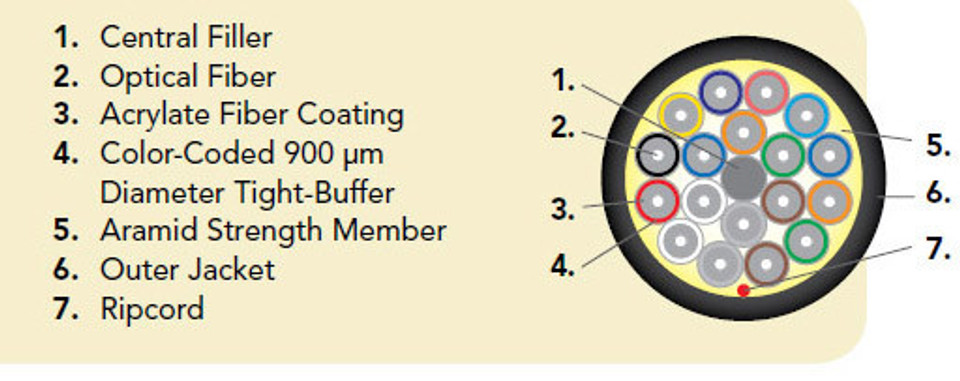

- Helically stranded core for greater flexibility and mechanical protection of the optical fibers
- High strength-to-weight ratio
- 2-144 fiber configuration is smaller and lighter than comparable sub-grouped cables made by others: ideal for installation in areas with limited space or tight bends
- Can be armored for additional protection in direct burial and aerial installations
- Interlocking armor can be applied to cables as an alternative to conduit installation
Characteristics
Characteristic |
Riser |
Operating Temp |
-40°C to +85°C |
Storage Temp |
-55°C to +85°C |
Install Temp |
-10°C to +60°C |
Flame Retardancy |
UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only |
Crush Resist |
1800 N/cm |
Impact Resist |
1500 impacts |
Flex Resist |
2000 cycles |
Jacket Type |
D |
Standards
Optical Cable Corporation's Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:
- UL 1651
- UL 1666
- GR-409-CORE
- ICEA-S-104-696
- ICEA-S-83-596
- TIA-568
- TIA-598
- UL-listed type OFNR in accordance with NEC sections 770-179 (B) and 770-154 (B) for use in vertical runs in building riser shafts or from floor to floor. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.
Specifications
Riser
|
Tensile Load |
Minimum Bend Radius |
|
Fiber Count |
Part Number |
Diameter mm (in) |
Weight kg/km (lbs/1,000ft) |
Installation N (lbs) |
Operation N (lbs) |
Installation cm (in) |
Longer Term cm (in) |
|
2 |
DX002D***9*R |
4.8 (0.19) |
22.0 (14.0) |
660 (150) |
180 (40) |
7.3 (2.9) |
4.8 (1.9) |
|
4 |
DX004D***9*R |
5.1 (0.20) |
24.0 (16.0) |
1,400 (310) |
450 (100) |
7.7 (3.0) |
5.1 (2.0) |
|
6 |
DX006D***9*R |
5.7 (0.22) |
31.0 (21.0) |
1,400 (310) |
450 (100) |
8.6 (3.4) |
5.7 (2.2) |
|
8 |
DX008D***9*R |
6.0 (0.24) |
33.0 (22.0) |
1,600 (360) |
525 (120) |
9.0 (3.5) |
6.0 (2.4) |
|
10 |
DX010D***9*R |
6.5 (0.26) |
42.0 (28.0) |
1,800 (400) |
600 (135) |
9.8 (3.9) |
6.5 (2.6) |
|
12 |
DX012D***9*R |
6.5 (0.26) |
38.0 (25.0) |
2,700 (600) |
600 (135) |
9.8 (3.9) |
6.5 (2.6) |
|
18 |
DX018D***9*R |
7.3 (0.29) |
47.0 (31.0) |
2,700 (600) |
700 (160) |
11.0 (4.3) |
7.2 (2.8) |
|
24 |
DX024DWLS9KR |
8.9 (0.35) |
66.0 (44.0) |
3,000 (670) |
1,000 (220) |
13.4 (5.3) |
8.9 (3.5) |
|
30 |
DX030D***9*R |
9.1 (0.36) |
75.0 (50.0) |
3,000 (670) |
1,000 (220) |
13.7 (5.4) |
9.1 (3.6) |
|
36 |
DX036D***9*R |
9.1 (0.36) |
73.0 (49.0) |
3,000 (670) |
1,000 (220) |
13.7 (5.4) |
9.1 (3.6) |
|
48 |
DX048D***9*R |
10.5 (0.41) |
93.0 (63.0) |
4,200 (940) |
1,400 (310) |
17.4 (6.9) |
11.6 (4.6) |
|
60 |
DX060D***9*R |
12.3 (0.48) |
135.0 (91.0) |
4,800 (1,080) |
1,600 (360) |
18.5 (7.3) |
12.3 (4.8) |
|
72 |
DX072D***9*R |
14.0 (0.55) |
177.0 (119.0) |
5,400 (1,210) |
1,800 (400) |
21.0 (8.3) |
14.0 (5.5) |
|
84 |
DX084D***9*R |
14.4 (0.57) |
190.0 (128.0) |
6,000 (1,350) |
2,000 (450) |
21.6 (8.5) |
14.4 (5.7) |
|
96 |
DX096D***9*R |
16.0 (0.63) |
225.0 (151.0) |
6,000 (1,350) |
2,000 (450) |
24.1 (9.5) |
16.0 (6.3) |
|
108 |
DX108D***9*R |
16.8 (0.66) |
246.0 (165.0) |
6,000 (1,350) |
2,000 (450) |
25.3 (10.0) |
16.8 (6.6) |
|
120 |
DX120D***9*R |
17.9 (0.70) |
271.0 (182.0) |
6,000 (1,350) |
2,000 (450) |
26.8 (10.6) |
17.9 (7.0) |
|
132 |
DX132D***9*R |
17.8 (0.70) |
291.0 (195.0) |
6,000 (1,350) |
2,000 (450) |
26.8 (10.6) |
17.8 (7.0) |
|
144 |
DX144D***9*R |
20.3 (0.80) |
339.0 (228.0) |
6,000 (1,350) |
2,000 (450) |
30.5 (12.0) |
20.3 (8.0) |
|
