OCC, DX, Distribution Series, 4-Strand, 900um, Tight Buffered, Military Tactical, 900um Tight Buffered, OM1, 62.5/125, Multimode, Black Jacket

Installation Zone Recommendation

Applications

• Ground-tactical cable are ideal for use in harsh environments where deployment and retrieval for reuse is required

Features

• Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for military tactical field use and commercial applications
• Compact, round cable design for ease of transportation and deployment
• Designed for use in adverse environments where reduced size and weight are important
• Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
• Cables have been tested and are in use in military data communications applications worldwide
• Can be used Outdoors for temporary deployment directly on the ground in all terrains, including severe environments
• Suitable for industrial, mining and petrochemical environments - chemical resistant
• Crush-resistant and resilient with a thick layer of aramid strength members
• Polyurethane jacketed for abrasion, cut and chemical resistance
• Most commonly used with ruggedized multiway military tactical field connectors, for maximum connector retention (400lbs.)
• Tactical Polyurethane (C) outer jacket material is standard; Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G) outer jacket materials are available
• Ultra-Fox Plus Fiber (500µm) used for environmental and mechanical protection

OCC PROVIDED OPTIONS

• Mil-Tac cables pre-spooled on deployable reels for a ready-to-use product
• Mil-Tac cables can be pre-terminated with single-fiber or ruggedized multichannel connectors upon request

Note: This item may require 24 hours for cut and prep before shipping.

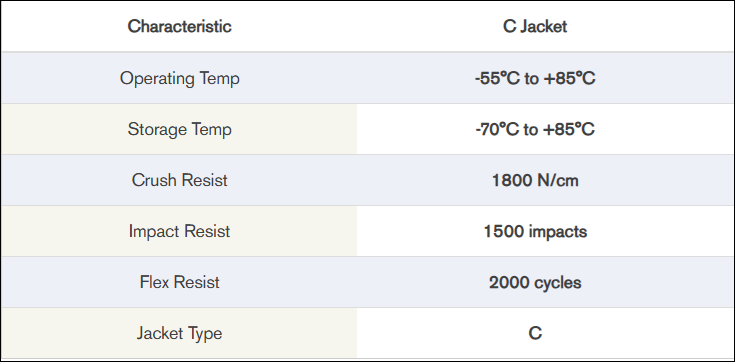

Characteristics

Specifications

C Jacket

Old Part Number: D04-055C-WEU/900-MIL
