OCC, DX, Distribution Series, 48-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, OFNR Rated, OM2, 50/125, Multimode, Orange Jacket (Priced Per Foot)

Sale
click to zoom in
DX048DALS9ORI2 - 48-Strand OCC DX Series Interlocked Armored Dist., OFCR Riser, MM 50/125

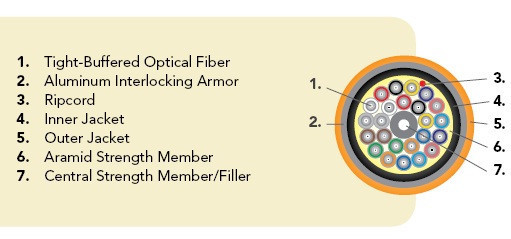

DX048DALS9ORI2 - 48-Strand OCC DX Series Interlocked Armored Dist., OFCR Riser, MM 50/125 - Image 2

OCC, DX, Distribution Series, 48-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, OFNR Rated, OM2, 50/125, Multimode, Orange Jacket (Priced Per Foot)

Item#:
DX048DALS9ORI2
$6.72
$5.84
Weight:
0.26 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

DX048DALS9ORI2 - 48-Strand OCC DX Series Interlocked Armored Dist., OFCR Riser, MM 50/125

OCC, DX, Distribution Series, 48-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, OFNR Rated, OM2, 50/125, Multimode, Orange Jacket (Priced Per Foot)

$6.72
$5.84
Description

OCC, DX, Distribution Series, 48-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, OFNR Rated, OM2, 50/125, Multimode, Orange Jacket

Reference Previous Part Number: DX48-105D-ALS/900-OFCR-IAD

Note: This item may require 24 hours for cut and prep before shipping.

DX-Series Distribution – Aluminum Interlocking Armored (ILA) – Riser Rated Cables

Installation zone RECOMMENDATION

  • Ideal for industrial and other installations requiring a metallic conduit
  • Interlocking pre-loaded armor may eliminate the need for conduit, reducing installation costs

Features

  • Cable materials are Indoor/Outdoor – UL-listed OFCR and UV, water and fungus resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building risers or from floor to floor
  • Aluminum interlocking armor with PVC overjacket
  • Interlocking armor can be easily removed leaving an intact inner cable
  • Greater flexibility than standard corrugated steel armored (CST) cables
  • Ideal for locations that require conduit for cable protection
  • Wide operating temperature of -40°C to +85°C

Characteristics

Characteristic Riser
Operating Temp -40°C to +85°C
Storage Temp -55°C to +85°C
Install Temp 0°C to +60°C
Flame Retardancy UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
Crush Resist 650 N/cm
Impact Resist 20 impacts
Flex Resist 25 cycles
Jacket Type D

Standards

Optical Cable Corporation's Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1666
  • UL 1651
  • ICEA-S-83-596

Specifications -Riser

  Tensile Load Minimum Bend Radius
Fiber Count Part Number Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002D***9*RI2 13.1
(0.52)		 158.0
(106.0)		 1,350
(300)		 400
(90)		 26.2
(10.3)		 19.7
(7.8)
4 DX004D***9*RI2 13.1
(0.52)		 158.0
(106.0)		 1,350
(300)		 400
(90)		 26.2
(10.3)		 19.7
(7.8)
6 DX006D***9*RI2 13.1
(0.52)		 158.0
(106.0)		 1,350
(300)		 400
(90)		 26.2
(10.3)		 19.7
(7.8)
8 DX008D***9*RI2 13.6
(0.54)		 167.0
(112.0)		 1,350
(300)		 400
(90)		 27.2
(10.7)		 20.4
(8.0)
12 DX012D***9*RI2 15.1
(0.59)		 212.0
(143.0)		 1,350
(300)		 400
(90)		 30.2
(11.9)		 22.7
(8.9)
18 DX018D***9*RI2 15.1
(0.59)		 207.0
(139.0)		 1,350
(300)		 400
(90)		 30.2
(11.9)		 22.7
(8.9)
24 DX024D***9*RI2 16.7
(0.66)		 239.0
(161.0)		 1,350
(300)		 400
(90)		 33.4
(13.1)		 25.1
(9.9)
30 DX030D***9*RI2 17.2
(0.68)		 255.0
(171.0)		 1,350
(300)		 400
(90)		 34.4
(13.5)		 25.8
(10.2)
36 DX036D***9*RI2 17.2
(0.68)		 253.0
(170.0)		 1,350
(300)		 400
(90)		 34.4
(13.5)		 25.8
(10.2)
48 DX048DALS9ORI2 18.2
(0.72)		 284.0
(191.0)		 1,350
(300)		 400
(90)		 36.4
(14.3)		 27.3
(10.7)

Laser Ultra Fox Fibre Performance

Downloads
dx004dwls9ori2.pdf
