OCC, DX, Distribution Series, 72-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNR Rated, OM3, 50/125, Multimode, Aqua Jacket (Priced Per Foot)

click to zoom in
OCC, DX cable, aqua jacket, layer image, Cables Plus USA

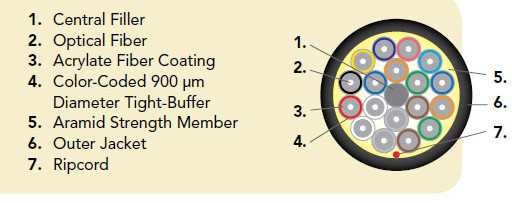

OCC, DX cable, aqua jacket, cross section image, Cables Plus USA

OCC, DX, Distribution Series, 72-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNR Rated, OM3, 50/125, Multimode, Aqua Jacket (Priced Per Foot)

Item#:
DX072DALT9QR
$0.10
Condition:
New
Availability:
This is a Special-Order Product and requires quotation. Minimum 1,000' Foot normally required. Please Add to Quote and then select the Request a Quote button.
Weight:
0.12 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

OCC, DX cable, aqua jacket, layer image, Cables Plus USA

OCC, DX, Distribution Series, 72-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNR Rated, OM3, 50/125, Multimode, Aqua Jacket (Priced Per Foot)

$0.10
Description

OCC, DX, Distribution Series, 72-Strand, 900um Tight Buffered, Indoor/Outdoor, OFNR Rated, OM3, 50/125, Multimode, Aqua Jacket

Reference Previous Part Number: DX72-135D-ALT/900-OFNR

Note: This item may require 24 hours for cut and prep before shipping.

DX-Series Distribution – Riser Rated Cables

Installation zone RECOMMENDATION

  • Indoor/Outdoor tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types
  • Ideal configuration for a single termination point requiring multiple fibers
  • 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
  • No need to splice outdoor cable to indoor cable at building entrance
  • High crush resistance may eliminate the need for innerduct

Applications

  • Indoor/Outdoor tight-bound tight-buffered design allows cables to be installed in intra-building backbone and inter-building campus locations without costly transitions between cable types
  • Ideal configuration for a single termination point requiring multiple fibers

COST SAVINGS

  • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
  • No need to splice outdoor cable to indoor cable at building entrance
  • High crush resistance may eliminate the need for innerduct

Features

  • High performance components and construction
  • Cable materials are indoor/outdoor - UL-listed OFNR and UV, water and fungus resistant
  • UL Listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
  • Wide operating temperature range of -40°C to +85°C
  • Helically stranded core for greater flexibility and mechanical protection of the optical fibers
  • High strength-to-weight ratio
  • 2-144 fiber configuration is smaller and lighter than comparable sub-grouped cables made by others: ideal for installation in areas with limited space or tight bends
  • Can be armored for additional protection in direct burial and aerial installations
  • Interlocking armor can be applied to cables as an alternative to conduit installation

Characteristics

Characteristic Riser
Operating Temp -40°C to +85°C
Storage Temp -55°C to +85°C
Install Temp -10°C to +60°C
Flame Retardancy UL listed type OFNR (UL 1666) for all fiber counts *FT4 (CSA C22.2 No. 232) for 2-24 fiber counts only
Crush Resist 1800 N/cm
Impact Resist 1500 impacts
Flex Resist 2000 cycles
Jacket Type D

Standards

Optical Cable Corporation's Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • UL 1651
  • UL 1666
  • GR-409-CORE
  • ICEA-S-104-696
  • ICEA-S-83-596
  • TIA-568
  • TIA-598
  • UL-listed type OFNR in accordance with NEC sections 770-179 (B) and 770-154 (B) for use in vertical runs in building riser shafts or from floor to floor. Meets or exceeds requirements for intra-building fiber optic cables as outlined in GR-409-CORE.

Specifications

Riser

  Tensile Load Minimum Bend Radius
Fiber Count Part Number Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002D***9*R 4.8
(0.19)		 22.0
(14.0)		 660
(150)		 180
(40)		 7.3
(2.9)		 4.8
(1.9)
4 DX004D***9*R 5.1
(0.20)		 24.0
(16.0)		 1,400
(310)		 450
(100)		 7.7
(3.0)		 5.1
(2.0)
6 DX006D***9*R 5.7
(0.22)		 31.0
(21.0)		 1,400
(310)		 450
(100)		 8.6
(3.4)		 5.7
(2.2)
8 DX008D***9*R 6.0
(0.24)		 33.0
(22.0)		 1,600
(360)		 525
(120)		 9.0
(3.5)		 6.0
(2.4)
10 DX010D***9*R 6.5
(0.26)		 42.0
(28.0)		 1,800
(400)		 600
(135)		 9.8
(3.9)		 6.5
(2.6)
12 DX012D***9*R 6.5
(0.26)		 38.0
(25.0)		 2,700
(600)		 600
(135)		 9.8
(3.9)		 6.5
(2.6)
18 DX018D***9*R 7.3
(0.29)		 47.0
(31.0)		 2,700
(600)		 700
(160)		 11.0
(4.3)		 7.2
(2.8)
24 DX024D***9*R 8.9
(0.35)		 66.0
(44.0)		 3,000
(670)		 1,000
(220)		 13.4
(5.3)		 8.9
(3.5)
30 DX030D***9*R 9.1
(0.36)		 75.0
(50.0)		 3,000
(670)		 1,000
(220)		 13.7
(5.4)		 9.1
(3.6)
36 DX036D***9*R 9.1
(0.36)		 73.0
(49.0)		 3,000
(670)		 1,000
(220)		 13.7
(5.4)		 9.1
(3.6)
48 DX048D***9*R 10.5
(0.41)		 93.0
(63.0)		 4,200
(940)		 1,400
(310)		 17.4
(6.9)		 11.6
(4.6)
60 DX060D***9*R 12.3
(0.48)		 135.0
(91.0)		 4,800
(1,080)		 1,600
(360)		 18.5
(7.3)		 12.3
(4.8)
72 DX072DALT9QR 14.0
(0.55)		 177.0
(119.0)		 5,400
(1,210)		 1,800
(400)		 21.0
(8.3)		 14.0
(5.5)
84 DX084D***9*R 14.4
(0.57)		 190.0
(128.0)		 6,000
(1,350)		 2,000
(450)		 21.6
(8.5)		 14.4
(5.7)
96 DX096D***9*R 16.0
(0.63)		 225.0
(151.0)		 6,000
(1,350)		 2,000
(450)		 24.1
(9.5)		 16.0
(6.3)
108 DX108D***9*R 16.8
(0.66)		 246.0
(165.0)		 6,000
(1,350)		 2,000
(450)		 25.3
(10.0)		 16.8
(6.6)
120 DX120D***9*R 17.9
(0.70)		 271.0
(182.0)		 6,000
(1,350)		 2,000
(450)		 26.8
(10.6)		 17.9
(7.0)
132 DX132D***9*R 17.8
(0.70)		 291.0
(195.0)		 6,000
(1,350)		 2,000
(450)		 26.8
(10.6)		 17.8
(7.0)
144 DX144D***9*R 20.3
(0.80)		 339.0
(228.0)		 6,000
(1,350)		 2,000
(450)		 30.5
(12.0)		 20.3
(8.0)

Fiber Performance chart
