OCC DX Series, 6-Strand, In/Out, ILA, Chem Resistant, OFNP, OM3, Aqua Jacket (Priced Per Foot)

Sale
click to zoom in
OCC, DX cable, aqua jacket, layer image, Cables Plus USA

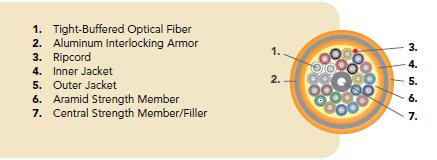

OCC, DX cable, aqua jacket, cross section image, Cables Plus USA

OCC DX Series, 6-Strand, In/Out, ILA, Chem Resistant, OFNP, OM3, Aqua Jacket (Priced Per Foot)

Item#:
DX006KALT9QPI6
$3.85
$3.39
Weight:
0.19 LBS
Minimum Purchase:
1000 units
Customer Service

Need Help?

Speak to one of our experts.

Phone Icon

804-716-9007

OCC, DX cable, aqua jacket, layer image, Cables Plus USA

OCC DX Series, 6-Strand, In/Out, ILA, Chem Resistant, OFNP, OM3, Aqua Jacket (Priced Per Foot)

$3.85
$3.39
Description

OCC, DX, Distribution Series, 6-Strand, 900um Tight Buffered, Indoor/Outdoor, ILA Armored, Chemical Resistant OFNP Plenum Rated, OM3, 50/125, Multimode, Aqua Jacket

Reference Previous Part Number: DX06-050K-ALT/900-OFCP-IAK

Note: This item may require 24 hours for cut and prep before shipping.

DX-Series Distribution – Chemical Resistant – Aluminum Interlocking Armor (ILA) – Plenum Rated Cables

Installation zone RECOMMENDATION

  • Ideal for industrial and other installations requiring a metallic conduit
  • Interlocking pre-loaded armor may eliminate the need for conduit, reducing installation costs

Applications

  • Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces
  • Ideal configuration for a single termination point requiring multiple fibers
  • Aluminum interlocking armor with fluoropolymer overjacket
  • Interlocking armor can be easily removed leaving an intact inner cable
  • Greater flexibility than corrugated steel armored (CST) cables
  • Ideal for locations that require conduit for cable protection
  • Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments

Features

  • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces
  • Fluorpolymer inner and outer jackets
  • Cable materials are Indoor/Outdoor UL-Listed OFCP and also UV, water, chemical, and fungus resistant
  • Jacket is highly chemical resistant for installation in harsh industrial environments
  • High performance tight-buffered coating on each fiber for environmental and mechanical protection
  • 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber.
  • Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers
  • Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments.

Characteristics

Characteristic Plenum (Indoor/Outdoor)
Operating Temp -40°C to +85°C
Storage Temp -40°C to +85°C
Install Temp 0°C to +60°C
Flame Retardancy UL Listed Type OFCP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232)
Crush Resist 650 N/cm
Impact Resist 20 impacts
Flex Resist 25 cycles
Jacket Type K

Standards

OCC Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

  • ANSI/NFPA 262
  • ICEA-S-83-596
  • UL 1651

Specifications

ILA Plenum ("K" jacket)

  Tensile Load Minimum Bend Radius
Fiber Count Part Number Diameter mm
(in)		 Weight kg/km
(lbs/1,000ft)		 Installation N
(lbs)		 Operation N
(lbs)		 Installation cm
(in)		 Longer Term cm
(in)
2 DX002K***9*PI6 13.1
(0.52)		 175.0
(118.0)		 1,350
(300)		 400
(90)		 26.2
(10.3)		 19.7
(7.8)
4 DX004K***9*PI6 13.1
(0.52)		 175.0
(118.0)		 1,350
(300)		 400
(90)		 26.2
(10.3)		 19.7
(7.8)
6 DX006KALT9QPI6 13.1
(0.52)		 175.0
(118.0)		 1,350
(300)		 400
(90)		 26.2
(10.3)		 19.7
(7.8)
12 DX012K***9*PI6 14.1
(0.56)		 209.0
(140.0)		 1,350
(300)		 400
(90)		 28.2
(11.1)		 21.2
(8.3)
18 DX018K***9*PI6 14.1
(0.56)		 209.0
(140.0)		 1,350
(300)		 400
(90)		 28.2
(11.1)		 21.2
(8.3)
24 DX024K***9*PI6 16.1
(0.63)		 264.0
(177.0)		 1,350
(300)		 400
(90)		 32.2
(12.7)		 24.2
(9.5)
36 DX036K***9*PI6 16.1
(0.63)		 273.0
(183.0)		 1,350
(300)		 400
(90)		 32.2
(12.7)		 24.2
(9.5)
48 DX048K***9*PI6 17.7
(0.70)		 320.0
(215.0)		 1,350
(300)		 400
(90)		 35.4
(13.9)		 26.6
(10.5)
72 DX072K***9*PI6 20.7
(0.81)		 456.0
(306.0)		 1,350
(300)		 400
(90)		 41.4
(16.3)		 31.1
(12.2)
96 DX096K***9*PI6 21.7
(0.85)		 511.0
(343.0)		 1,350
(300)		 400
(90)		 43.4
(17.1)		 32.6
(12.8)

Fiber Performance chart
