Product Overview

The CyberPower OL3KRTHDTAA is an online double-conversion UPS designed to provide continuous power protection with individual outlet control and support for the optional RMCARD205 network management card.

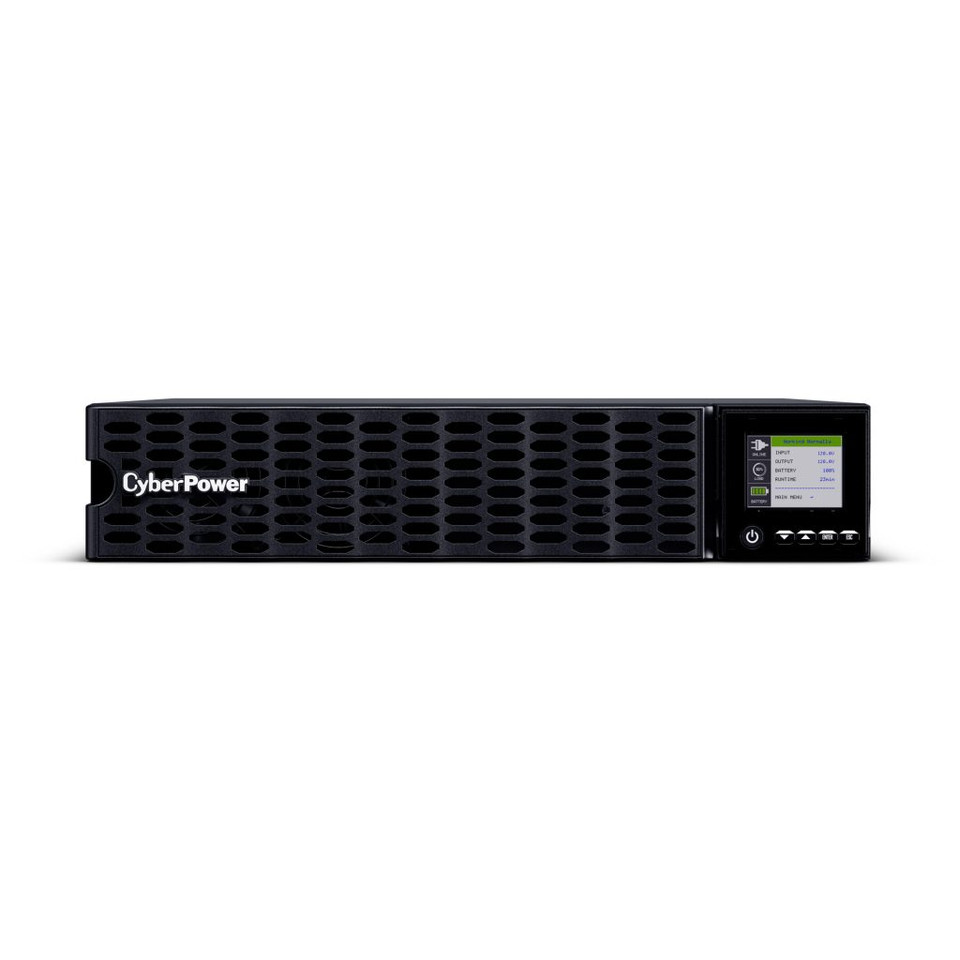

For simplified monitoring and operation, the OL3KRTHDTAA includes a multifunction color TFT LCD screen with an easy-to-use interface. The display provides clear UPS status through color-coded alerts and automatically adjusts its orientation when the UPS is installed in a tower configuration.

The OL3KRTHDTAA delivers efficient power performance with a 0.9 Power Factor (PF) rating for maximum efficiency and capacity output. Its energy-saving GreenPower UPS™ ECO Mode provides more than 96% efficiency while helping reduce power consumption and thermal dissipation.

For additional runtime during power outages, the UPS supports the optional BP48VL2U01TAA Extended Battery Module (EBM). Up to ten EBMs can be connected to the UPS in a daisy-chain configuration to provide extended backup power. The OL3KRTHDTAA is backed by a 3-year warranty, including batteries, and a $400,000 Connected Equipment Guarantee.

Product Features

• Individual Outlet Control

• Double-Conversion Topology

• Sine Wave Output

• Full Matrix Color TFT LCD Control Panel

• Toolless Front Panel

• Hot-Swappable Batteries

• Extended Battery Module (EBM) Support

• Smart Battery Management (SBM)

• Fast Charge Technology

• PowerPanel® Business Software

• Optional RMCARD205 Support

• Rackmount Rail

• Tamper-Proof Input Circuit Breaker

• EMI/RFI Filters

• ENERGY STAR® Certified

• GreenPower UPS™ ECO Mode

• Upgradeable UPS Firmware

• Multiple Language Options

• Critical & Non-Critical Load Banks

• Emergency Power Off (EPO)

• Generator Compatible

• Converter Mode

• USB & Serial Connectivity

• Audible Alarms

• Rack/Tower Convertible Design

• Three-Year Warranty

• Connected Equipment Guarantee

Typical Applications

• Core Network Equipment

• Corporate Servers

• Enterprise Servers

• Hyperconverged Infrastructure (HCI)

• Server Rooms

• Server Virtualization Infrastructures

• Storage Systems

• VoIP Infrastructure
