OWL PON Power Meter - PON-2M

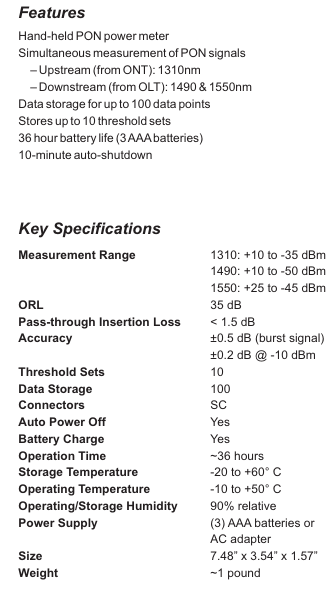

The PON-2M PON power meter allows users to simultaneously measure signals upstream (1310nm) from the ONT and downstream (1490nm & 1550nm) from the OLT in FTTH/PON networks.
Up to 100 data points can be stored in internal memory, which can be recalled on the LCD display at a later time.
Up to 10 threshold sets can be stored in internal memory, allowing users to measure PON signals against pre-set
thresholds based on different measurement points in the FTTH network.
This unit runs 36 hours on 3 AAA batteries, and has 10-minute shutdown feature.
