WaveSource Pro series fiber optic light sources
WaveSource Pro series fiber optic light sources offer the fiber optic professional a wide range of options for their testing needs. Different combinations of multimode, singlemode, and VFL ports are available:

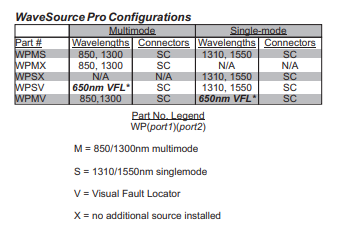

WPMX
-- Multimode 850/1300nm
WPMV
-- Multimode 850/1300nm; VFL
WPSX
-- Singlemode 1310/1550nm
WPSV
-- Singlemode 1310/1550nm; VFL
VFLs can be used in both multimode and singlemode fibers.
WPMS
-- quad-wave (MM: 850/1300nm; SM: 1310/1550nm)
All versions of the WaveSource Pro have two transmission modes: Continuous Wave (CW) for accurate temperature-stabilized fiber optic tests; and modulated mode.
In addition, WaveSource Pro light sources speed up the testing process through an advanced feature called AUTO mode when used with a Fiber OWL 7 optical power meter.
While in AUTO mode, both the WaveSource Pro and Fiber OWL 7 automatically switch between two wavelengths, so that both wavelengths can be measured simultaneously. This eliminates much of the guesswork during testing, and saves valuable time.
WaveSource Pro light sources come configured with SC connector ports.

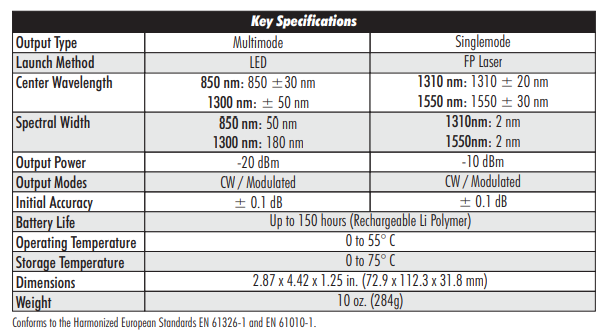

KEY BENEFITS
- Highly stabilized
- Rugged and Economical
- Output Power: -10 dBm (singlemode sources)
- Output Power: -20 dBm (multimode sources)
- CW or modulated output
- Compact Size
- Photodiode Compensated
- Extended Battery Life
- Low Battery Indicator
- NIST Traceable
- SC fiber connectors (ST or FC available upon request)
- Models can include different combinations of singlemode, multimode, and/or VFL light sources
Small, hand-held size - Automatic Wavelength detection when used with the Fiber OWL 7 optical power meters!
