MTP®/MPO Trunk Cable Assemblies

Name: Patch Cable, MTP®/APC, OS2 Singlemode 9/125 Micron, 16 Fiber
Brand: LightWave
SKU: MTF-MTF-16-OS2-001MB
Price: 124.86 USD
Availability: InStock

MTP® Female to MTP® Female, 16 Strand, Corning G657A1 Singlemode 9/125 Micron, OFNP Yellow Jacket

MTP-16TM Multi-fiber Optical Connector Supports Next Generation 400G Applications

The MTP^® 16 Fiber connector is one of the newest addition to the US Conec MTP^® brand MPO product family. This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance, all while leveraging the proven features and technology of US Conec’s MTP^® connectors.

Comprised of the proven US Conec MT Elite® ferrule technology, the MTP-16™ connector hardware is ideal for structured cabling applications supporting parallel or duplex links that require low insertion loss, using the MTP-16™ connectors for high density trunk cables efficiently aggregate 8 lane QSFP+/QSFP28 links while directly coupling into emerging 16x25G active devices.

The MTP-16™ connector family encompasses the 16 fiber MT ferrule, connector hardware, and bulkhead adapters. Utilizing the same external footprint as the existing traditional 12 fiber MT ferrule, the 16 fiber MT Elite® is available in one or two rows of 16 fibers and leverages all the proven features and technology of US Conec’s traditional PPS MT ferrules. The connector hardware offers a unique keying feature as opposed to the centered keying feature on the traditional MPO hardware. This new keying design, currently being standardized by TIA 604-18 (FOCIS 18) and IEC (61754-7-3), ensures proper mating of the MTP-16™ connector without inadvertently mating the 16 fiber connector hardware with standard MPO compliant hardware.The MTP-16™ adapters are available in full or reduced flange mounting and opposed or aligned key orientation.

In today’s High Density Data Center environments managers are taking advantage of the most innovative fiber optic technology to date. The HD8² 3.0mm MTP brand multi-fiber MPO cables accomplish more with less cable clutter.

The MTP brand connector is an improved version of the MPO style connector, offering features that benefit the user to get the best possible connection, including a removable housing for reworking the ferrule or changing the connector gender post-assembly.

Other features such as the patented ferrule float and stainless steel guide pin tips (available on male versions) help offer greater durability and accuracy. With this 16-strand fiber optic cable, you can perform an array of functions at a fraction of the space used by standard connector cables.

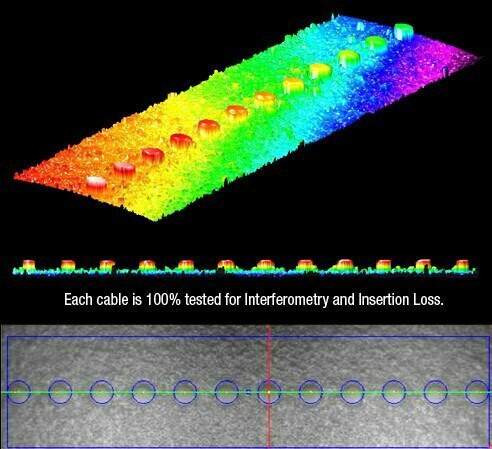

Each cable is assembled in-house our local facility, and tested for interferometry and insertion loss, so enjoy the American-made quality and high performance that LightWave cables provide.

LightWave brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.

Specifications

Simplex 3.0mm cable
9/125um OS2 Corning G657A1 Glass
Plenum-Rated OFNP Yellow Jacket
16-Fiber count
Nominal Diameter: 3.0mm
Bend Radius: 1.8in (Installation), 1.2in (Long-term)

0.55mm guide pins; 5.3mm guide pin pitch
16 Fibers per row
High Density; fiber pitch: 0.25mm
Highly glass filled for dimensional stability and stable environmental performance
Low hygroscopic PPS material for stable environmental performance
Low insertion loss optimized for 800G link applications
Mold marks to indicate fiber type, fiber count and performance
Pre-angled ferrule for minimized polishing time

FTTx hardened connector cabling infrastructure
MTP 16™ brand MPO-16 cable assemblies
Standards Compliance IEC 61754-7-3; 61754-7-4
Standards Compliance TIA 604-18
400G DR8 (8X50G) 16 Fiber
800G DR8 (8X100G) 16 Fiber
800G FR8 (8X100G) 16 Fiber

Connector Side A	MTP/APC 16 Fiber	Connector Side B	MTP/APC 16 Fiber
Ferrule Type Side A		Ferrule Type Side A
Insertion Loss Maximum Side A	≤0.50dB	Insertion Loss Maximum Side B	≤0.50dB
Insertion Loss Typical	0.25dB	Insertion Loss Typical	0.25dB
Return Loss	≥60dB	Return Loss	≥60dB
===============	====================	==================	==================
Cable Type	OS2 9/125μm	Wavelength	1310/1550nm
Fiber Count	16	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Polarity	Type A, B or C	Cable Outer Diameter	3.0mm
Cable Jacket	OFNP Plenum	Sub Unit Outer Diameter	N/A
Bend Radius, No Load	10x cable overall diameter	Bend Radius, Load	15x cable overall diameter
===============	====================	==================	==================
Wavelength	1 Gb Distance Max.	Wavelength	10 Gb Distance Max.
1310nm	> 25,000 Meters	1310nm	10,000 - 25,000 Meters
1550nm	> 40,000 Meters	1550nm	40,000 Meters
Operating Temperature	0° to 70°C (32° to 158°F)	Storage Temperature	-40° to 70°C (-40° to 158°F)
