MTP® Elite Female to MTP® Elite Female, 12 Strand, Corning Multimode 50/125 Micron, OFNP Aqua Jacket
MTP® Connectors
US Conec offers a full suite of MTP® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

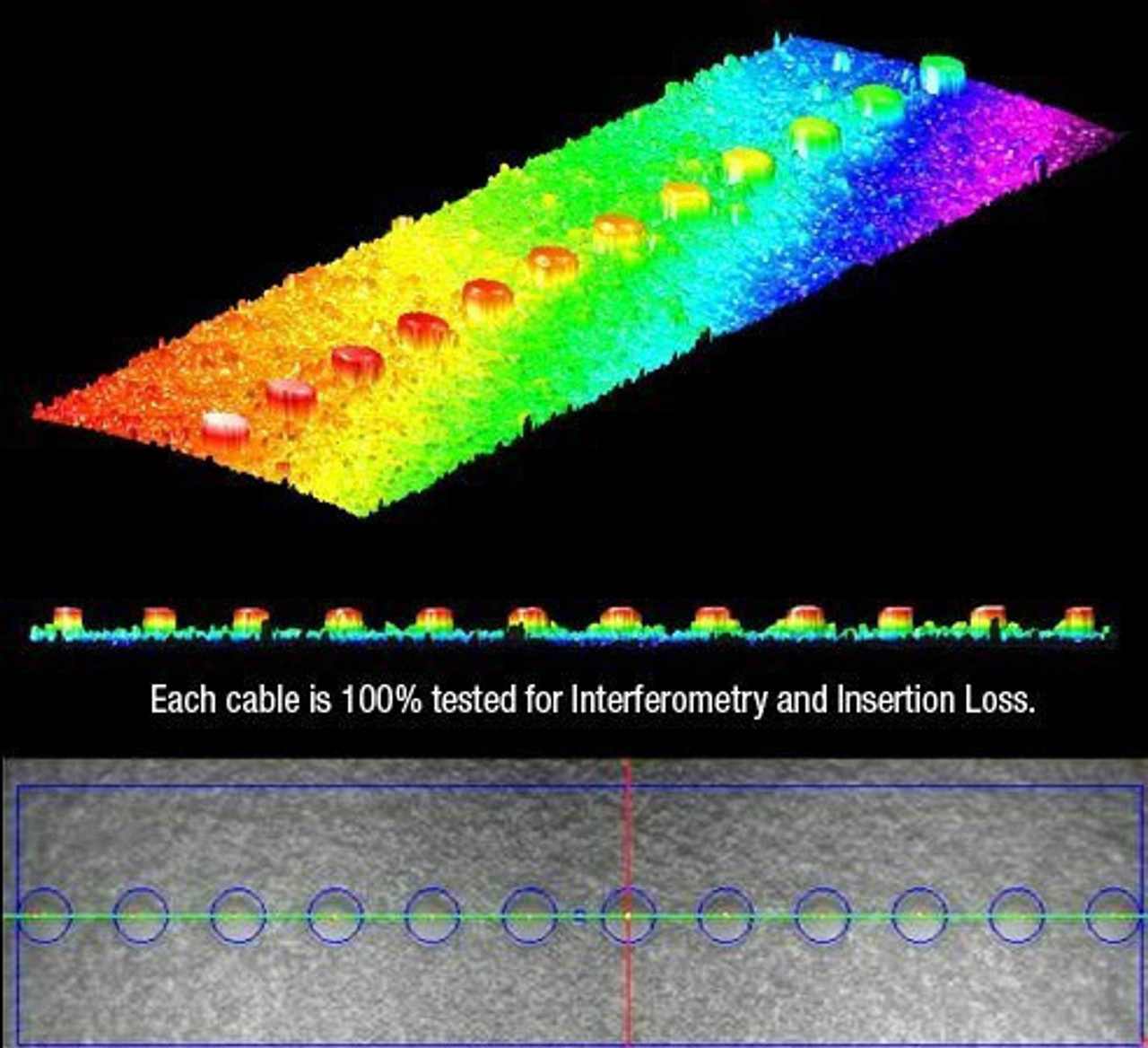

Precision Optical Components
At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component. US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind. Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.
Applications
- FTTx hardened connector cabling infrastructure
- MTP® brand MPO cable assemblies
- Optical backplane connectivity for OBO architectures
- Standards Compliance IEC 61754-5
- Standards Compliance IEC 61754-7-1; 61754-7-2
- Standards Compliance TIA 604-5
Features
- 12 Fibers per row
- 0.7mm guide pins; 4.6mm guide pin pitch
- High Density; fiber pitch: 0.25mm
- Highly glass filled for dimensional stability and stable environmental performance
- Low hygroscopic PPS material for stable environmental performance
- Low insertion loss optimized for 40G, 100G and 400G link applications
- Mold marks to indicate fiber type, fiber count and performance
Specifications
- 50/125um OM3 Corning Glass
- Plenum-Rated OFNP Aqua Jacket
- 12-Fiber count
- Nominal Diameter: 3.0mm
- 40G SR4 (4X10G) 8 Fiber
- 100G SR4 (4X25G) 8 Fiber
- 200G SR4 (4X50G) 8 Fiber
- 400G SR4 (4X100G) 8 Fiber
- Bend Radius: 1.8in (Installation), 1.2in (Long-term)
| onnector Side A |
MTP/UPC Elite Low Loss 12 Fiber | Connector Side B |
MTP/UPC Elite Low Loss 12 Fiber |
| Ferrule Type Side A |
|
Ferrule Type Side B |
|
| Insertion Loss Maximum Side A |
≤0.35dB | Insertion Loss Maximum Side B |
≤0.35dB |
| Insertion Loss Typical |
0.10dB | Insertion Loss Typical |
0.10dB |
| Return Loss | ≥20dB | Return Loss | ≥20dB |
| =============== |
==================== | ================== |
================== |
| Cable Type |
OM3 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 12 | Fiber Grade | Corning ClearCurve Glass |
| Polarity | Type A, B & C available | Cable Outer Diameter | 3.0mm |
| Cable Jacket | OFNP Plenum | Sub Unit Outer Diameter | N/A |
| Bend Radius, No Load |
10x cable overall diameter | Bend Radius, Load |
15x cable overall diameter |
| =============== |
==================== | ================== |
================== |
| 1 GbE Distance Max. | 10 GbE Distance Max. | 40 GbE Distance Max. | 100 GbE Distance Max. |
| 1,100 Meters | 300 Meter | 100 Meter | 100 Meter |
| Operating Temperature | 0° to 70°C (32° to 158°F) | Storage Temperature | -40° to 70°C (-40° to 158°F) |
