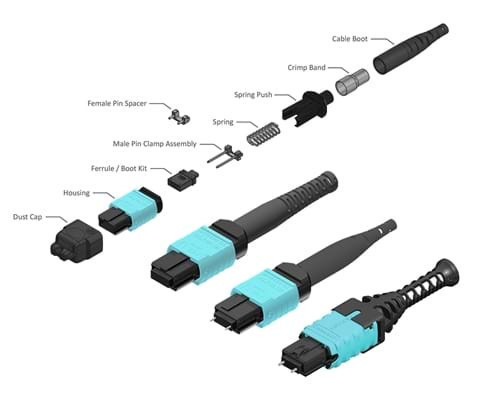

US Conec offers a full suite of MTP® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.
At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component. US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind. Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.
|Connector Side A
||MTP/UPC Elite Low Loss 12 Fiber||Connector Side B
||MTP/UPC Elite Low Loss 12 Fiber|
|Ferrule Type Side A
|Ferrule Type Side B
|Insertion Loss Maximum Side A
||≤0.35dB||Insertion Loss Maximum Side B
|Insertion Loss Typical
||0.10dB||Insertion Loss Typical
|Return Loss||≥20dB||Return Loss||≥20dB|
|Fiber Count||12||Fiber Grade||Corning ClearCurve Glass|
|Polarity||Type A, B & C Available||Cable Outer Diameter||3.0mm|
|Cable Jacket||OFNP Plenum||Sub Unit Outer Diameter||N/A|
|Bend Radius, No Load
||10x cable overall diameter||Bend Radius, Load
||15x cable overall diameter|
|1 GbE Distance Max.||10 GbE Distance Max.||40 GbE Distance Max.||100 GbE Distance Max.|
|1,100 Meters||300 Meter||100 Meter||100 Meter|
|Operating Temperature||0° to 70°C (32° to 158°F)||Storage Temperature||-40° to 70°C (-40° to 158°F)|
