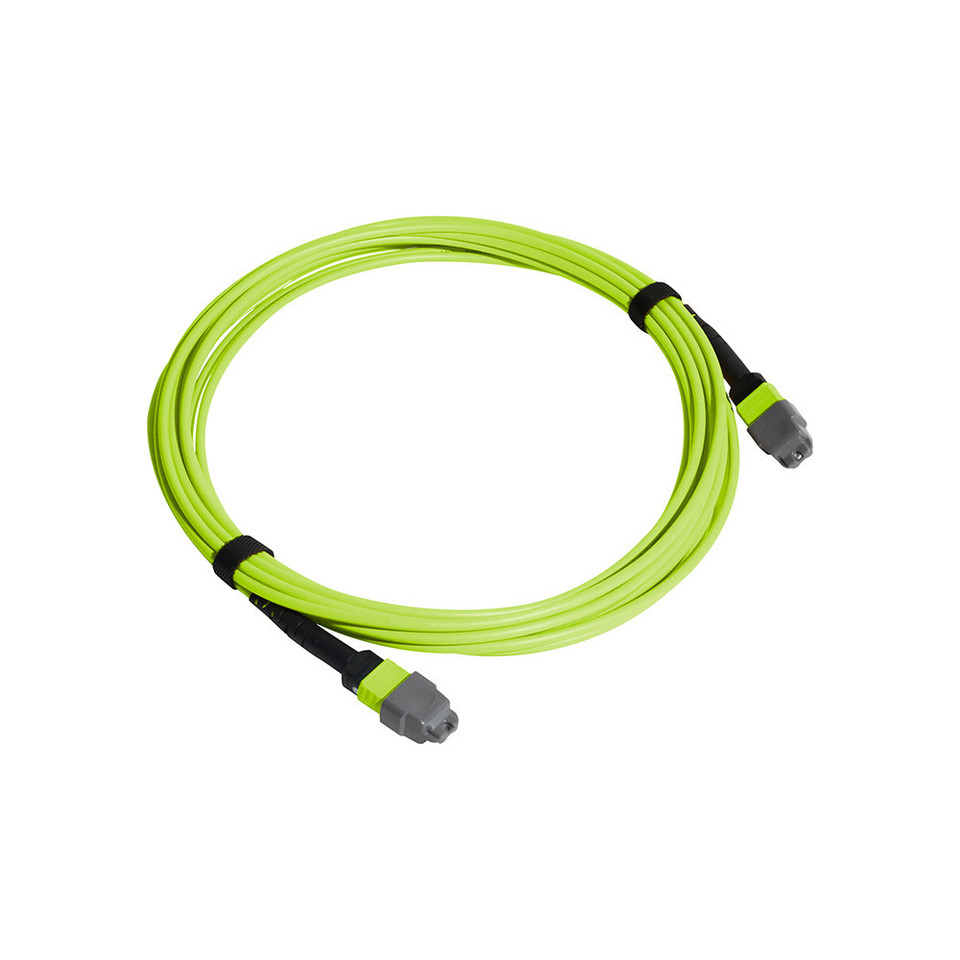

Patch Cable, MTP® Elite/UPC, OM5 Multimode 50/125 Micron, 8 Fiber

Patch Cable, MTP® Elite/UPC, OM5 Multimode 50/125 Micron, 8 Fiber

Item#:
MTF-MTF-08-OM5-001MB
List Price: $71.97
$47.98
(You save $23.99 )
Condition:
New
Availability:
Made To Order, Normal lead-time 15 - 21 Days ARO
Weight:
0.25 LBS
Bulk Pricing:
Buy in bulk and save
Customer Service

Need Help?

Speak to one of our experts.

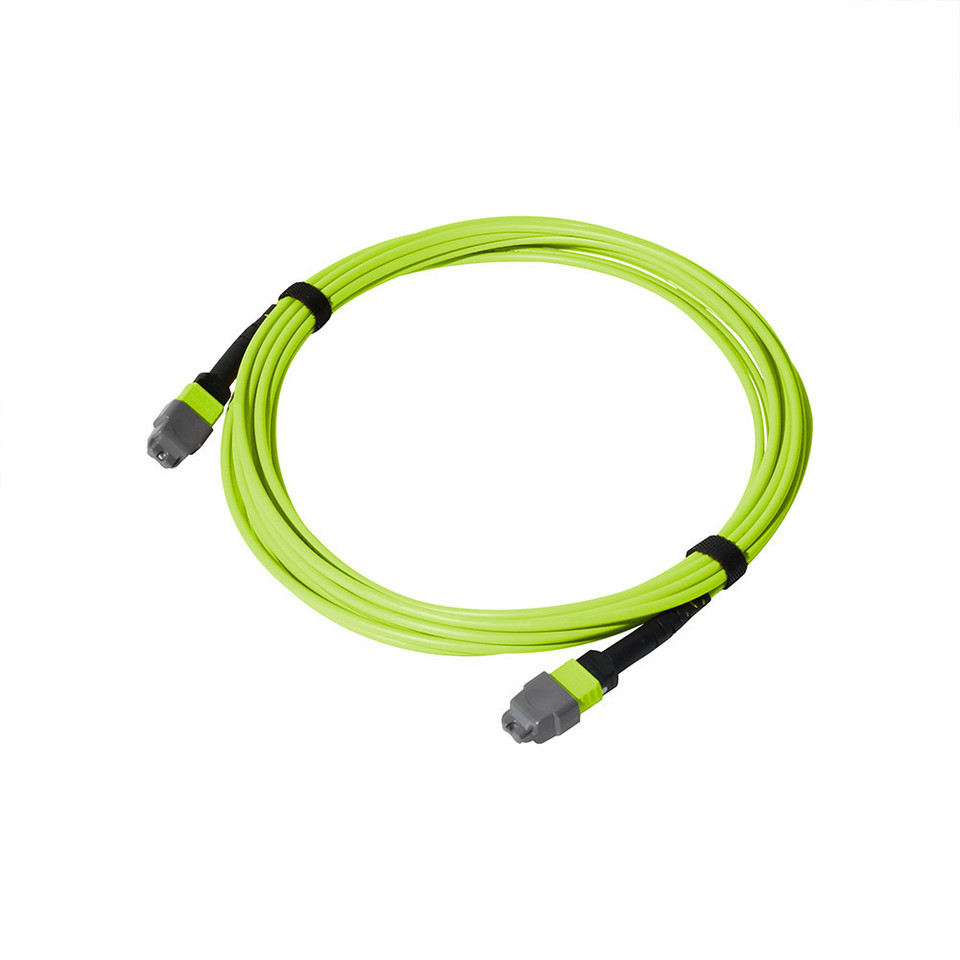

MTP® Elite Female to MTP® Elite Female, 8 Strand, Corning Multimode OM5 50/125 Micron, OFNP Lime Green Jacket, Rollover (Type B) Pinout

Patch Cable, MTP® Elite/UPC, OM5 Multimode 50/125 Micron, 8 Fiber

List Price: $71.97
$47.98
(You save $23.99 )

Patch Cable, MTP® Elite/UPC, OM5 Multimode 50/125 Micron, 8 Fiber

List Price: $71.97
$47.98
(You save $23.99 )

MTP®/MPO Trunk Cable Assemblies

MTP® Elite Female to MTP® Elite Female, 8 Strand, Corning Multimode OM5 50/125 Micron, OFNP Lime Green Jacket

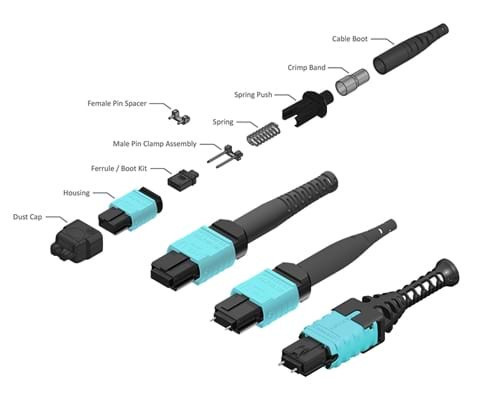

MTP® Connectors

US Conec offers a full suite of MTP® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

Precision Optical Components

At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component.  US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind.  Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.

Applications

  • FTTx hardened connector cabling infrastructure
  • MTP® brand MPO cable assemblies
  • Optical backplane connectivity for OBO architectures
  • Standards Compliance IEC 61754-5
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5

Features

  • 8 Fibers per row
  • 0.7mm guide pins; 4.6mm guide pin pitch
  • High Density; fiber pitch: 0.25mm
  • Highly glass filled for dimensional stability and stable environmental performance
  • Low hygroscopic PPS material for stable environmental performance
  • Low insertion loss optimized for 40G, 100G and 400G link applications
  • Mold marks to indicate fiber type, fiber count and performance

Specifications

  • 50/125um OM5 Corning Glass
  • Plenum-Rated OFNP Lime Green Jacket
  • 8-Fiber count
  • Nominal Diameter: 3.0mm
  • 40G SR4 (4X10G) 8 Fiber
  • 100G SR4 (4X25G) 8 Fiber
  • 200G SR4 (4X50G) 8 Fiber
  • 400G SR4 (4X100G) 8 Fiber
  • Bend Radius: 1.8in (Installation), 1.2in (Long-term)
Connector Side A
MTP/UPC Elite Low Loss 8Fiber Connector Side B
MTP/UPC Elite Low Loss  Fiber
Ferrule Type Side A

Ferrule Type Side B

Insertion Loss Maximum Side A
≤0.35dB Insertion Loss Maximum Side B
≤0.35dB
Insertion Loss Typical
0.10dB Insertion Loss Typical
0.10dB
Return Loss ≥20dB Return Loss ≥20dB
===============
==================== ==================
==================
Cable Type
OM5 50/125μm Wavelength 850/1300nm
Fiber Count 8 Fiber Grade Corning ClearCurve Glass
Polarity Type A, B & C Available Cable Outer Diameter 3.0mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
1 GbE Distance Max. 10 GbE Distance Max. 40 GbE Distance Max. 100 GbE Distance Max.
1,100 Meters 300 Meter 100 Meter 100 Meter
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)
