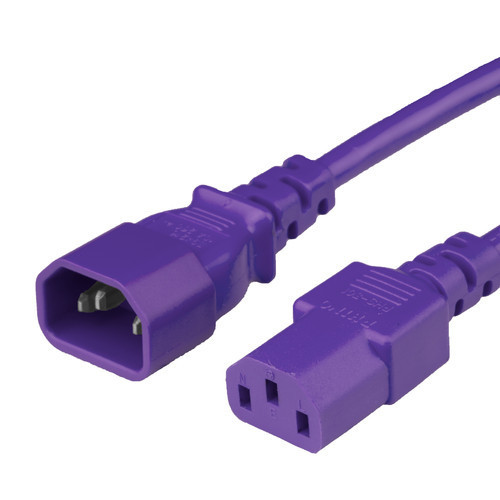

Part Number: 1413-H-xxx-PUR Power Cord, C14 to C13, 14/3 AWG, 15Amp, 250V SJT Jacket, Purple
15A IEC 60320 C14 to C13 Jumper Cords are the "Heavy Duty" version of the 10A C14-C13. With thicker 14AWG cordage, it can handle currents up to 15A. The standard Rack Mount PDU has C13 outlets, which mate with the C14 plug on this jumper cord. Most servers, routers, switches, etc have C14 inlets on the PSU's (Power Supply Units) which mate with the C13 female connector on this jumper cord. Coming in a variety of colors, data centers typically choose a RED power cord for the primary power supply and a BLUE Power cord for the secondary power supply. This allows for easy identification of the primary and secondary power sources and reduces server downtime by decreasing accidental power failure. We offer Black, Blue, Gray, Green, Orange, Pink, Purple, Red, White, and Yellow colors to suite your specific color code. We stock several standard lengths ranging from 1' to 20'. Standard wire gauge is 14AWG.
The IEC 60320 C13 is a grounded 3 Wire connector rated up to 250V and 15 Amps. The C13 mates with a C14 inlet, and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. Most people know the C13 as 'the thing that plugs into my computer' because it is the standard connector used to power most desktop computers. In a desktop computer application, the most common cable is the NEMA 5-15P to C13, which connects your standard North American wall outlet to a desktop computer.
The IEC 60320 C14 is a grounded 3 Wire Plug rated up to 250V and 15 Amps. The C14 mates with a C13 outlet, typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C14 is in a jumper cable scenario, providing power from a PDU to IT Equipment.
|SJT - Stranded Junior Thermoplastic
This below list may not be a complete list of the applicable countries for this product. Contact us if you are inquiring about a specific country.
