Item Part Number:   WAC-8X

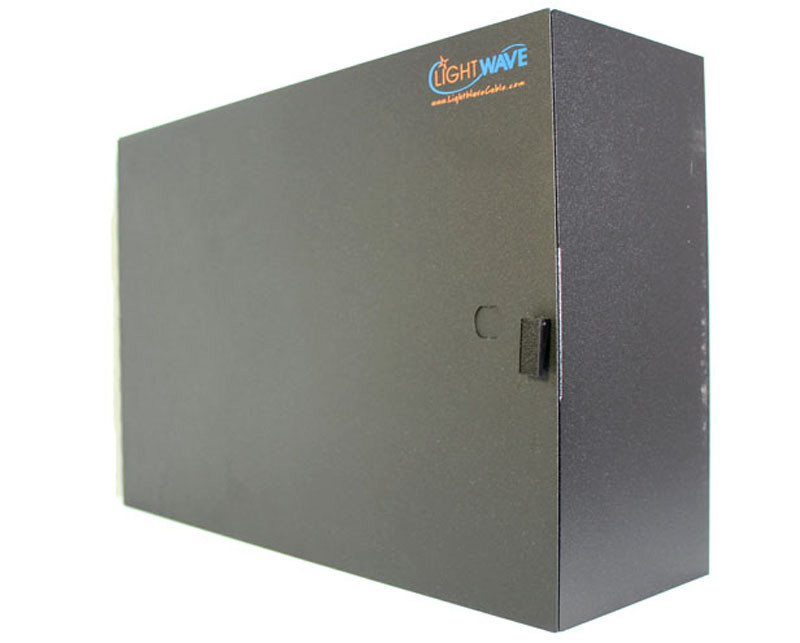

The LightWave WAC-8X is a LGX Compatible Patch Panel. This Wall-mount enclosure accommodates a up 8 panels (6-, 8-, 12- or 24- fiber LGX panels.) (24 Port Panels only available in LC connectors.). 16-gauge steel with corrosion-resistant black powder finish coat. Front features a latch and a swing-out door to allow for easy access to the cabling and adapter panel. One punch-out hole in the back included for backbone wiring. When closed, wall-mount is lockable with a 1" keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables.

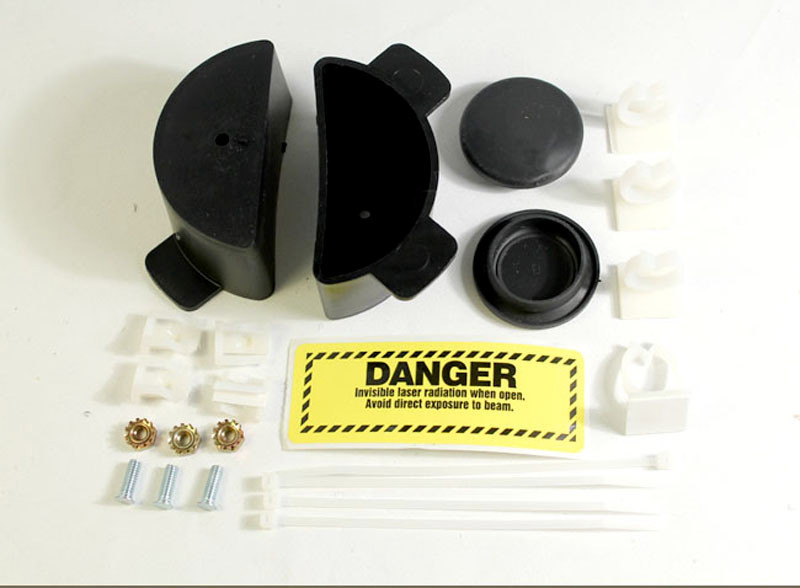

Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.

Specifications

• Dimensions: Width = 17", Depth = 5.87", Height = 12.2" Weight: 12.7 lbs

The LGX Patch Panel provides cross connection capabilities incorporated within a compact bulkhead design. This unit is wall mountable with an industry-standardized design made to fit in existing server enclosures. Our LGX Patch Panels come with universal mounting hardware and are ideal for the storage of splice trays.
