EasyCheck Dual Magnification Fiber Endface Inspector

Product Overview

The double rate fiber end face detector of Dimension Technology achieves fast and effective detection of fiber end face quality at double rate through dual screen display or switching display It can detect fine defects at high rate and acute large area detection at low rate The advantage of this device is that one workstation, one device, and one focus can achieve double rate fiber end face detection, saving detection workstations, improving detection efficiency, and reducing production costs. Dimension’s dual magnification fiber endface Inspector can quickly and efficiently inspect the quality of fiber end-faces under double-magnification through two screen simultaneous display or switch display. Under large magnification, it can inspect fine defects on the endface of fiber. The advantage of this equipment is that one station, one device, and one focusing can realize fiber endface inspection at double rate, saving inspection stations, improving inspection efficiency and reducing production costs.

Main Features

• One focus, double rate effective detection
• Clear image quality
• A comprehensive interface group
• Automatically scan and store images (EC400/200)
• Optional foot switch switching ratio (EC400/200)

Applications

• EC200/80KML: Fiber connectors, transceivers, TOSA/ROSA etc
• EC400/200KC: Fiber connectors
• EC200/40KC is mainly used for end face inspection of various products such as fiber optic connectors, TOSA/ROSA components, etc;

Dual Magnification Inspector

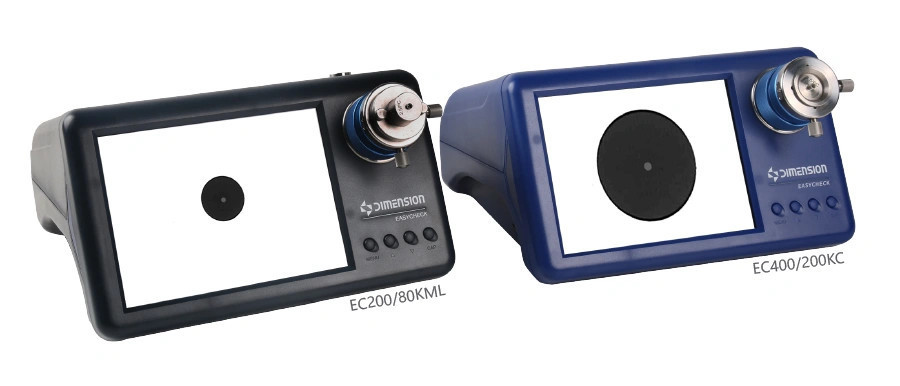

With one focus, EC200/80KML can simultaneously view the condition of the 200X and 80X double magic lower end faces through dual screens, and can also switch magic through buttons; EC400/200 switches between 400X and 200X magnetization through buttons or foot switches (optional) Detecting fine defects at high magnetization and detecting large areas at low magnetization can save inspection workstations, improve inspection efficiency, and reduce production costs.

Clear image quality

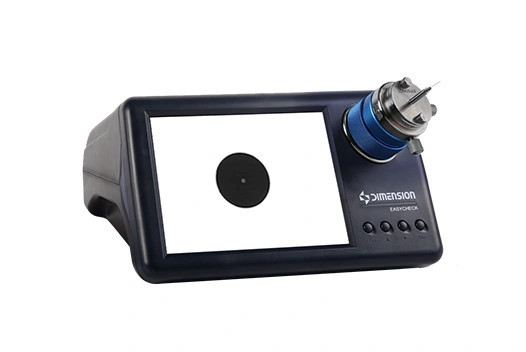

The EasyCheck double rate fiber optical end face detector utilizes the optimal optical system design, high resolution image sensors, and an 8 "pure black and white digital TFT&Nbsp; The monitor truth displays the detailed appearance of the fiber optical end face for you.

EasyCheck Adapters

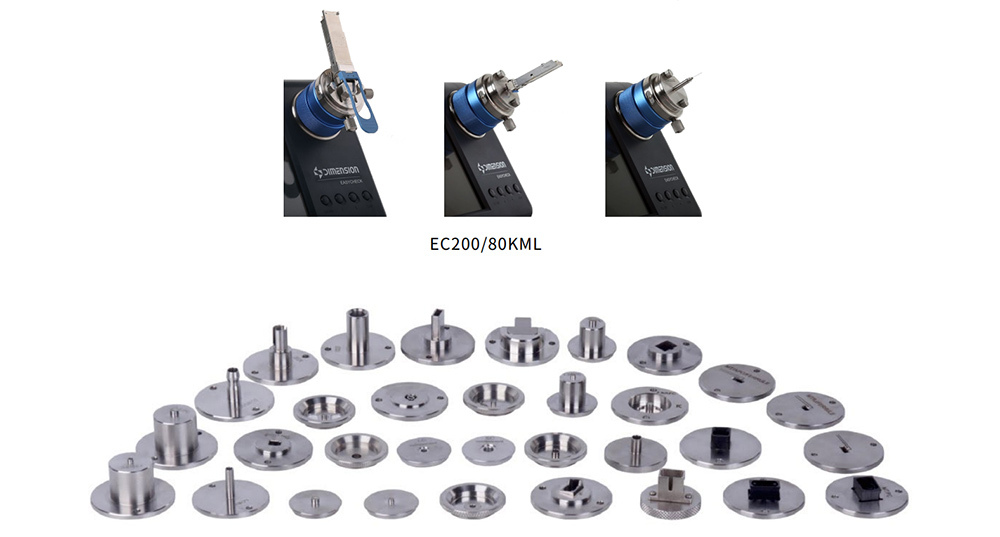

Easycheck dual magnification fiber endface Inspectors are equipped with a variety of adapting interfaces, which can meet the testing requirements of various products such as  fiber connectors, transceivers ,  TOSA/ROSA  etc.

Convenient auxiliary functions(EC400/200KC)

In order to meet the operability of production line employees, the function of automatic scan code and storage of pictures is added, and the foot switch triggers the double rate switching function, which is more convenient and flexible to use.
