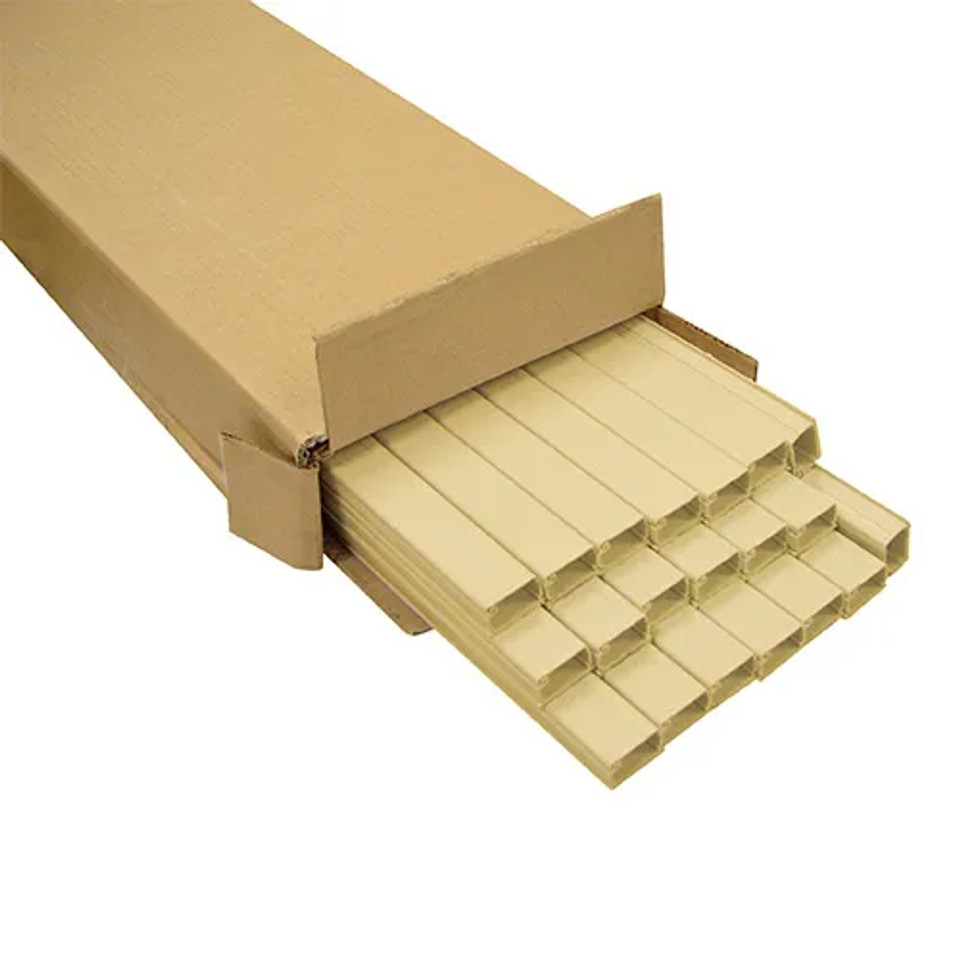

Raceway Pre-Adhesive Backed Latch Duct Raceway, 1-3/4" x 6', (120 Feet Case)
Multilinks Latch Duct Interior Plastic Raceway System is a 1 piece design that hinges open for installation access. The molding can be used to route and protect cabling for low voltage data, voice, video, and fiber optic applications. Fittings are available for routing direction changes, extending, and terminating the molding. All bases incorporate a 1” minimum bend radius as recommended for fiber optic cables. The molding is manufactured using a special purpose profile extrusion alloy resin and the fittings are manufactured using an injection grade resin. The product can be painted with latex paint.
- Architectural MultiRaceway holds communication cables to a 1 inch bend radius, thus maintaining end to end connectivity even when filled to capacity or pulled through the raceway.
- Category 5, 5E and 6 1" bend radius compliant.
- Fast mounting one piece design.
- The MRM Series Latch Duct Raceway is an adhesive backed, highly flexible, one piece design that installs quickly and easily.
- The one piece design constructed of 94V-O rigid vinyl features a highly flexible hinge and self-locking latch.
- This can be easily accessed as many times as necessary without stress cracking or discoloration.
| General Specifications |
| Fungus Resistance |
ASTM G21 Zero Rating Per GR 3126 Requirement |
| UOM |
120 ft. / Carton |
| Crush Resistance |
300 lbs. per GR3126 Requirement |
| Application |
Indoor |
| Warranty |
1 Year Defects In Workmanship / 10 Year Environmental |
| Chemical Resistance |
Retains a minimum of 50% of tensile strength after 30 day exposure to 3% H2SO4, .2N NaOH, NH3, 90% Alcohol, Kerosene, 10% lgepal |
| General Specifications |
| Installation Temperature Range |
-18°C to 45°C (0°F to 113°F) |
| Physical Specifications |
| Dimensions |
1.36" x .78" x 6' |
| Weight |
23 Lbs. / Ctn |
| Color |
Ivory, White, Office White
|
| Material |
Rigid Flexible PVC |
| Environmental Specifications |
| Operating Temperature |
-18°C to 58°C (0°F to 136°F) |
| Safety Standard Specifications |
| Safety Standard |
UL 2024:2014 Ed. 5 and CSA C22.2 #262:2004 Ed. 1 Optical Fiber Cable and Communication Cable Raceway Systems (Select Colors) |
