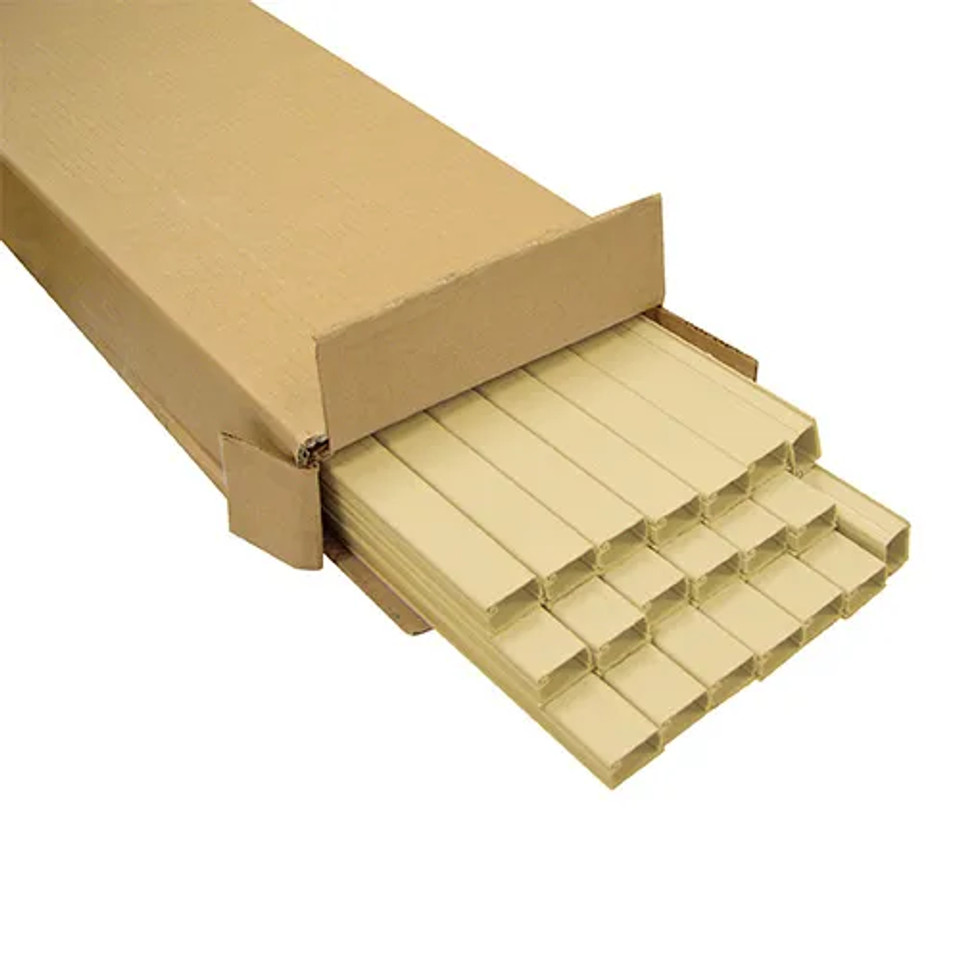

Raceway 3/4"W x 1/2"H x 6'L (Box of 20; Total: 120').
This single channel raceway provides an excellent solution for routing and concealing low voltage and fiber optic cabling along walls. Its one-piece design allows for an easy installation even when filled to capacity. It also accommodates a wide variety of outlet boxes.
Multilinks Latch Duct Interior Plastic Raceway System is a 1 piece design that hinges open for installation access. The molding can be used to route and protect cabling for low voltage data, voice, video, and fiber optic applications. Fittings are available for routing direction changes, extending, and terminating the molding. All bases incorporate a 1” minimum bend radius as recommended for fiber optic cables. The molding is manufactured using a special purpose profile extrusion alloy resin and the fittings are manufactured using an injection grade resin. The product can be painted with latex paint.
| General Specifications | |
| Fungus Resistance | ASTM G21 Zero Rating Per GR 3126 Requirement |
| UOM | 120 ft. / Carton |
| Crush Resistance | 300 lbs. per GR3126 Requirement |
| Application | Indoor |
| Warranty | 1 Year Defects In Workmanship / 10 Year Environmental |
| Chemical Resistance | Retains a minimum of 50% of tensile strength after 30 day exposure to 3% H2SO4, .2N NaOH, NH3, 90% Alcohol, Kerosene, 10% lgepal |
| General Specifications | |
| Installation Temperature Range | -18°C to 45°C (0°F to 113°F) |
| Physical Specifications | |
| Dimensions | 1.36" x .78" x 6' |
| Weight | 23 Lbs. / Ctn |
| Color | Ivory, White, Office White |
| Material | Rigid Flexible PVC |
| Environmental Specifications | |
| Operating Temperature | -18°C to 58°C (0°F to 136°F) |
| Safety Standard Specifications | |
| Safety Standard | UL 2024:2014 Ed. 5 and CSA C22.2 #262:2004 Ed. 1 Optical Fiber Cable and Communication Cable Raceway Systems (Select Colors) |
