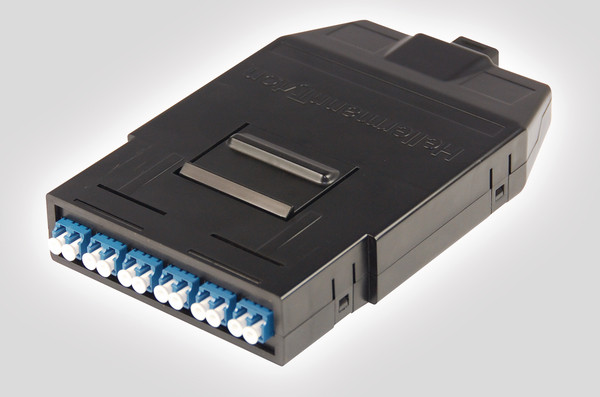

RapidNet Cassette, 12 Fiber, OS2, LC Front with 1 Rear MTP Connector

RapidNet Cassette, 12 Fiber, OS2, LC Front with 1 Rear MTP Connector

click to zoom in

RapidNet Cassette, 12 Fiber, OS2, LC Front with 1 Rear MTP Connector

Fiber LC 12 Core Cassette with 1 Rear MTP Connector, Front View

Fiber LC 12 Core Cassette with 1 Rear MTP Connector, Top View

Item#:: RNGFD12

List Price: $275.00

$183.14

(You save $91.86 )

Condition:: New
Weight:: 0.50 LBS

Current Stock:

Quantity:

Need Help?

Speak to one of our experts.

804-716-9007

RapidNet Cassette, 12 Fiber, OS2, LC Front with 1 Rear MTP Connector

List Price: $275.00

$183.14

(You save $91.86 )

Description
Downloads

Description

Base Product Data

RapidNet Cassette, 12 fiber, (1) MTP Elite/APC (Male) to 12 LC/UPC, Singlemode, 9/125um OS2

Details:

Up to 48 fibres in 1U of Space
Significantly reduced installation times
Available in OM3, OM4, OS2 and OS1
Dual labelling fields
Interchangeable with other RapidNet Cassettes
MTP rear connector ideal for installations in areas of limited space
Pre-tested with test results supplied

Connector Color	Blue
Connector Type	LC, MTP
Description	The RapidNet Fibre LC Cassette with MTP connectivity is pre-terminated offering LC connectivity in either single mode or multimode. The RapidNet LC cassette offers up to 12 Fiber/6 Port in one cassette and has 1 MTP connector on the rear of the case for use with MTP back bone cables or fibre fan outs. The presentation of 12 Fiber/6 Port in one cassette enables up to 48 fibres in 1U of rack space, with 4 cassettes fitting into a RapidNet Patch Panel. The RapidNet LC Cassette with MTP connectivity solution has been designed to make installation quicker and easier, especially where space is limited, by providing reduced installation times, efficient use of space, flexible configurations and high performance.
Part Number	RNGFD12
UK Number	RNFMD12-LCMMS2-XX.XX
Performance Category	OS2 Single Mode
Port count	12 Fiber/6 Port
Product Family	Cassette with 1 Rear MTP Connector
Product Group	RapidNet Fibre LC 12 Fiber
Short Description	OS2 RapidNet Fibre LC 12 Fiber Cassette with 1 Rear MTP Connector
Technical Description	The cassette is manufactured with a single push clip mechanism and polarising clips to prevent incorrect insertion. Fibre Optic management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. The individual fibres within the cassette are managed using positive bend radius management to ensure minimum losses and maximum performance. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C standards.
