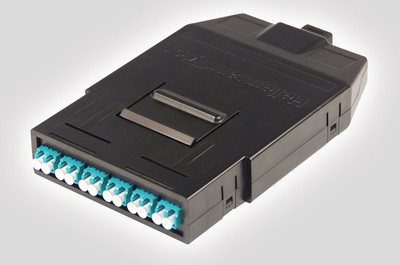

RapidNet Ultra Cassette, 12 fiber, (1) MTP Elite/UPC (Male) to 12 LC/UPC, Multimode, 50/125um OM4
Details:
| Connector Color | Aqua |
| Connector Type | LC, MTP |
| Description | The RapidNet Ultra Fiber LC Cassette with MTP connectivity is pre-terminated offering LC connectivity in either single mode or multimode. The RapidNet Ultra LC cassette offers up to 12 Fiber/6 Port in one cassette and has 1 MTP connector on the rear of the case for use with MTP back bone cables or fiber fan outs. The presentation of 12 Fiber/6 Port in one cassette enables up to 144 fibers in 1U of rack space, with 8 cassettes fitting into a RapidNet Ultra Patch Panel. The RapidNet Ultra LC Cassette with MTP connectivity solution has been designed to make installation quicker and easier, especially where space is limited, by providing reduced installation times, efficient use of space, flexible configurations and high performance. |

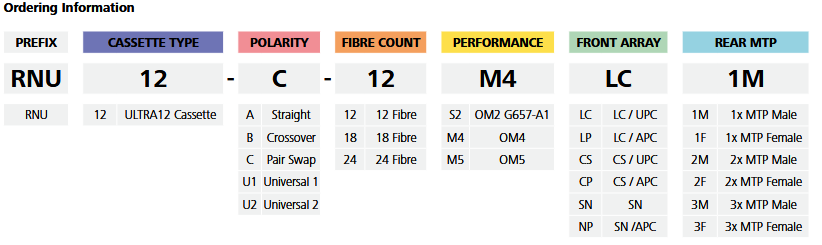

| Part Number |
RNU12p12M4LC1M
|
| Performance Category | OM4 50/125 Multimode |
| Port count | 6 Port / 12 Fiber |
| Product Family | Cassette with 1 Rear MTP Connector |
| Product Group | RapidNet Ultra Fiber LC 12 Fiber |
| Short Description | OM4 RapidNet Ultra Fiber LC 12 Fiber Cassette with 1 Rear MTP Connector |
| Technical Description | The cassette is manufactured with a single push clip mechanism and polarizing clips to prevent incorrect insertion. Fiber Optic management is provided within the RapidNet Ultra Cassette with integral strain relief which provides protection to all the cables and their terminations. The individual fiber within the cassette are managed using positive bend radius management to ensure minimum losses and maximum performance. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C standards. |
