Base Product Data

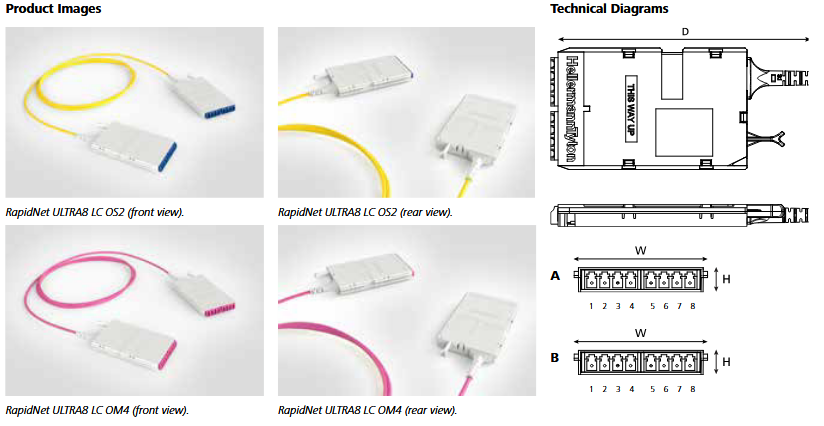

RapidNet ULTRA8 Cassette to Cassette Assembly - 8F Multimode OM4

Product Description:

RapidNet ULTRA8 Cassette to Cassette looms are designed to offer localized patching fields at both ends of the link. This configuration is beneficial when there isn’t the immediate requirement to utilize all the ports.

Looms are factory terminated and tested offering best in class ultra low loss connectivity for rapid deployment of ULTRA8 fibre systems, supporting the increasing demand on data centers. Cassette to Cassette looms offer lower insertion loss compared to typical cassette and backbone cable configurations.

The compact design allows for a ultra high density installations to be realized, maximizing critical connectivity real estate. RapidNet ULTRA8 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fiber capacity from 8 fibers (LC) to either 12 fibers (CS) or 16 fibers (SN).

Looms can be produced to your required length in either single or double jacket constructions.

Cassette to Cassette looms are made with 3.0mm single jacket cables which contain Corning® SMF-28® fibers for Singlemode and ClearCurve® fibers for Multimode.

Features and Benefits:

• High fiber density: LC 8f, CS 12F, SN 16F per cassette
• Custom length cassette to cassette loom
• Reduced insertion loss performance
• Factory terminated & tested
• Best in class ultra-low loss connectivity
• Effortless plug & play system
• UL94 V0 compliant
• 3.0mm Single jacket or (Special Order) 4.5x0.5mm Double Jacket options
• Singlemode made with Corning® SMF28® Fibers
• Multimode made with Corning® ClearCurve® Fibers
