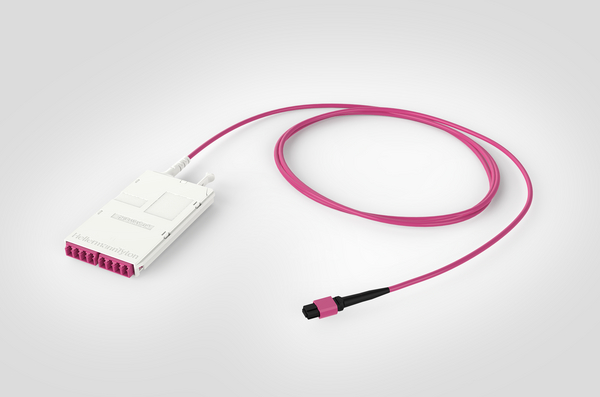

RapidNet Ultra8 - LC - MTP Elite Tethered Cassette - 8F Multimode OM4

List Price: $262.26

$236.98

(You save $25.28 )

Description
Downloads

Description

Base Product Data

RapidNet Ultra8 - LC - MTP Elite Tethered Cassette - 8F Multimode OM4

Product Description:

RapidNet ULTRA8 Tethered Cassettes are designed to facilitate transition from a single MTP connector into small form factor (SFF)or very small form factor (VSFF) connectivity patching array.

Cassettes are factory terminated and tested offering best in class ultra-low loss connectivity for rapid deployment of ULTRA8 fiber systems, supporting the increasing demand on parallel optics. Tethered Cassettes offer lower insertion loss compared to typical cassette and backbone cable configurations.

The compact design allows for a ultra-high-density installations to be realized, maximizing critical connectivity real estate. RapidNet ULTRA8 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fiber capacity from 8 fibers (LC) to either 12 fibres (CS) or 16 fibers (SN). Tethered cables can be produced to your required length with single or double jacket constructions.

Tethered cassettes are made with 3.0mm single jacket cables which contain Corning® SMF-28® fibers for Singlemode and ClearCurve® fibers for Multimode.

Features and Benefits:

High fiber density: LC 8F, CS 12F, SN 16F per cassette
Custom length MTP Elite tethered cable
Reduced insertion loss performance
Factory terminated & tested
Best in class ultra-low loss connectivity
Effortless plug & play system
Optional bare end for on-site splicing UL94 V0 compliant
3.0mm Single jacket or (Special Order) 4.5x0.5mm Double Jacket options
Singlemode made with Corning® SMF28® Fibers
Multimode made with Corning® ClearCurve® Fibers

Application	High Density Fiber System, Data center, AI, Enterprise, Co-Location, Hyperscale.
Color	Magenta (MG), White (WH)
Connector Color	Magenta (MG)
Connector Type	LC
PART DESCRIPTION	RNU8-A-08M4LCMFMxxxx
Package Content packed in	EA
Performance Category	Multimode, OM4 Multimode
Port count	8
Product Description	RapidNet Ultra8 - LC - MTP Elite Tethered Cassette - 8F Multimode OM4 - Polarity A - 10mtr
Product Family	Ultra8 LC - MTP Elite Tethered Cassette
Product Group	Data Centre High Density Fiber System - Ultra8 LC - MTP Elite Tethered Cassette
Short Description	RapidNet Ultra8 - LC - MTP Elite Tethered Cassette - 8F Multimode OM4 - Polarity A - 10mtr
Technical Description	RapidNet ULTRA8 Tethered Cassettes are designed to facilitate transition from a single MTP connector into small form factor (SFF)or very small form factor (VSFF) connectivity patching array. Cassettes are factory terminated and tested offering best in class ultra-low loss connectivity for rapid deployment of ULTRA8 fibre systems, supporting the increasing demand on parallel optics. Tethered Cassettes offer lower insertion loss compared to typical cassette and backbone cable configurations. The compact design allows for a ultra high-density installations to be realized, maximizing critical connectivity real estate. RapidNet ULTRA8 Cassettes are designed to be compatible with future VSFF connectors such as CS and SN which will take the fiber capacity from 8 fibers (LC) to either 12 fibers (CS) or 16 fibers (SN). Tethered cables can be produced to your required length with single or double jacket constructions. Tethered cassettes are made with 3.0mm single jacket cables which contain Corning® ClearCurve® Multimode fibers.
Type	RNU8-A-08M4LCMFMxxxx
Variant	Modular Fiber Assembly
