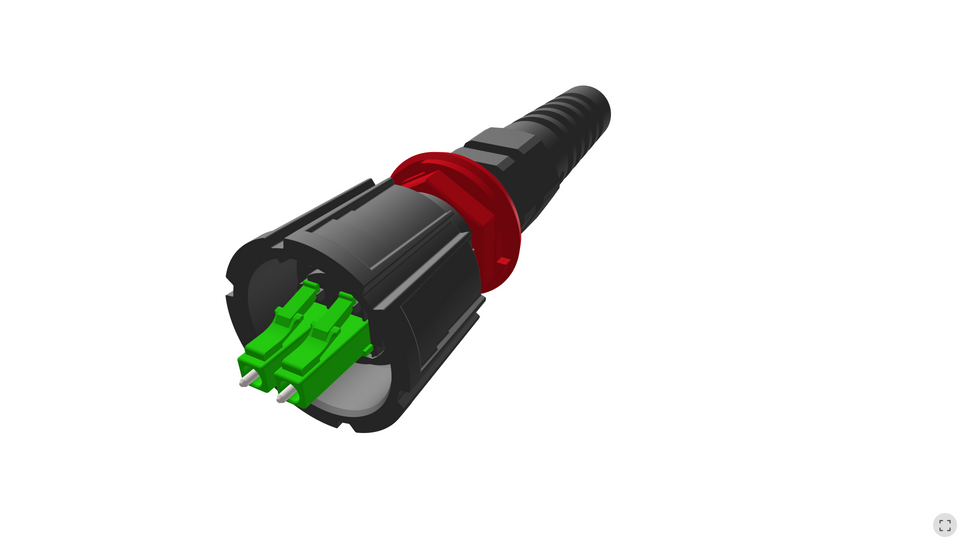

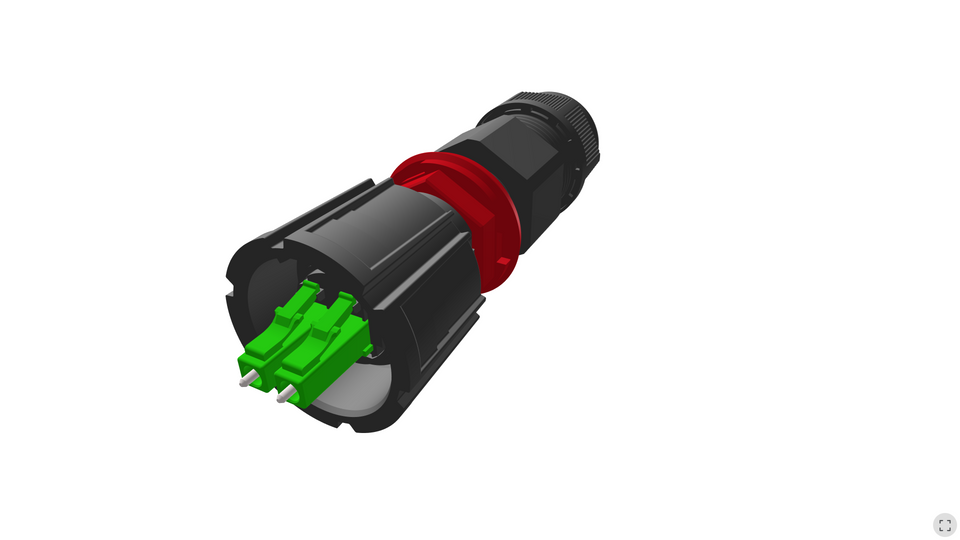

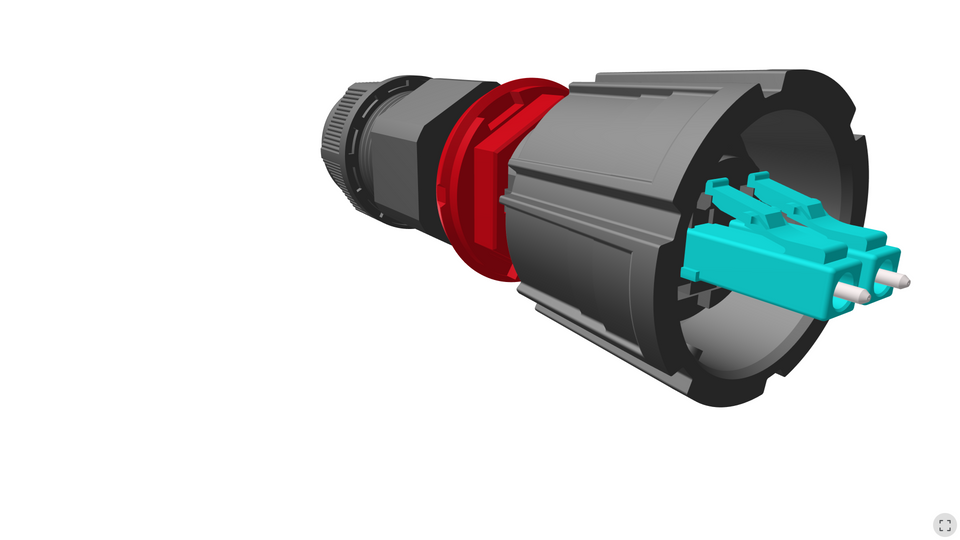

The IP-16 Series is SENKO’s flagship connectivity solution designed for outdoor applications and harsh environments. The high optical performance is paired with ergonomic mechanics for quick and easy installations. The IP-16 Series offers a IP68 rating protection with a simple bayonet mechanism, and the connector has Safe Lock Ring feature for a tamperproof protection.
| Parameters | Single-mode | Multimode | |||
| UPC | UPC | APC | APC | MM | |
| Low Loss | Standard | Low Loss | Standard | Standard | |
| Typical Insertion Loss (dB) | 0.05 | 0.08 | 0.07 | 0.12 | 0.10 |
| Max Insertion Loss (dB) | 0.15 | 0.20 | 0.15 | 0.25 | 0.20 |
| Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | ||
| Operating Temperature (°C) | – 40 to 75 | ||||
| Ferrule ø | 125μm | 127μm | |||
| IP-Rating1 | IP68 | ||||
| Pull Force | 100lbf or 450N | ||||
1 The IP rating was validated using a SENKO sourced cable and procedure. It is recommended to retest IP rating for any other cable types.
