OVERVIEW

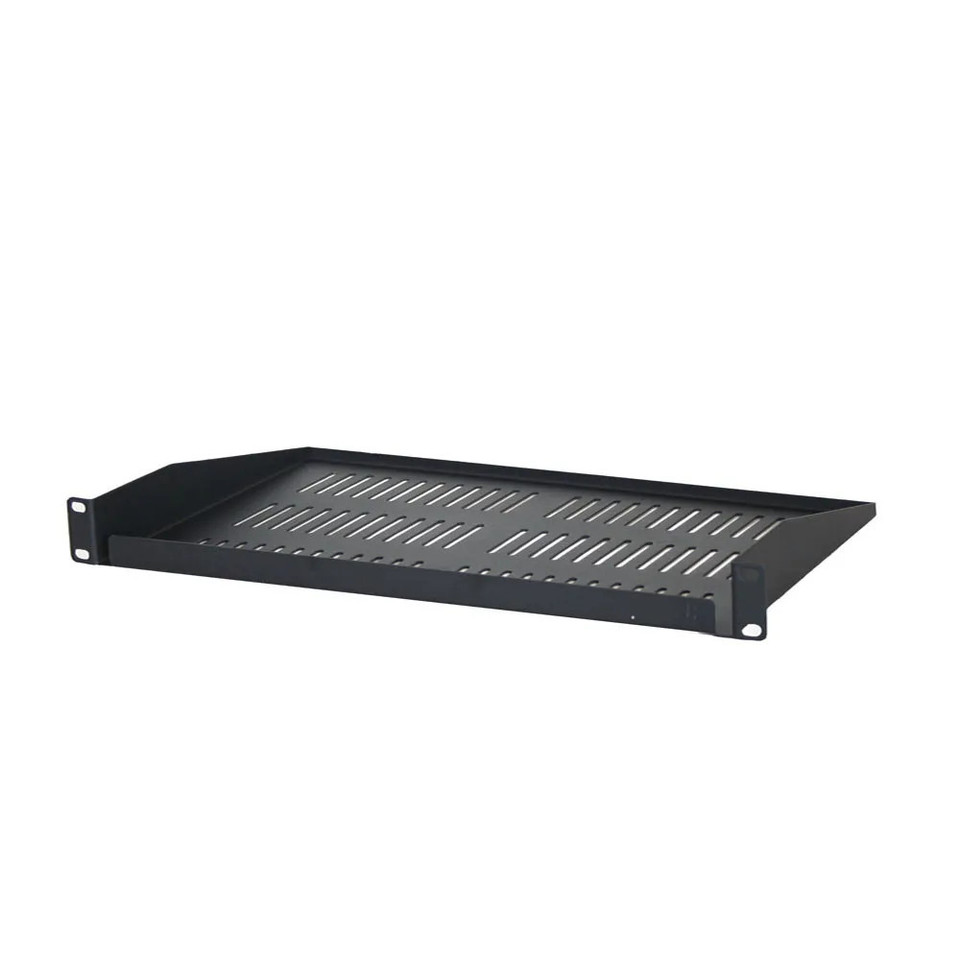

These Single-Sided Vented Shelves are commonly used in both open frame racks and floor enclosures. They are available in depths of 7″ to 18″. The vented design allows equipment heat to escape from the bottom of the shelf while maintaining the integrity of the shelves’ weight capacity. These shelves come complete with a set of #12-24 mounting screws and has a black powdercoat microfinish to match rack and enclosure color.
- 19” rack mountable shelf
- Single-sided design, Fixed-mount
- Vented for better air circulation within the enclosure
- Available in 1U, 2U & 3U rack heights at many depths
- 16AWG Cold Rolled Steel
- Black Powdercoat MicroFinish
- Hardware included (Set of #12-24 mounting screws)
| Part Number | RMS |
Depth | Width | Weight | Load Capacity | Package Length | Package Width | Package Height | Package Weight |
| ES0219-0110 | 1U | 10.5" | 19" | 3.25 lbs. | 15 lbs. | 21" | 11.75" | 2.75" | 3.85 lbs. |
| ES0219-0112 | 1U | 12" | 19" | 3.70 lbs. | 18 lbs. | 21" | 13.75" | 2.75" | 4.40 lbs. |
| ES0219-0115 | 1U | 15" | 19" | 4.40 lbs. | 20 lbs. | 21" | 16.00" | 2.75" | 5.20 lbs. |
| ES0219-0107 | 1U | 7" | 19" | 2.30 lbs. | 12 lbs. | 21" | 10.00" | 3.00" | 3.00 lbs. |
| ES0219-0210 | 2U | 10.5" | 19" | 3.25 lbs. | 22 lbs. | 21" | 11.75" | 2.75" | 3.85 lbs. |
| ES0219-0212 | 2U | 12" | 19" | 4.10 lbs. | 35 lbs. | 21" | 15.00" | 5.00" | 6.00 lbs. |
| ES0219-0215 | 2U | 15" | 19" | 5.10 lbs. | 38 lbs. | 21" | 16.00" | 4.75" | 6.20 lbs. |
| ES0219-0218 | 2U | 18" | 19" | 7.00 lbs. | 40 lbs. | 21" | 19.00" | 5.00" | 7.60 lbs. |
| ES0219-0315 | 2U | 15" | 19" | 5.40 lbs. | 41 lbs. | 21" | 17.00" | 7.00" | 8.00 lbs. |
