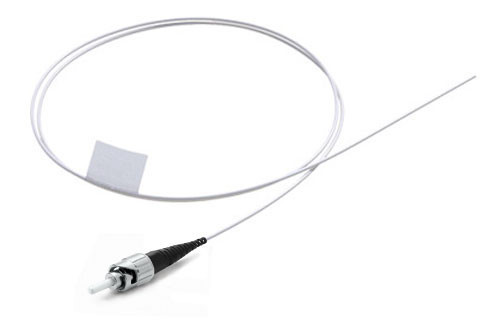

ST/PC Fiber Optic Pigtail, 50/125 Multimode OM4, Tight Buffer 900um

click to zoom in

ST/PC Fiber Optic Pigtail, 50/125 Multimode OM4, Tight Buffer 900um

Item#:
FPT-OM4-ST-1M-BL
List Price: $2.19
$1.46
(You save $0.73 )
Condition:
New
Availability:
7 – 10 Day Lead-Time
Weight:
0.05 LBS
Customer Service

Need Help?

Speak to one of our experts.

ST/PC Fiber Optic Pigtail, 50/125 Multimode OM4, Tight Buffer 900um

ST/PC Fiber Optic Pigtail, 50/125 Multimode OM4, Tight Buffer 900um

List Price: $2.19
$1.46
(You save $0.73 )

ST/PC Fiber Optic Pigtail, 50/125 Multimode OM4, Tight Buffer 900um

List Price: $2.19
$1.46
(You save $0.73 )

With the OM4 Multimode ST Fiber Optic Pigtail, utilize the power of advanced multimode fiber optics with greater bandwidth and transfer distance. This fiber optic pigtail, with the ST connector, is a great option for a number of applications, and especially for fusion splicing.

The ST fiber optic pigtail in OM4 multimode configuration helps you achieve data transfers over a 50/125 micron glass fiber 1Gbps link a distance of up to 1100 meters at a wavelength of 850nm, and a distance of up to 550 meters at 1300nm. For a 10Gbps link, you can transfer data a distance of up to 550 meters at 850nm.

Choose from a selection of 12 colors, including blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua.

All of our fiber optic pigtails are tested to ensure quality and performance that meet industry standards, and the test results for each pigtail are included with your purchase.



OM4 ST Fiber Optic Pigtail Optical Characteristics

Optical Characteristics 50/125 OM4
Maximum Finished Cable Attenuation Coefficient @850nm 3.0 dB/km
@1300nm 1.0 dB/km
Overfill Launch Bandwidth @850nm 1500 MHz.km
@1300nm 500 MHz.km
Laser Bandwidth @850 4700 MHz.km
Gigabit Ethernet Link Length (1 Gbps) 1000 BASE-SX (850nm) 1100 Meters
1000 BASE-SX (1300nm) 550 Meters
Gigabit Ethernet Link Length (10 Gbps) 1000 BASE-SX (1300nm) 550 Meters

OM4 ST Fiber Optic Pigtail Features

  • Simplex Configuration
  • ST Connector
  • OM4 50/125µm fiber glass
  • Riser Rated
  • Available in lengths of 1 to 10 meters
