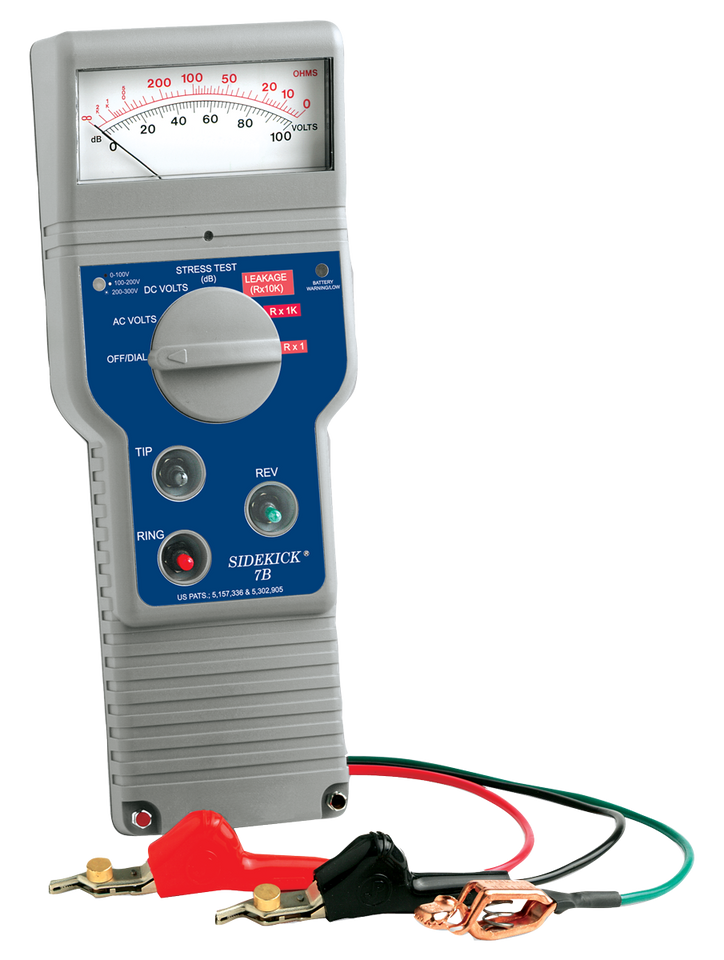

1134-5029 Sidekick® 7B 1
Cat No: 1134-5029
Legacy UPC No: 783310605256
- Determines the stressed noise susceptibility of dry and working pairs
- Measures resistance, AC/DCvolts, and capacitive kick
- Provides tone for twisted pair or crossed conductor identification
- Single setup for testing Tip-Ring, Tip-Ground, and Ring-Ground
- Minimal drying effect in all ranges
- Field replaceable leads
- Softcase with adjustable strand hook
- Low battery indicator light
- Patented – Patent # 6263047
Specifications
| Attribute Name | Attribute Value |
|---|---|
| AC Voltage | 0 - 300 V RMS |
| DC Voltage | 0 - 300 VDC |
| Dimensions | 10.750 IN x 4.250 IN x 2.500 IN |
| Leakage | Rx10K: Reads 0 To 20 MΩ |
| Resistance | Rx1: Reads 0 To 2000 Ω, Rx1K: Reads 0 To 2 MΩ |
| Stress Balance | 0 - 82 dBmC |
| Sub Brand | Sidekick |
| Type | 7B Series |
| Weight | 2.000 LB |
| Item Status Date | 01072005 |
| Country of Origin | US |
