Multilink – Flatdrop with SC/APC TONEABLE Pigtails come as pre-terminated fiber optic runs, in several different lengths, and Strand Counts
Reliable rapid SC/APC connection, in conjunction with Singlemode fiber optics, brings you reliable performance with the best possible reflection loss reduction, thanks to the SC connector's angled polish finish.
Optical Fiber Pigtail Specification
- Product Information
Product Name：SCAPC-Pigtail
Product Model：4 to 12F 4 x 9.3mm-TONED Flat Cable Type
- Product Features
- Low insertion loss
- High return loss
- Excellent endface geometry parameters

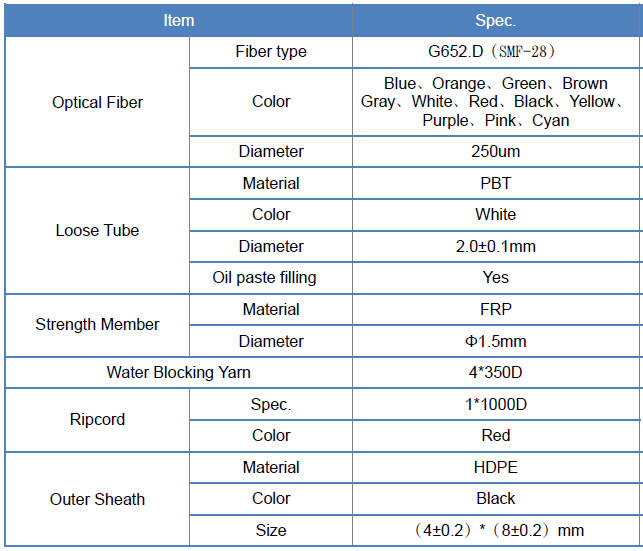

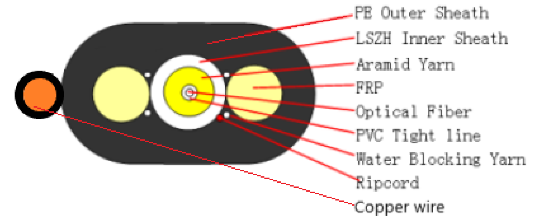

- Cable Specifications

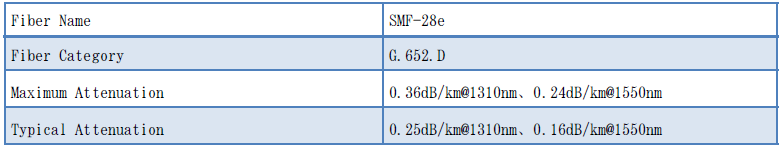

- Optical Characteristics

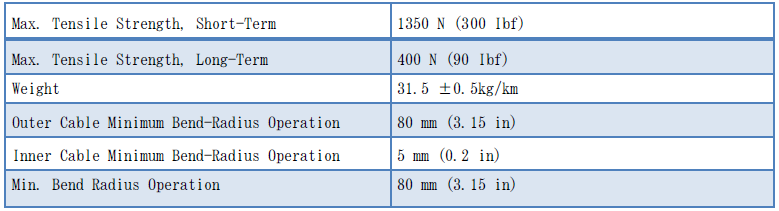

- Mechanical Characteristics of cable

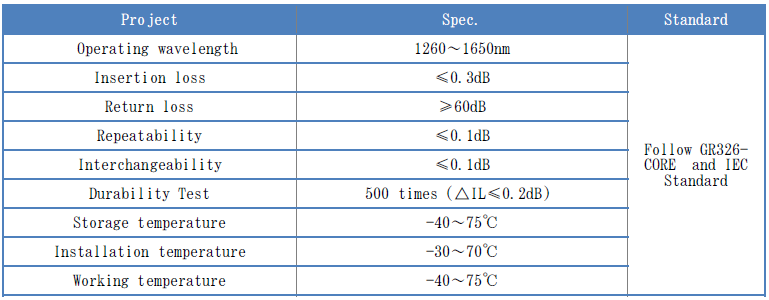

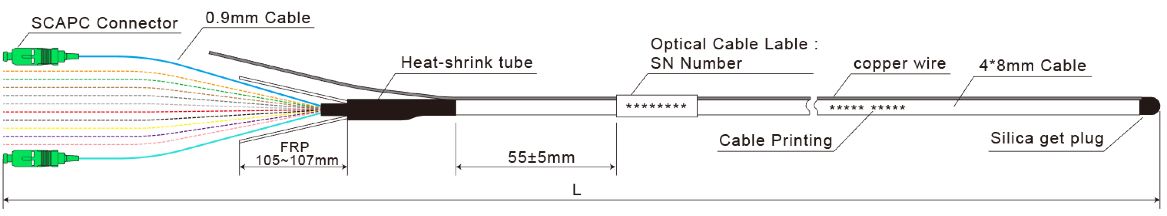

- Optical Pigtail Specifications

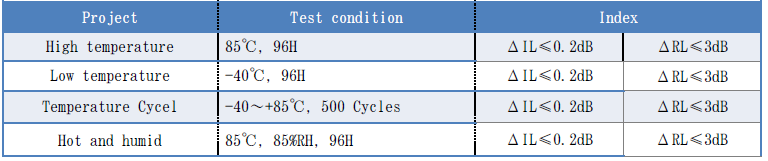

- Environmental Properties of Pigtail

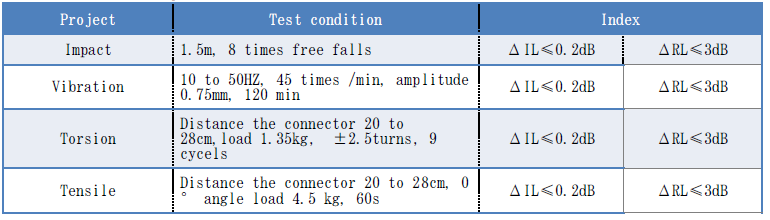

- Mechanical Properties of Pigtail

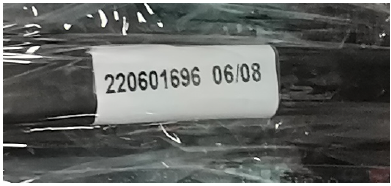

- Labeling
PE material label is used to achieve effective waterproof, oil proof and not easy to fall off. The product serial number is printed on the label to help facilitate product traceability.

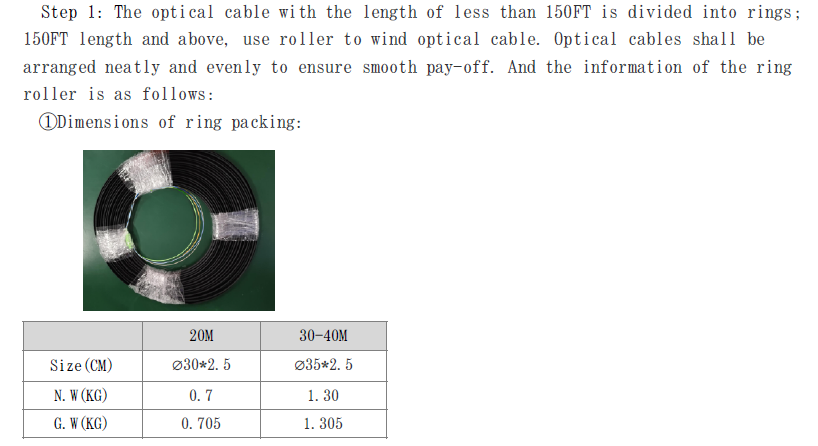

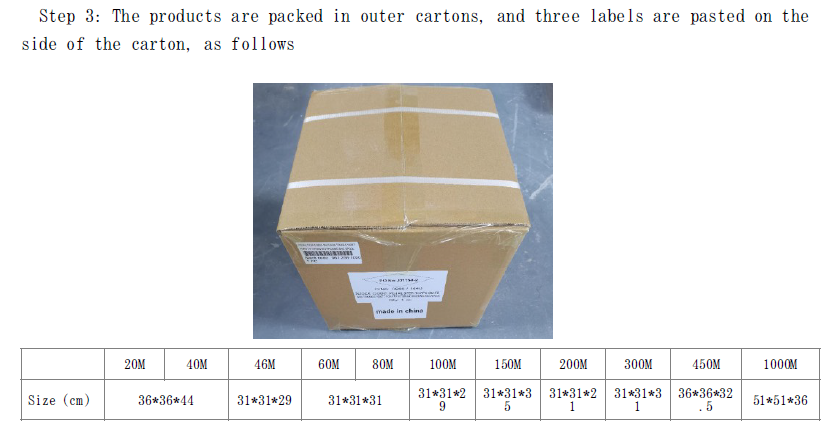

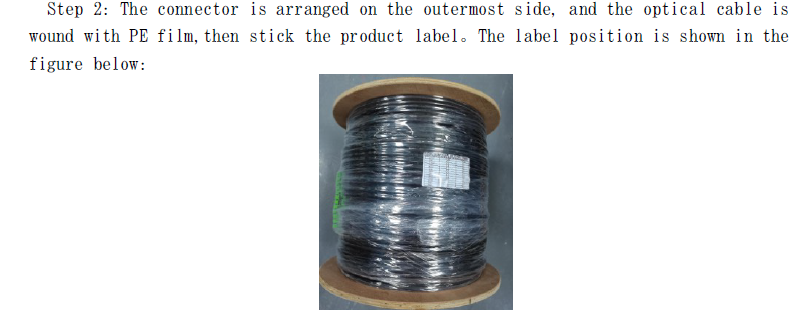

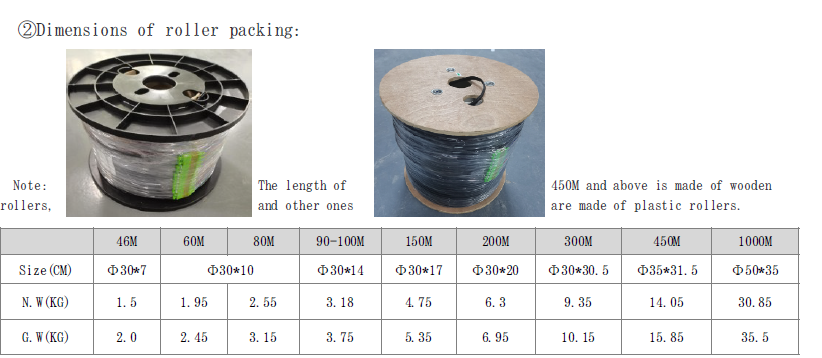

- Packaging
