ZOOM 2 / Laser OWL Test Kits
The Zoom 2 Owl Test Kits come in a variety of configurations. At a minimum, each kit comes with an Optical Power Meter (ZO-2). With the Power Meter, you may choose between an SC or ST connector port option. Each kit will also include at least one OWL Light Source. Two of the kits offer two Light Sources.
- Ideal for all fiber professionals who need basic power / loss measurements
- Test reports not required
- Multimode and singlemode options available
Kit Overview Features
The Silicon ZOOM 2 (Zeroed Output Optical Meter) is an economical fiber optic power meter designed to provide
accurate testing of multimode fiber cables at 850nm wavelength. The 4-digit 7-segment LCD display shows power readings with a resolution of 0.01dB, power units in dBm, dB, or uW, and battery power level. The Silicon ZOOM 2 comes
configured with a 2.5mm universal port for connection to SC, ST, and other connector types that have a 2.5mm ferrule.
OWL Light Source. Whether is is a Dual OWL 850nm, Dual OWL 850/1300nm, Laser OWL 1310nm, Laser OWL 1310/1550nm, OWL manufacturers a complete line of high-quality and accurate, yet affordable, multimode LED fiber optic light sources. These light sources can be bundled with an OWL optical power meter for applications ranging from simple optical loss to full standards-based fiber link certification.
Features
- Multimode
- Wavelength configurations: 850nm, 1300nm, or both 850/1300nm
- Dual-wavelength ports allow automatic wavelength switching
- One wavelength per port
- SC and ST connector options available
Kit Contents:

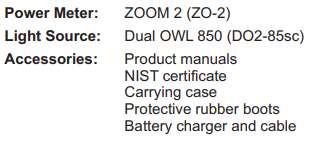

KIT-Z2-D285SC
KIT-Z2-D285ST
KIT-Z2-D2SC
KIT-Z2-D2ST

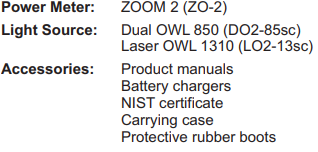

Power Meter: ZOOM 2 (ZO-2)
Light Source: Laser OWL (LO2st)
Accessories: Product manuals
Battery Chargers
NIST certificate
Carrying case
Protective rubber boots
KIT-Z2-D285xx-L213xx (SC option shown)
KIT-Z2-L2xx (SC option shown)
KIT-Z2-D2xx-L2xx (SC option shown)
