Product Description
This S09MD16CZNPY24 TLC Micro-Distribution Data Center Cable combines high fiber counts with a compact, space saving design.

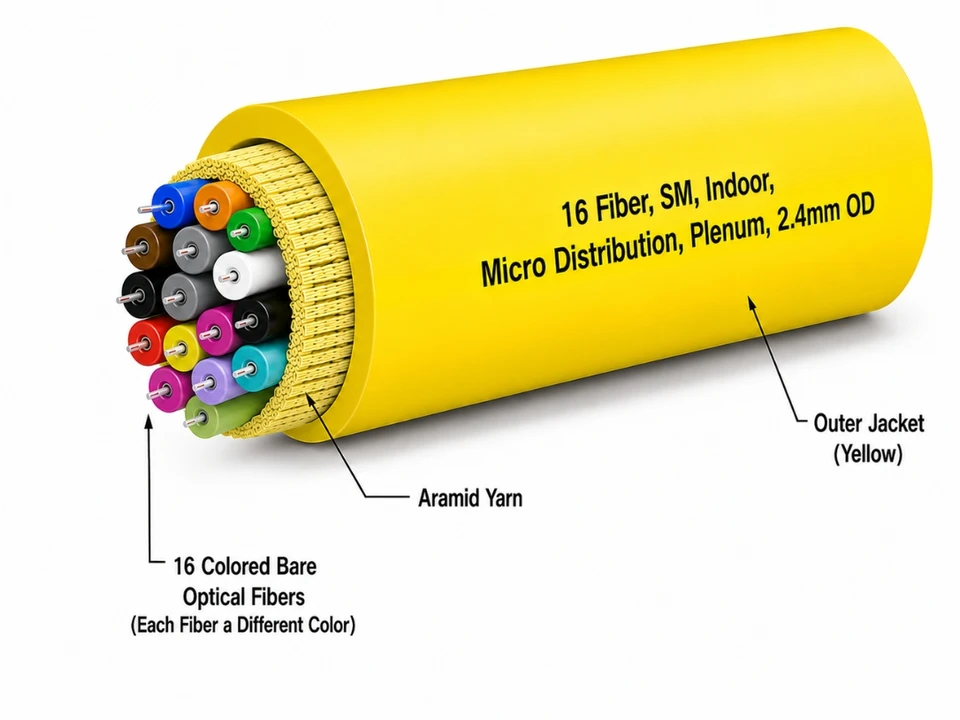

The Light Connection, Inc. 16-192 fiber Micro Distribution Cable is composed of single tube or a central member (if applicable), aramid yarn, an aramid ripcord, and a PVC outer jacket. Each buffer tube consists of 16 colored glass fibers surrounded by aramid yarn with a PVC jacket 2.40mm in diameter. All component materials meet the EU RoHS and REACH Directive standards. Buffer tubes may be color-coded or sequentially numbered.
This 16 fiber, SingleMode cable is rated for an indoor campus environment. It is a micro distribution, Data Center High Density, Plenum rated cable, jacketed in Yellow with a 2.40mm OD.
FEATURES
- Glass Type: Corning® ClearCurve® SM
- 250µm colored bare fibers
- 16 bare fiber per subunit up to 192 fiber constructions
- UL 1666(Riser) and NFPA 262(Plenum)
- Available in all fiber types
- Meets the application requirement of National Electric Code (NEC) Article 770 and are OFNP - rated.
Applications
- Plenum
- Data Center Assemblies
