Product Description

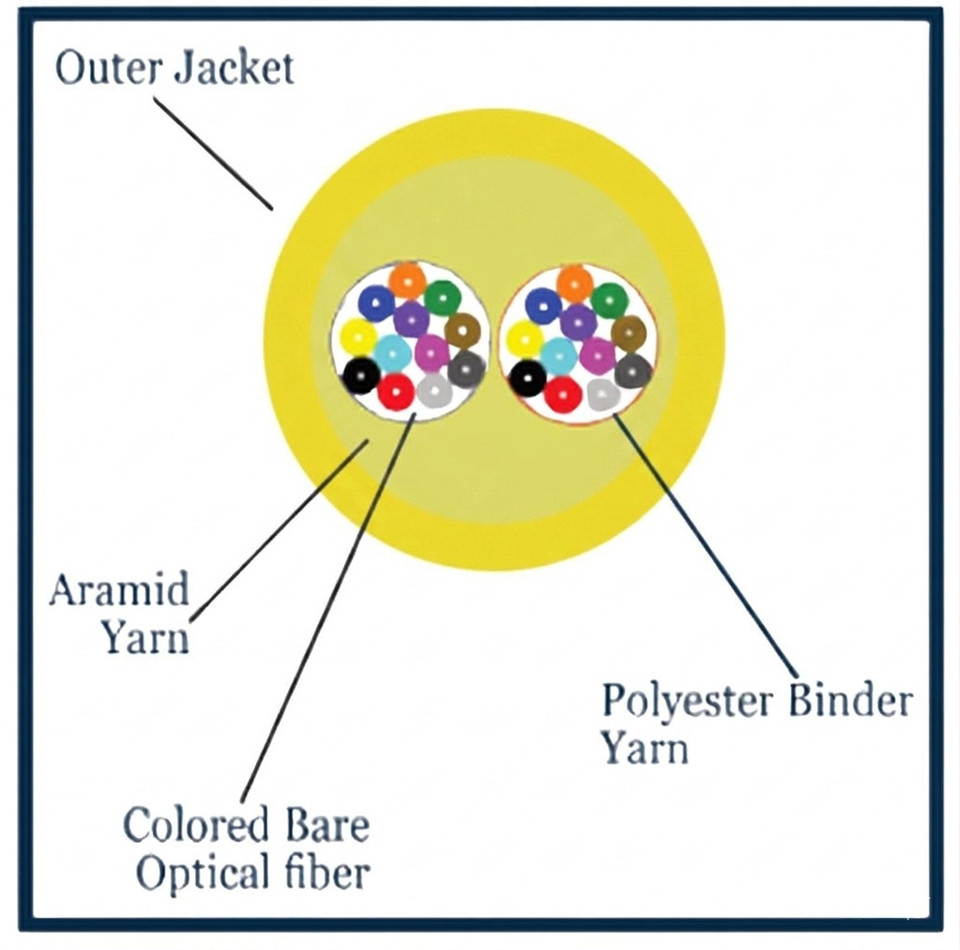

The Light Connection, Inc. S09HD24CZNPY38 High Density Micro Distribution Cable is composed is composed of two contrasting color bound bundles of 12 colored glass optical fibers, aramid yarn, and a PVDF outer jacket. All component materials meet the EU RoHS and REACH Directive standards. TLC High Density Micro Distribution Cable is available in 12 TIA standard colors or special-order colors. UL Listed OFNP cables are available, unrated cables may be supplied to accommodate special needs. Standard surface print denotes construction, NEC rating and fiber type, and includes footage markers. Custom print may also be accommodated.
This 24 fiber, Singlemode cable is rated for an indoor campus environment. It is a Data Center High Density, Micro Distribution, Plenum rated cable, jacketed in Yellow with a 3.8mm OD.
FEATURES
• 250µm colored bare fibers
• Small O.D. for tight spaces
• NFPA262(Plenum)
• Available in all fiber types
• Meets the application requirement of National Electric Code
(NEC) Article 770
Applications
- Plenum
- Data Center Assemblies
Flame Rating
- NFPA 262
