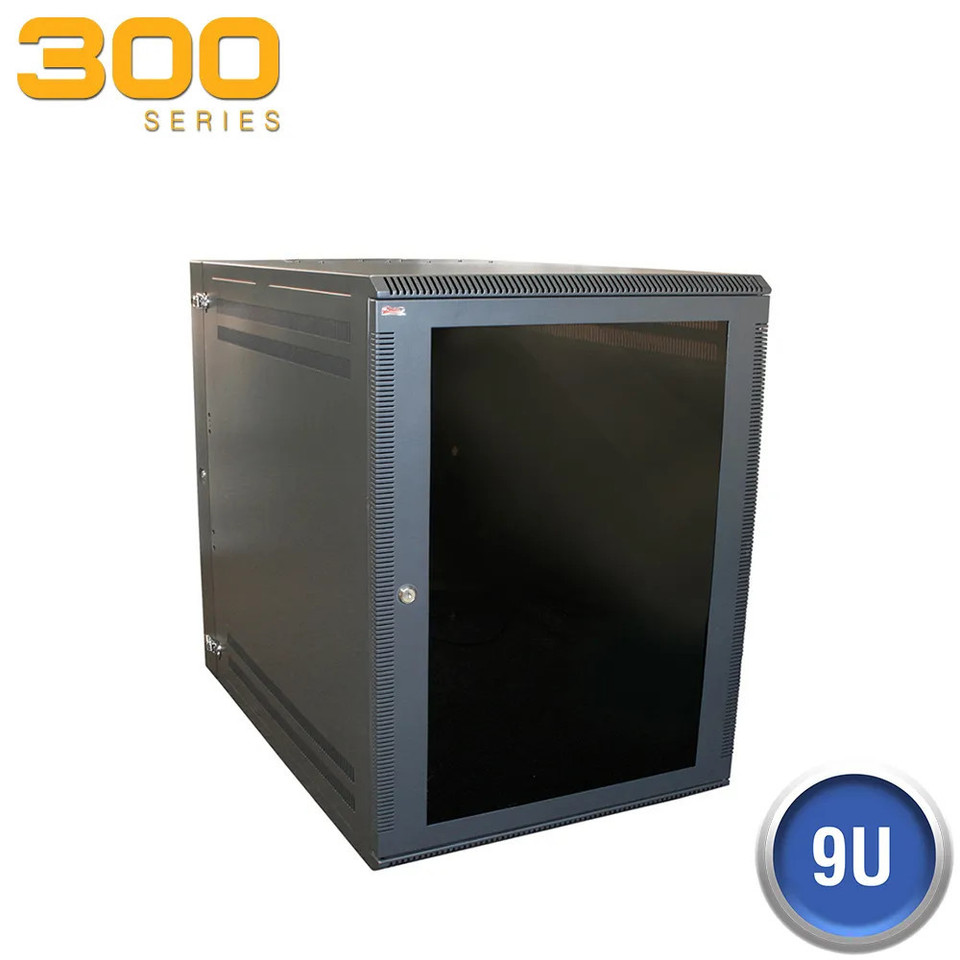

300 Series Wall Mount Enclosure. The 300 Series wall cabinets feature a swing-out design which provides access to component rear panels. The rear support mounting section is made with 16 AWG steel which permits cabinet to be opened without sagging, even fully loaded.

Product Features

• Structure: Cold-Rolled Steel - 16 AWG rear support mounting section and 20 AWG structure
• Rails: Laminated Steel - 16 AWG / Tapped
• Front Door: Smoked Acrylic Door, Steel Frame
• Key Lock Paint: Electrostatic Microfinish

Specifications

• 19'' rack-mount equipment
• EIA Spaced #12-24
• 9 RMS
• 18' Overall Height
• 20.5'' Overall Width
• 20'' Overall Depth
• 50LBS Load Capacity
