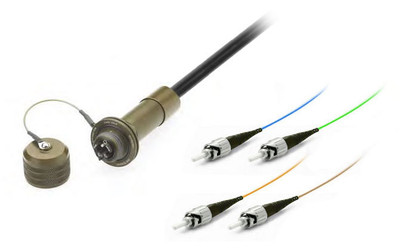

COTS-83526 Features

• Superior performance with protection from the elements. At the heart of this robust family of tactical hermaphroditic fiber optic connectors is the environmentally sealed terminus system, which maintains superior optical performance while resisting dust, moisture, or even liquid submersion, meeting IP-68 requirements.
• Easy, quick connections. The field-convertible plug allows the plug to be converted to an in-line receptacle or back to a plug within seconds. This enables plug-to-plug assemblies to be connected end-to-end without regard for which end starts out as male or female. The internal "push-pull" system allows operators to terminate and assemble COTS-83526 plug and receptacles with ease. Unlike competitive products that require O-rings and snap clips, the COTS-83526 design essentially decreases the time and effort required for assembly.
• Smart construction for ease of use. The environmentally sealed terminus system allows proper alignment of the 2.5mm ceramic ferrules. This termini is corrosive-resistant, genderless (can be either pin or socket), and easily inserts at 90° angles to the termini retainer. In addition, the insert cap having captivated ceramic alignment sleeves prevents them from becoming misplaced during routine maintenance.

Cable Features

• Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for military tactical field use and commercial applications
• Polyurethane jacketed for abrasion, cut, crush, impact, and chemical resistance
• Breakout cable design with individual color-coded subcables protecting each optical fiber
• Crush resistant and resilient
• Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
• Cables have been tested and are in use in military data communications applications worldwide
• Excellent for use in deployment/retrieval applications
• Can be used Outdoors for temporary deployment directly on the ground in all terrains, including severe environments
• Suitable for industrial, mining and petrochemical environments - chemical resistant
• Round cable design for easy installation and survivability
• Ideally suited for use with MIL-C-38999 style military connectors - subcables terminate to individual "pins" and overall aramid strength member terminates to backshell
• 2.0 mm subcables standard
• Tactical Polyurethane (C) outer jacket material is standard. Flame retardant (E), Flame retardant tactical (V) and low smoke zero halogen (G) outer jacket materials are available

Applications

• Ship-to-Shore Communications Umbilical Connect
• Mobile Emergency Telecommunications Stations
• Mobile Tactical Shelters
• U.S. Army, Navy, and Marine Corps Military Tactical Deployments
• Broadcast
• Oil and Gas Industries
