SRK ELECTRONIC RACK SERIES
SRK Electronic Rack Series is an extremely heavy-duty product line capable of handling 3,500 lbs. It is made to
organize and securely store rack mountable electronics and other items such as test and measurement equipment.
With adjustable mounting rails, SRK Electronic Racks provide flexibility to change the rail depth in 10

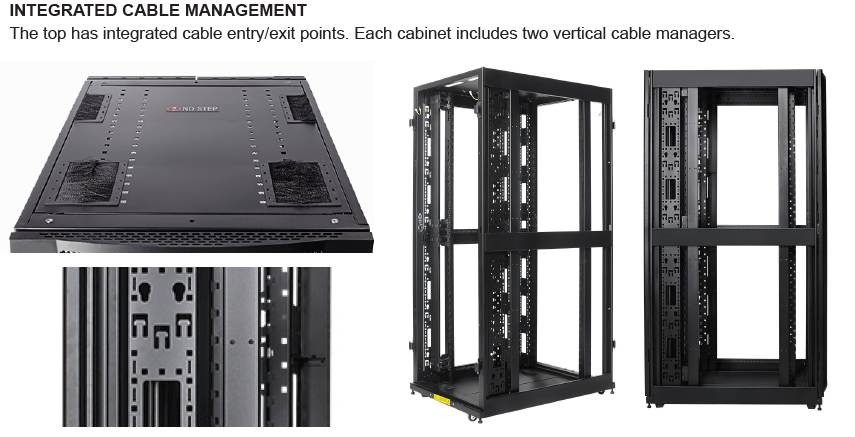

mm increments. Additional space in the rear allows for cables to be run vertically without disrupting airflow. The
doors are removable for easy access to the inner rack. The entire product will ship as configured, there is no
assembly required.

Use & Benifits

• This cabinet has been designed specifically to mount or stack your test and measurement equipment with ease.
• This heavy-duty product line protects sensitive electronic systems used for the analysis, testing, and validation of mechanical and electronic equipment.
• Select from a variety of standard components and then add accessories to build exactly what is required a specific test application.

FEATURES

• Available in four heights; 36U, 40U, 42U, and 45U
• 19” EIA mounting in a slim overall width of 22.50”
• Two depths (without doors) available; 31.50” and 36.80”
• Locking front and rear doors
• Front door with perforation for airflow
• Plated Tapped mounting rails are adjustable front to rear
• Solid bottom panel with knockouts for access
• Grounding kit and baying hardware includedLevelers and heavy-duty casters are standard
• Full range of optional accessories
• Other color choices available upon request
• Mounting hardware included
