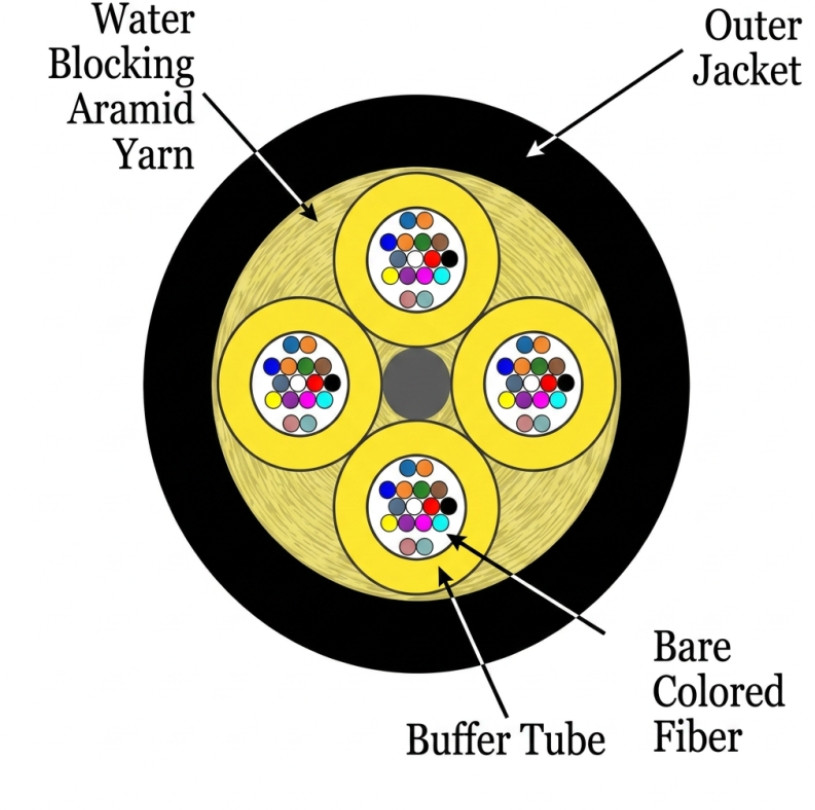

The Light Connection, Inc. Dry Loose Tube Cable is composed of one to six buffer tubes, solid filler rods(where applicable), water blocking aramid yarn, central strength member (24 fiber and above), an aramid ripcord, and a PVC outer jacket. Each buffer tube consists of 2 to 12 colored optical fibers and water-swellable yarn with a PVC jacket 2.5mm in diameter. All component materials meet the EU RoHS and REACH Directive standards. Buffer tubes may be color-coded or sequentially numbered.
This TLC S09DL48CZNPBL25 - 48 Fiber Dry Loose Tube Indoor-Outdoor, SM, Plenum cable is available in carbon black or special-order colors (including 12 TIA standard colors). UL Listed OFNP cables are available, and unrated cables may be supplied to accommodate special needs. Standard surface print denotes construction, NEC rating, fiber type, and includes footage markers.
This 48 fiber, SM cable is rated for an indoor/outdoor campus environment. It is a micro distribution, Data Center High Density, Plenum rated cable, jacketed in Black with 8.5mm OD - 2.5mm subs.
FEATURES
- Glass Type: Corning® SMF-28® Ultra
- Gel-Free waterblocked design
- 2-72 Fiber count
- Plenum (OFNP) NFPA 262 (UL 910)
- Available in all fiber types
- Meets the application requirement of National Electric Code (NEC) Article 770 and are OFNP - rated.
Applications
- Plenum
- Duct
- Indoor/Outdoor
