OCC, BX, Breakout Series, 4-Strand, 2.5mm, Tight Buffered, Indoor/Outdoor, Broadcast Rated, OS2, 9/125, Singlemode, Black Jacket, Low Water Peak Mining, 1,000 Feet

Item#: BX004CSLX9KB


134.96 LBS

Minimum Qty:  1,000 ft
Total Footage: 1,000 ft
Additional Feet:
x 2.76 per/ft
Customer Service

Need Help?

Speak to one of our experts.

  • Outdoor, field proven cables are easily deployed and retrieved for remote news gatherings and sporting events
  • Water-resistant and UV-resistant for extreme environments
  • Lightweight Riser and Plenum cables are ideally suited for stadium and arena venues for video-on-demand applications. Interlocking armor cable options also available for stadium and arena venues
  • High tensile load rating for quick deployment and retrieval
  • Excellent crush resistance to withstand crowd and vehicle traffic
  • Cables are suitable for use with single, as well as, multichannel connectors

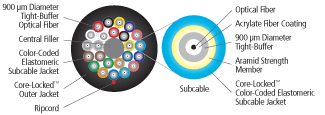

  • Helically stranded cable core for flexibility, survival in difficult pulls, and excellent mechanical protection for the optical fibers
  • Breakout Broadcast fiber optic cables are immune to electro-magnetic and radio frequency interference
  • 2 to 24 fibers, higher fiber counts are available on request
  • Broadcast cables made in a variety of colors for easy identification or to blend in to the environment

Note: This item may require 24 hours for cut and prep before shipping.

Field Riser Plenum (S Jacket) Plenum(K Jacket)
Operating Temperature -55°C to +85°C -40°C to +85°C -20°C to +85°C -40°C to +85°C
Storage Temperature -70°C to +85°C -55°C to +85°C -40°C to +85°C -40°C to +85°C
Crush Resistance 440 N/cm 1,800 N/cm 1,500 N/cm 1,500 N/cm
Impact Resistance 200 impacts 1,500 impacts 1,000 impacts 1,000 impacts
Flex Resistance 2,000 cycles 2,000 cycles 1,000 cycles 1,000 cycles
These specifications are subject to change without prior notification.
