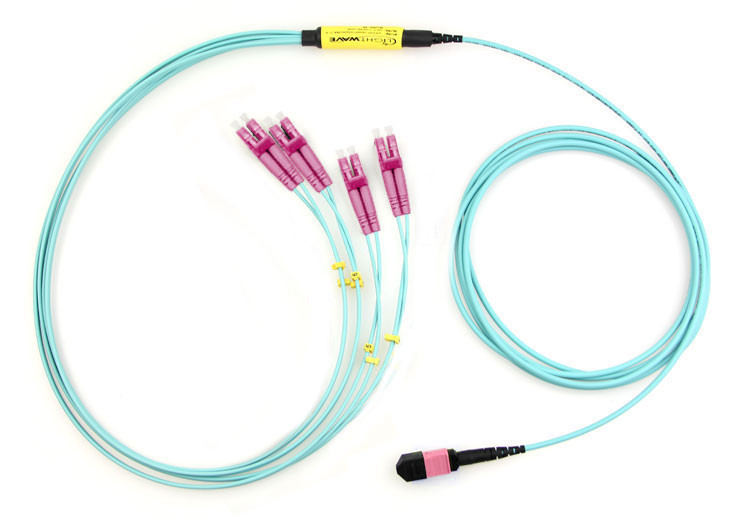

Breakout Cable, 8 Fiber MTP Elite®/UPC(F) - Duplex LC/PC, 8 Fiber, 50/125 OM4, OFNP, Indoor 3mm, Aqua, 2 Foot 2mm OD Fanout

The LightWave OM4 8-Fiber USConec 8 Fiber MTP Elite®/MPO to (8) Senko Premium LC Duplexed Connectors Fiber Optic Fanout Cable was designed to address the two main concerns of data centers: increasingly demanding bandwidth requirements, and decreasingly available cable volume space. The result is a compact, time and money saving cable that helps you get the job done faster and more efficiently.

On one end, the cable has an MTP Elite® brand connector, housing 8 fibers, which breaks out to (8) Senko Premium LC connectors in duplex configuration. Like the MTP Elite® brand connector, the LC connector is also known for its space-saving capabilities. These two connector styles, together in the same cable, increase density and data throughput.

Using OM3 fiber optics with this cable, you can transfer data over a 50/125 micron 1Gbps fiber link a distance of up to 1000 meters at a wavelength of 850nm, or a distance of up to 550 meters at a wavelength of 1300nm. On a 10Gbps link, you can transfer data a distance of up to 300 meters at 850nm.

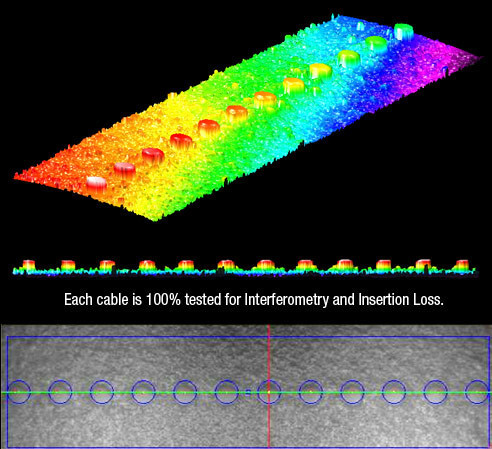

All LightWave brand fiber optic patch cables, including this MTP-LC fiber optic cable, are assembled to meet and exceed industry performance standards. Each product is individually tested to make sure you receive the highest possible quality, and the results of each test are included with the product.

LightWave brand MTP Cables are fully compliant with the guidelines of the Trade Agreements Act (TAA), and are approved for United States Government use.

The MTP Elite® - MPO difference

MTP Elite® brand connectors are an undeniable improvement over generic MPO-style connectors. Sporting removable housing, the MTP Elite® brand connector allows you to re-polish or rework the MT ferrule as needed, so that you are able to get the most accurate possible connection and lowest possible return loss.

MTP-LC Fiber Optic Cable Features

• 8 fibers in a 3.0mm OD Jacket
• (1) MTP Elite® connector
• fans out to (8) Senko Premium LC connectors
• Plenum-rated aqua jacket
• hard copy of test results

Specifications

• Multimode 50/125µm OM4 fiber glass
• 8-Fiber count
• Nominal Diameter: 3.0mm
• Weight: 6.0 lbs
• Bend Radius: 1.8in (Installation), 1.2in (Long-term)

Optical Characteristics

Each cable order includes:

• Hard copy of test results for each cable
• CD with digital copy of test results for each cable
• "Peel & Place" Fiber Optic Selection Guide
• Logo Sticker

MTP® is a registered trademark of US Conec Ltd.
