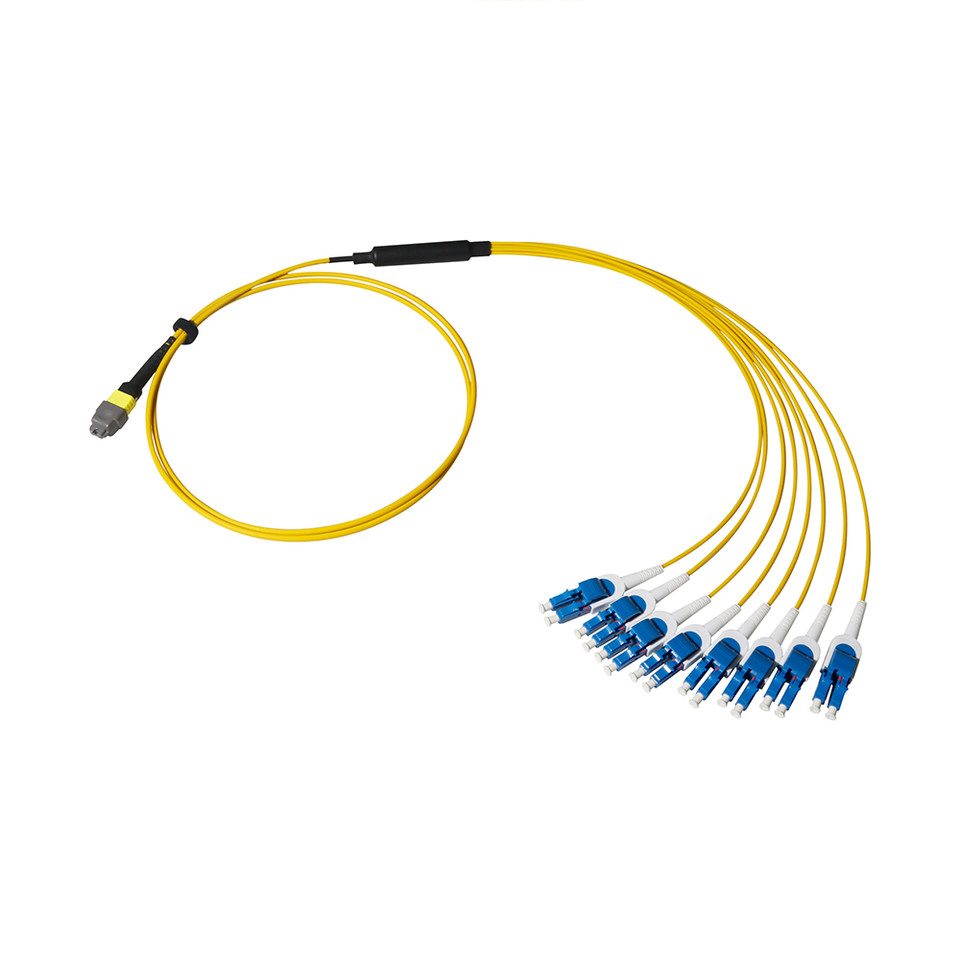

Breakout Cable, MTP® 16 Elite/APC to LC EZcon Uniboot, OS2 Singlemode 9/125 Micron, 16 Fiber

Breakout Cable, MTP® 16 Elite/APC to LC EZcon Uniboot, OS2 Singlemode 9/125 Micron, 16 Fiber

Item#:
MTF-LCU-16-OS2-001MB
List Price: $148.22
$98.81
(You save $49.41 )
Availability:
Made To Order, Normal lead-time 15 - 21 Days ARO
Weight:
0.25 LBS
Bulk Pricing:
Buy in bulk and save
Customer Service

Need Help?

Speak to one of our experts.

Breakout Cable, MTP® 16 Elite/APC to LC EZcon Uniboot, OS2 Singlemode 9/125 Micron, 16 Fiber

Breakout Cable, MTP® 16 Elite/APC to LC EZcon Uniboot, OS2 Singlemode 9/125 Micron, 16 Fiber

List Price: $148.22
$98.81
(You save $49.41 )

Breakout Cable, MTP® 16 Elite/APC to LC EZcon Uniboot, OS2 Singlemode 9/125 Micron, 16 Fiber

List Price: $148.22
$98.81
(You save $49.41 )

MTP®/MPO Fanout Cable Assemblies

MTP® 16 Elite Female to LC EZConn Uniboot Female, 16 Strand, Corning G657A1 Singlemode 9/125 Micron, OFNP Yellow Jacket

MTP® Connectors

US Conec offers a full suite of MTP® brand MPO connectors and solutions for a variety of applications and operating environments. The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

LC Duplex Connector

The Original LC designed connector gives the maximum value for cost. Using high quality components, this connector meets IEC, TIA/EIA and the general requirement of GR-326. The LC Premium Unibody Connector molded with a Single body delivers maximum strength against mechanical tests including side loading test and TWAL tests. Manufactured to the highest standard, the LC Unibody connector is designed to meet and exceed the Verizon FOC TPR requirement and designed for the usage for the OSP application or where customers needs the highest quality product.

Precision Optical Components

At the heart of every fiber to fiber and fiber to device interconnect is a precision optical interconnect component.  US Conec is dedicated to driving the next generation of optical links from source to detector by utilizing state of the art precision component design, metrology and manufacturing to produce low loss, cost effective ferrules and optical components optimized with the entire link in mind.  Sub-micron component modeling, design, production, measurement and testing are at the heart of US Conec’s engineering focused approach to solving real world communication problems every day.

Precision optical interconnect solutions include:

  • Low-loss, MT Elite® multi-fiber ferrules
  • LC Duplex ferrules
  • FTTx hardened connector cabling infrastructure
  • MTP® brand MPO cable assemblies
  • Optical backplane connectivity for OBO architectures
  • Standards Compliance IEC 61754-5
  • Standards Compliance IEC 61754-7-1; 61754-7-2
  • Standards Compliance TIA 604-5

Specifications

  • Simplex 3.0mm cable
  • 9/125um OS2 Corning G657A1 Glass
  • Plenum-Rated OFNP Yellow Jacket
  • 16-Fiber count
  • Nominal Diameter: 3.0mm
  • Bend Radius: 1.8in (Installation), 1.2in (Long-term)

Connector Side A

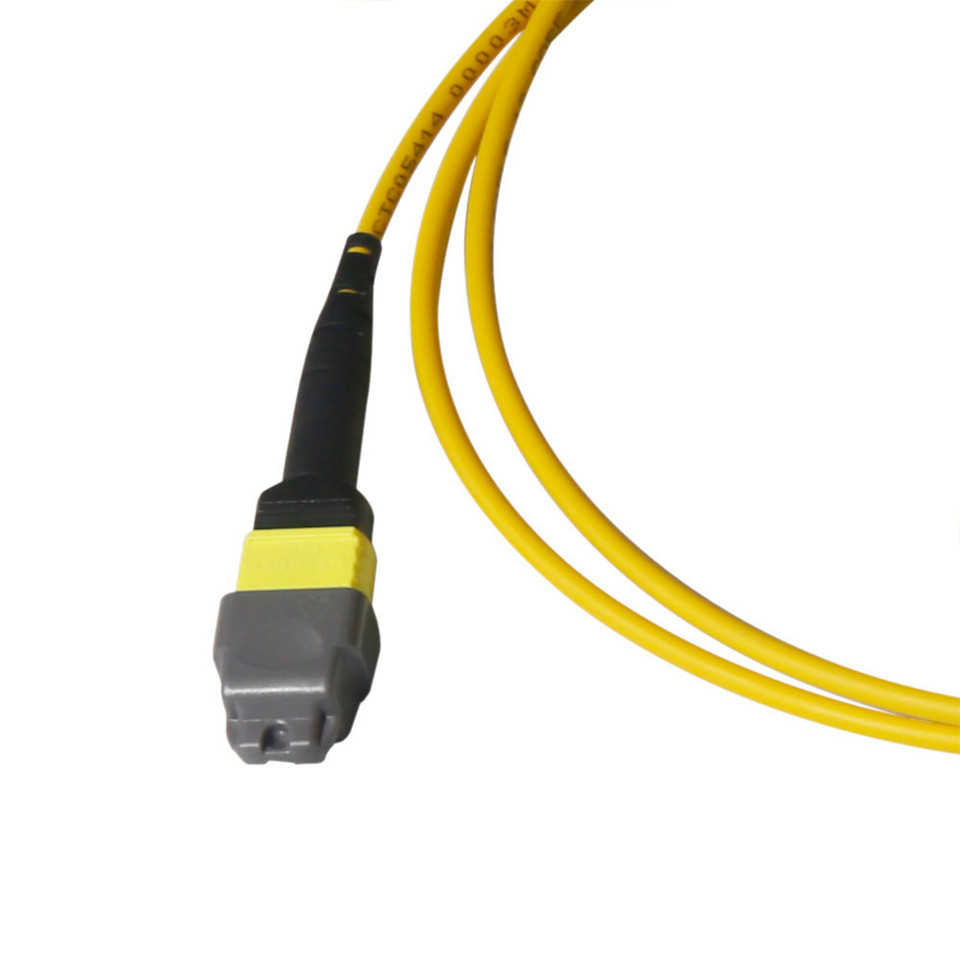

MTP/APC Elite Low Loss 16 Fiber Connector Side B

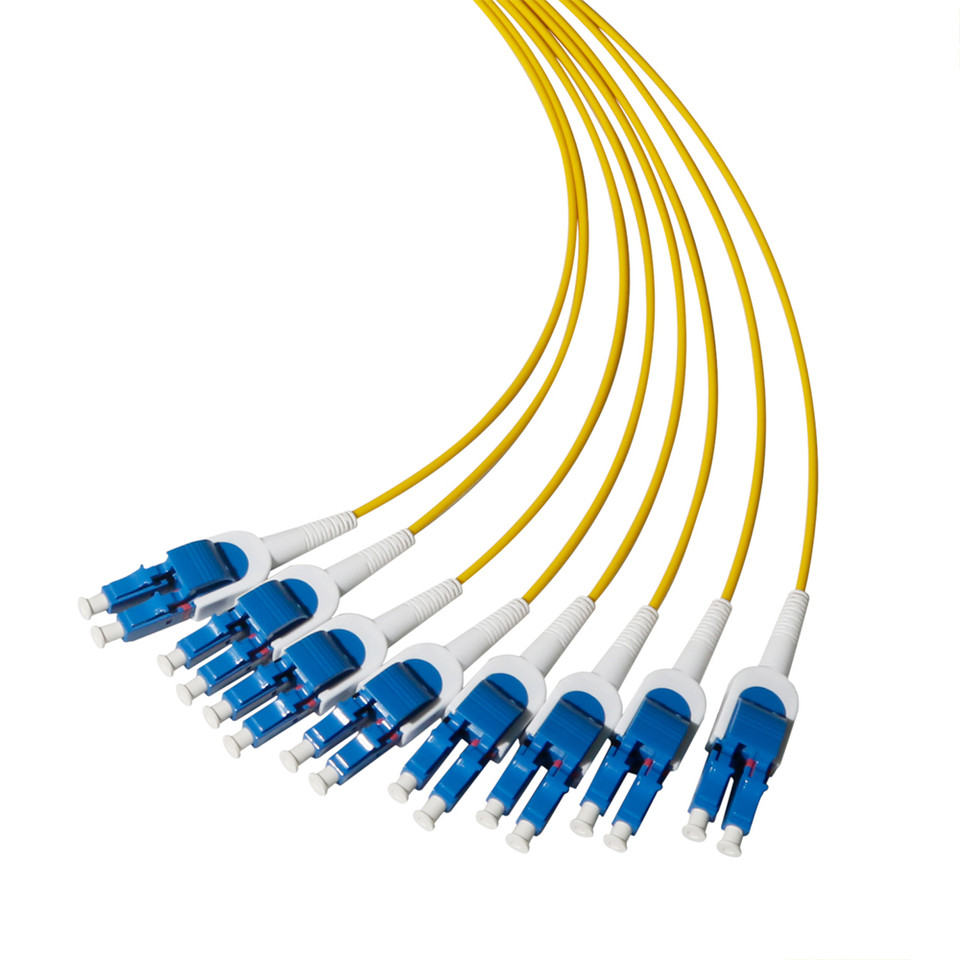

(8) LC EZConn Uniboot

Ferrule Type Side A

Connector side A

Ferrule Type Side B

Connector side BConnector side BConnector side BConnector side BConnector side BConnector side B

Connector side BConnector side B

Insertion Loss Maximum Side A
≤0.35dB Insertion Loss Maximum Side B
≤0.20dB
Insertion Loss Typical
0.10dB Insertion Loss Typical
0.08dB
Return Loss ≥60dB Return Loss ≥60dB
===============
==================== ==================
==================
Cable Type
OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 16 Fiber Grade G.657.A1 (Compatible with G.652.D)
Polarity Type A, B & C available Cable Outer Diameter 3.0mm
Cable Jacket OFNP Plenum Sub Unit Outer Diameter N/A
Bend Radius, No Load
10x cable overall diameter Bend Radius, Load
15x cable overall diameter
===============
==================== ==================
==================
Wavelength
1 Gb Distance Max.
Wavelength
10 Gb Distance Max.
1310nm > 25,000 Meters 1310nm 10,000 - 25,000 Meters
1550nm > 40,000 Meters 1550nm 40,000 Meters
Operating Temperature 0° to 70°C (32° to 158°F) Storage Temperature -40° to 70°C (-40° to 158°F)
